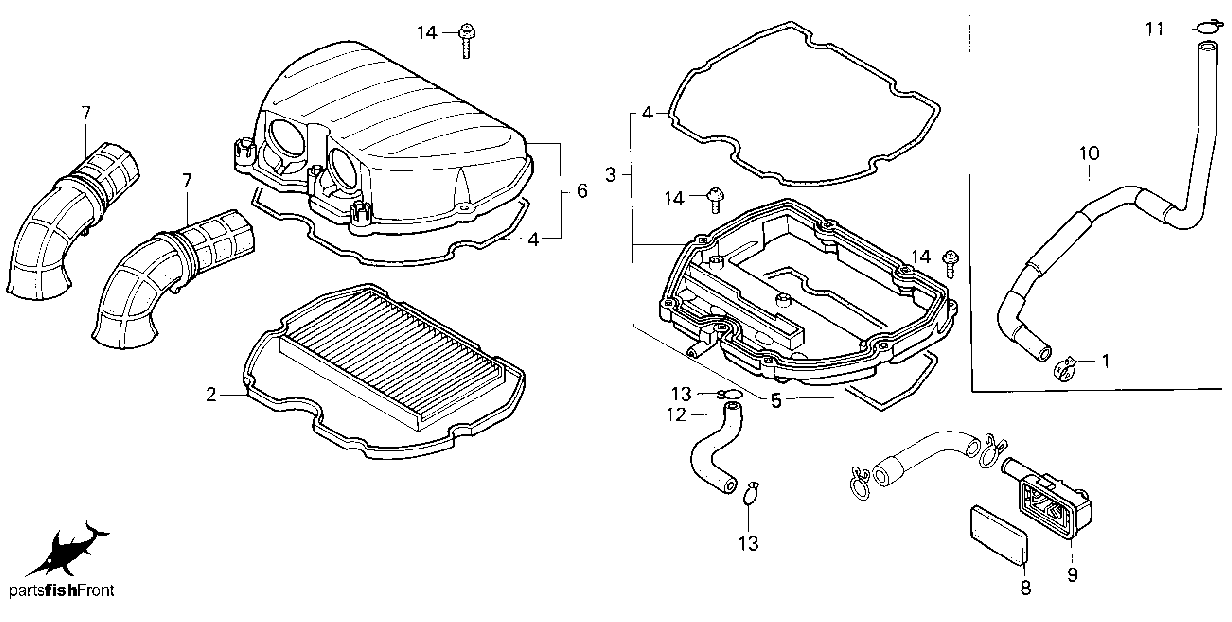

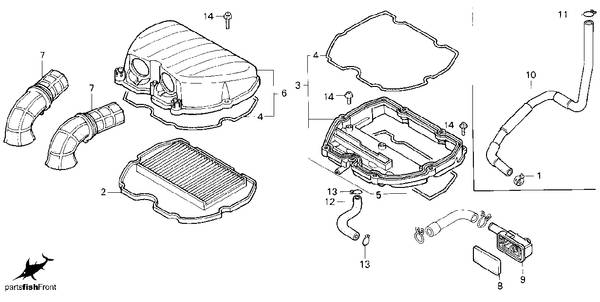

1993 Honda CBR 600 F2 partsfiche
919293949596 air cleaner f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| CLIP B, FUEL HOSE
| 16968-MC7-000
| $3.35
|
| 2
| ELEMENT, AIR CLEANER
| 17210-MV9-003
| $34.46
|
| 3
| HOUSING, AIR CLEANER
| 17221-MV9-003
| $98.22
|
| 4
| SEAL, A/CLNR HSG
| 17222-MV9-300
| $3.42
|
| 5
| SEAL, A/CLNR HSG
| 17223-MV9-300
| $2.71
|
| 6
| COVER, AIR CLEANER
| 17231-MV9-003
| $121.43
|
| 7
| DUCT
| 17251-MV9-003
| $19.48
|
| 8
| FILTER, SUB A/CLNR
| 17254-KAZ-000
| $2.03
|
| 9
| CASE, SUB A/CLNR
| 17256-MT4-000
| $15.28
|
| 10
| HOSE, AIR SUCTION
| 17460-MV9-770
| $27.25
|
| 11
| CLIP, BREATHER TUBE
| 17554-MB0-000
| $1.68
|
| 12
| TUBE A, BREATHER
| 17554-MV9-000
| $6.65
|
| 13
| CLIP, SUB-TANK HOSE
| 17724-102-700
| $1.91
|
| 14
| SCREW-WASHER (5X16)
| 93891-05016-07
| $0.45
|
