1993 Honda CBR 600 F2 partsfiche

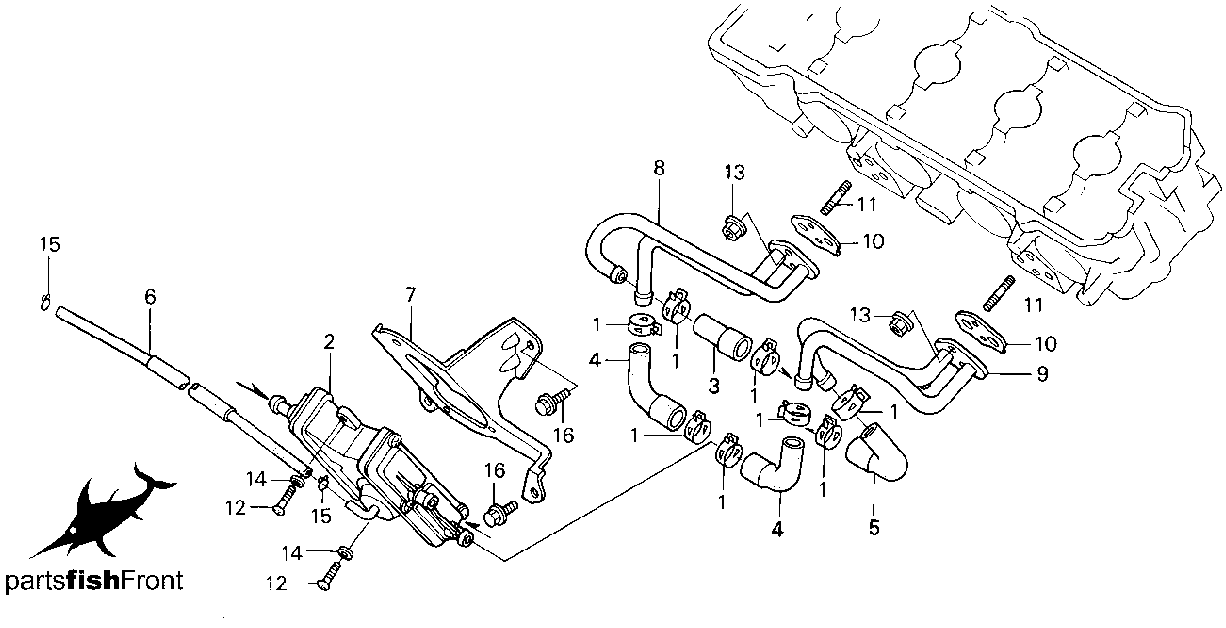

919293949596 air suction valve ac
| no. | description | part number | list price
|
|---|
| 1
| CLIP B, FUEL HOSE
| 16968-MC7-000
| $3.35
|
| 2
| VALVE, AIR SUCTION
| 18600-MT6-732
| $98.60
|
| 3
| TUBE, AIR PIPE
| 18614-MV9-770
| $7.26
|
| 4
| TUBE, AIR PIPE
| 18615-MV9-770
| $10.68
|
| 5
| TUBE, AIR PIPE
| 18616-MV9-770
| $10.42
|
| 6
| TUBE
| 18617-MV9-770
| $19.60
|
| 7
| BRACKET COMP.
| 18625-MV9-770
| $25.55
|
| 8
| PIPE COMP., R. AIR
| 18641-MV9-770
| $51.35
|
| 9
| PIPE COMP., L. AIR
| 18642-MAL-770
| $47.42
|
| 10
| GASKET
| 18645-MV9-770
| $2.51
|
| 11
| BOLT, STUD (6X18)
| 90033-MV9-770
| $2.28
|
| 12
| SCREW, PAN (5X18)
| 93500-05018-0A
| $0.34
|
| 13
| NUT, FLANGE (6MM)
| 94050-06020
| $0.62
|
| 14
| WASHER, SPRING (5MM)
| 94111-05000
| $0.35
|
| 15
| CLIP, TUBE (B7)
| 95002-02070
| $0.57
|
| 16
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.54
|
