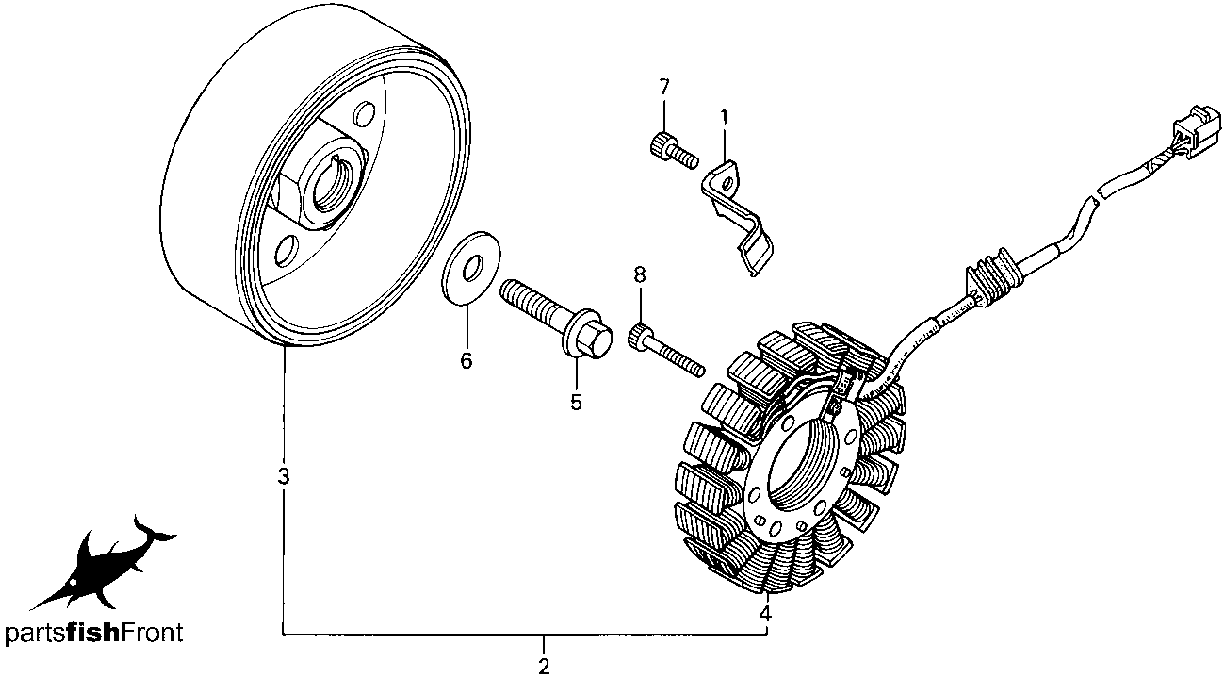

919293949596 alternator
| no. | description | part number | list price |
|---|---|---|---|
| 1 | CLAMP | 11333-MV9-670 | $4.32 |
| 2 | ALTERNATOR ASSY. | 31100-MV9-671 | $458.22 |
| 3 | FLYWHEEL COMP. | 31110-MV9-671 | $354.54 |
| 4 | STATOR COMP. | 31120-MV9-671 | $307.78 |
| 5 | BOLT, FLANGE (10MM) | 90023-MV9-670 | $6.08 |
| 6 | WASHER (10.5X27) | 90405-KT7-000 | $3.17 |
| 7 | BOLT, SOCKET (6X12) | 96600-06012-00 | $0.34 |
| 8 | BOLT, SOCKET (6X32) | 96600-06032-00 | $1.00 |
