1993 Honda CBR 600 F2 partsfiche

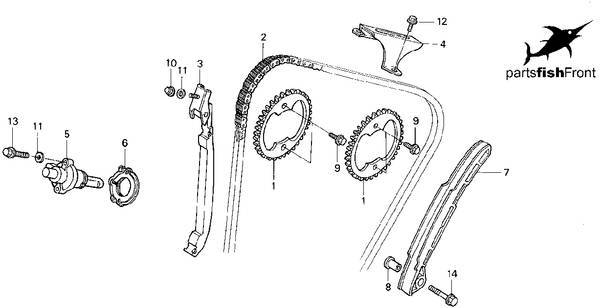

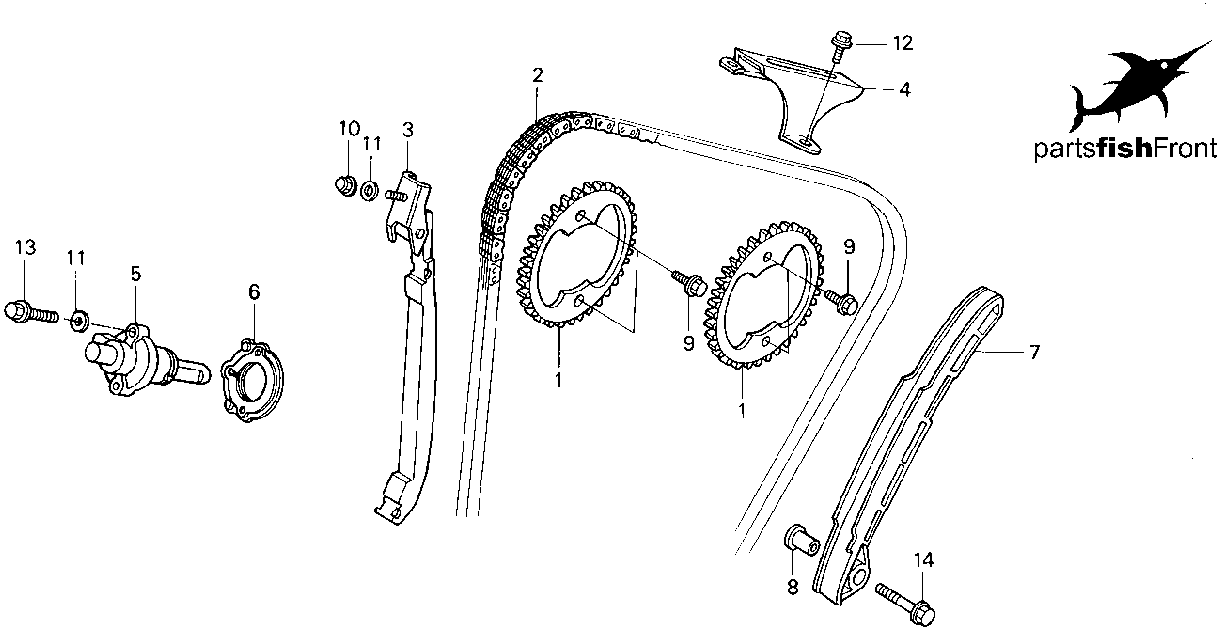

919293949596 cam chain f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| SPROCKET, CAM (34T)
| 14321-MV9-671
| $25.15
|
| 2
| CHAIN, CAM
| 14401-MV9-931
| $54.52
|
| 3
| TENSIONER, CAM CHAIN
| 14510-MV9-671
| $67.82
|
| 4
| GUIDE B, CAM CHAIN
| 14546-MV9-930
| $39.18
|
| 5
| ADJUSTER, CAM CHAIN
| 14550-MV9-671
| $51.35
|
| 6
| GASKET
| 14560-MV9-671
| $6.06
|
| 7
| GUIDE, CAM CHAIN
| 14620-MV9-671
| $52.23
|
| 8
| COLLAR (8MM)
| 14626-MV9-670
| $3.58
|
| 9
| BOLT (7X10.5)
| 90082-HA0-000
| $0.98
|
| 10
| NUT, CAP (6MM)
| 90201-415-000
| $1.42
|
| 11
| WASHER (6.5MM)
| 90463-ML7-000
| $1.62
|
| 12
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.54
|
| 13
| BOLT, FLANGE (6X22)
| 95701-06022-00
| $0.65
|
| 14
| BOLT, FLANGE (8X32)
| 95801-08032-00
| $1.06
|
