1993 Honda CBR 600 F2 partsfiche

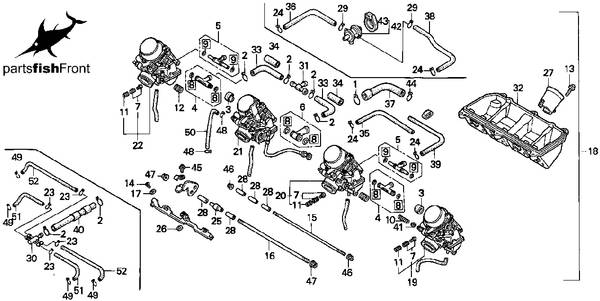

919293949596 carburetor assy f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| CLIP, DRAIN TUBE
| 15772-GB5-670
| $1.78
|
| 2
| CLIP, BREATHER TUBE
| 15772-292-010
| $2.03
|
| 3
| JOINT
| 16024-KAZ-000
| $14.51
|
| 4
| JOINT SET
| 16024-MV9-670
| $20.80
|
| 5
| JOINT SET
| 16026-MV4-000
| $21.86
|
| 6
| JOINT SET
| 16027-MV9-670
| $25.03
|
| 7
| SCREW SET
| 16028-MV4-000
| $25.14
|
| 8
| GASKET SET C
| 16039-MV9-670
| $28.12
|
| 9
| GASKET B SET
| 16040-MV4-000
| $10.68
|
| 10
| SPRING
| 16050-KM4-004
| $2.32
|
| 11
| SPRING
| 16052-MV4-000
| $2.11
|
| 12
| SPRING
| 16053-MA6-003
| $4.25
|
| 13
| SCREW-WASHER
| 16080-MV9-670
| $2.68
|
| 14
| SCREW-WASHER
| 16081-KAZ-000
| $1.60
|
| 15
| BOLT
| 16083-MV9-670
| $19.11
|
| 16
| BOLT
| 16084-MV9-670
| $19.11
|
| 17
| WASHER, PLAIN
| 16085-MV4-000
| $1.42
|
| 18
| CARBURETOR (VP42A A)
| 16100-MV9-770
| $1,562.98
|
| 19
| CARBURETOR ASSY. 1
| 16101-MV9-770
| $437.92
|
| 20
| CARBURETOR ASSY. 2
| 16102-MV9-770
| $437.92
|
| 21
| CARBURETOR ASSY. 3
| 16103-MV9-770
| $437.92
|
| 22
| CARBURETOR ASSY. 4
| 16104-MV9-770
| $437.92
|
| 23
| CLIP, TUBE
| 16163-KM4-004
| $1.48
|
| 24
| CLIP, TUBE
| 16163-MB3-671
| $0.51
|
| 25
| COLLAR
| 16172-MV9-670
| $14.82
|
| 26
| COLLAR SET
| 16173-KAZ-000
| $2.80
|
| 27
| FUNNEL, AIR
| 16175-MV9-670
| $12.89
|
| 28
| PIN, KNOCK
| 16178-MV4-000
| $2.38
|
| 29
| CLIP, BREATHER TUBE
| 15772-292-010
| $2.03
|
| 30
| JOINT
| 16180-ME5-761
| $16.26
|
| 31
| T-JOINT
| 16180-MM5-601
| $21.34
|
| 32
| BASE, AIR CLEANER
| 16188-MV9-770
| $72.06
|
| 33
| TUBE
| 16195-MV9-670
| $7.18
|
| 34
| TUBE
| 16196-MV9-670
| $6.83
|
| 35
| TUBE
| 16197-MV9-670
| $7.18
|
| 36
| TUBE
| 16197-MV9-770
| $7.18
|
| 37
| TUBE
| 16198-MV9-670
| $7.18
|
| 38
| TUBE
| 16198-MV9-770
| $7.18
|
| 39
| TUBE COMP.
| 16199-MV9-670
| $7.18
|
| 40
| TUBE COMP.
| 16199-MV9-770
| $7.68
|
| 41
| COLLAR
| 16202-657-300
| $1.51
|
| 42
| VALVE ASSY.
| 17300-MV9-770
| $97.57
|
| 43
| RUBBER, SETTING
| 17305-MJ4-771
| $5.83
|
| 44
| CLIP, AIR HOSE (19)
| 18533-634-670
| $3.42
|
| 45
| SCREW-WASHER (4X10)
| 93892-04010-10
| $0.45
|
| 46
| NUT, FLANGE (5MM)
| 94050-05000
| $0.45
|
| 47
| NUT, FLANGE (6MM)
| 94050-06000
| $0.54
|
| 48
| CLIP, TUBE (B7)
| 95002-02070
| $0.57
|
| 49
| CLIP, TUBE (B8)
| 95002-02080
| $0.57
|
| 50
| BULK HOSE (3.5X8000)
| 95005-35008-10M
| $38.18
|
| 51
| BULK HOSE (4.5X8000)
| 95005-45008-10M
| $71.00
|
| 52
| BULK HOSE (4.5X8000)
| 95005-45008-10M
| $71.00
|
