1993 Honda CBR 600 F2 partsfiche

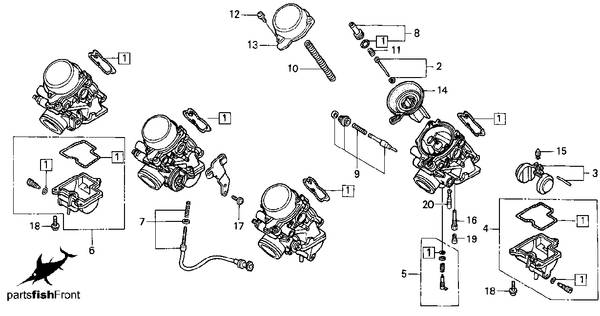

919293949596 carburetor components f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| GASKET SET A
| 16010-MV9-670
| $18.09
|
| 2
| NEEDLE SET, JET
| 16012-MV9-670
| $26.32
|
| 3
| FLOAT SET
| 16013-MV9-670
| $24.92
|
| 4
| CHAMBER SET, FLOAT
| 16015-MV9-670
| $78.58
|
| 5
| SCREW SET
| 16016-MV9-730
| $12.11
|
| 6
| CHAMBER SET, FLOAT
| 16023-MV9-670
| $99.20
|
| 7
| SCREW SET
| 16029-MV9-670
| $10.58
|
| 8
| PLATE SET, VALVE
| 16037-MV4-000
| $12.97
|
| 9
| VALVE SET, STARTER
| 16046-MV9-670
| $37.14
|
| 10
| SPRING
| 16050-MV9-670
| $12.89
|
| 11
| SPRING
| 16051-MV4-000
| $9.85
|
| 12
| SCREW, PAN
| 16080-MV4-000
| $1.22
|
| 13
| TOP
| 16107-MV4-000
| $28.82
|
| 14
| PISTON COMP., VACUUM
| 16111-MV9-670
| $103.42
|
| 15
| VALVE COMP., FLOAT
| 16155-MN9-004
| $16.54
|
| 16
| HOLDER, NEEDLE JET
| 16165-MN4-013
| $9.09
|
| 17
| SCREW-WASHER (5X10)
| 93892-05010-10
| $0.26
|
| 18
| SCREW-WASHER (5X16)
| 93892-05016-10
| $0.26
|
| 19
| JET (#135)
| 99101-GHB-1350
| $6.91
|
| 20
| JET, SLOW (#38)
| 99103-mt3-0380
| $13.40
|
