1993 Honda CBR 600 F2 partsfiche

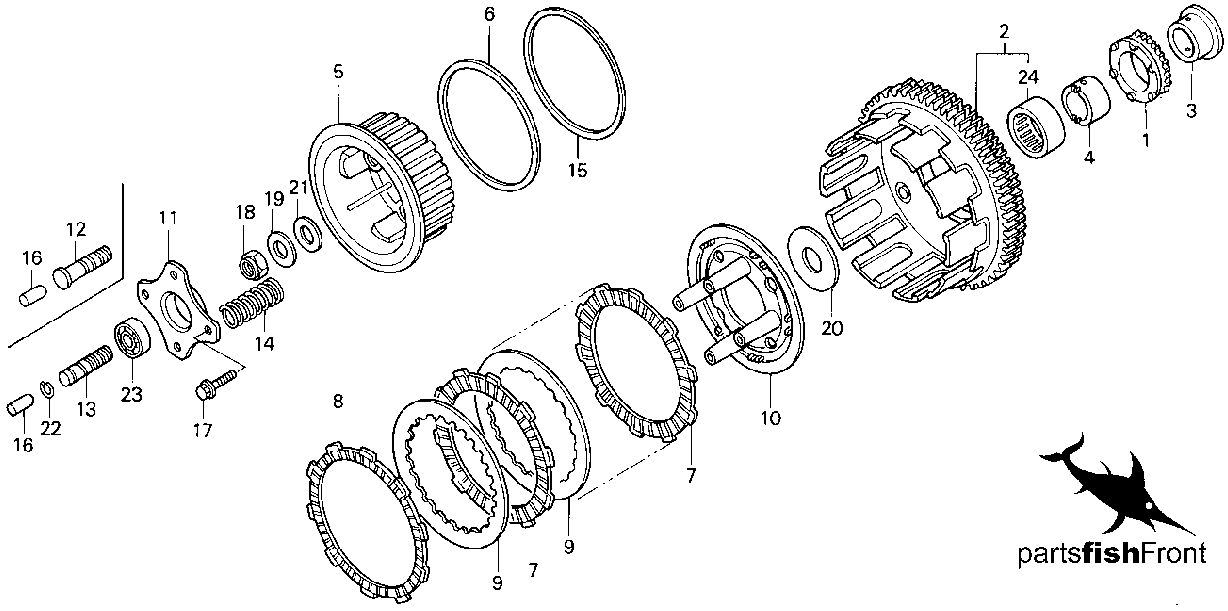

919293949596 clutch
| no. | description | part number | list price
|
|---|
| 1
| SPROCKET (25T)
| 15131-MV9-671
| $30.17
|
| 2
| OUTER COMP., CLUTCH
| 22100-MAL-600
| $290.85
|
| 3
| COLLAR
| 22116-MV9-660
| $15.32
|
| 3
| COLLAR
| 22116-MV9-670
| $14.98
|
| 4
| GUIDE, CLUTCH
| 22117-MV9-670
| $10.03
|
| 5
| CENTER COMP., CLUTCH
| 22120-MV9-670
| $69.60
|
| 6
| SEAT, JUDDER SPRING
| 22125-ML7-000
| $5.83
|
| 7
| DISK, CL FRICTION
| 22201-MV4-000
| $8.05
|
| 8
| DISK B, CL FRICTION
| 22202-ML4-611
| $8.98
|
| 9
| PLATE, CLUTCH
| 22321-ML7-000
| $7.68
|
| 10
| PLATE, CLU PRESS
| 22350-MV9-670
| $34.74
|
| 11
| PLATE, CLUTCH LIFTER
| 22361-MAL-600
| $14.94
|
| 13
| ROD, CLUTCH LIFTER
| 22366-MV9-670
| $12.12
|
| 14
| SPRING, CLUTCH
| 22401-MV9-670
| $3.28
|
| 15
| SPRING, JUDDER
| 22402-ML7-000
| $12.35
|
| 16
| ROD, CLUTCH LIFTER
| 22847-MV9-670
| $4.88
|
| 17
| BOLT, FLANGE (6X28)
| 90003-MM9-000
| $1.62
|
| 18
| NUT, LOCK (20MM)
| 90241-KM9-000
| $5.98
|
| 19
| WASHER, LOCK
| 90432-121-000
| $2.97
|
| 20
| WASHER (22MM)
| 90457-MV9-670
| $3.86
|
| 22
| CLIP (10.6)
| 90602-KE1-000
| $1.00
|
| 23
| BEARING (12X28X7)
| 91001-KA4-003
| $12.42
|
| 24
| BEARING (35X42X23)
| 91026-MV9-671
| $46.18
|
