1993 Honda CBR 600 F2 partsfiche

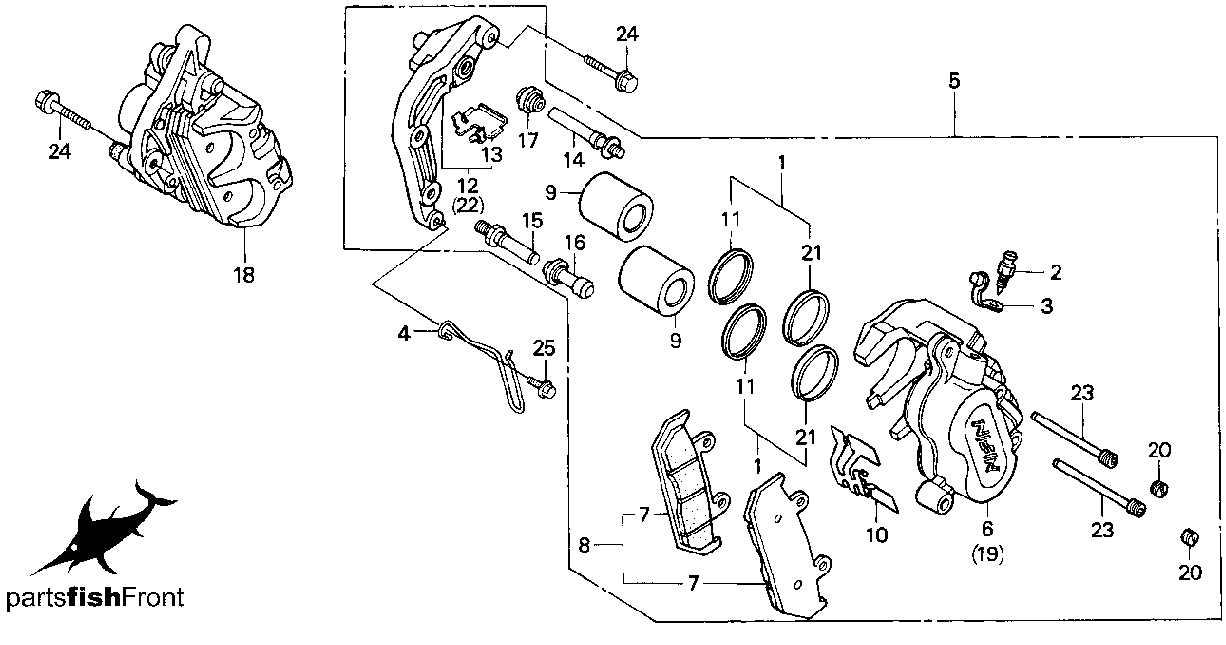

919293949596 front brake caliper f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| SEAL SET, PISTON
| 06451-GE2-405
| $6.23
|
| 2
| SCREW, BLEEDER
| 43352-568-003
| $4.12
|
| 3
| CAP, BLEEDER
| 43353-461-771
| $2.86
|
| 4
| CLAMP
| 44832-MV9-000
| $4.06
|
| 5
| CALIPER, L. FR.
| 45100-MV9-006
| $388.51
|
| 6
| BODY, L. CALIPER
| 45101-MV9-006
| $134.52
|
| 8
| PAD SET
| 45105-MV1-405
| $38.86
|
| 9
| PISTON
| 45107-MN5-006
| $20.66
|
| 10
| SPRING, PAD
| 45108-ML4-006
| $5.05
|
| 12
| BRACKET COMP., L.
| 45110-MV9-006
| $91.43
|
| 13
| RETAINER
| 45112-MG3-006
| $3.71
|
| 14
| BOLT, PIN
| 45131-HA5-672
| $8.40
|
| 15
| PIN, BOLT
| 45131-166-016
| $4.31
|
| 16
| BUSH, PIN
| 45132-166-016
| $3.08
|
| 17
| BOOT B
| 45133-MA3-006
| $3.08
|
| 18
| CALIPER, R. FR.
| 45200-MV9-006
| $388.51
|
| 19
| BODY, R. CALIPER
| 45201-MV9-006
| $134.52
|
| 20
| PLUG, PIN
| 45203-MG3-016
| $2.89
|
| 22
| BRACKET COMP., R.
| 45210-ML0-006
| $78.65
|
| 23
| PIN, HANGER
| 45215-KA3-732
| $6.28
|
| 24
| BOLT, FLANGE (8X32)
| 90107-MT3-003
| $2.38
|
| 25
| BOLT, FLANGE (6X10)
| 96001-06010-07
| $0.57
|
