1993 Honda CBR 600 F2 partsfiche

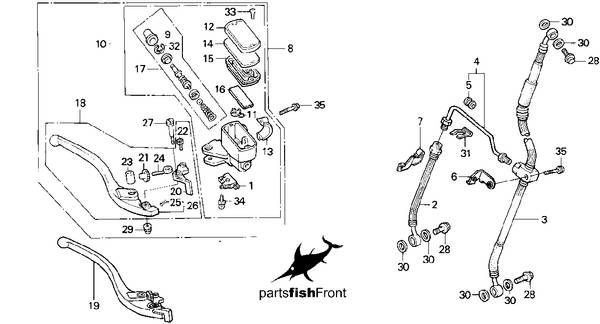

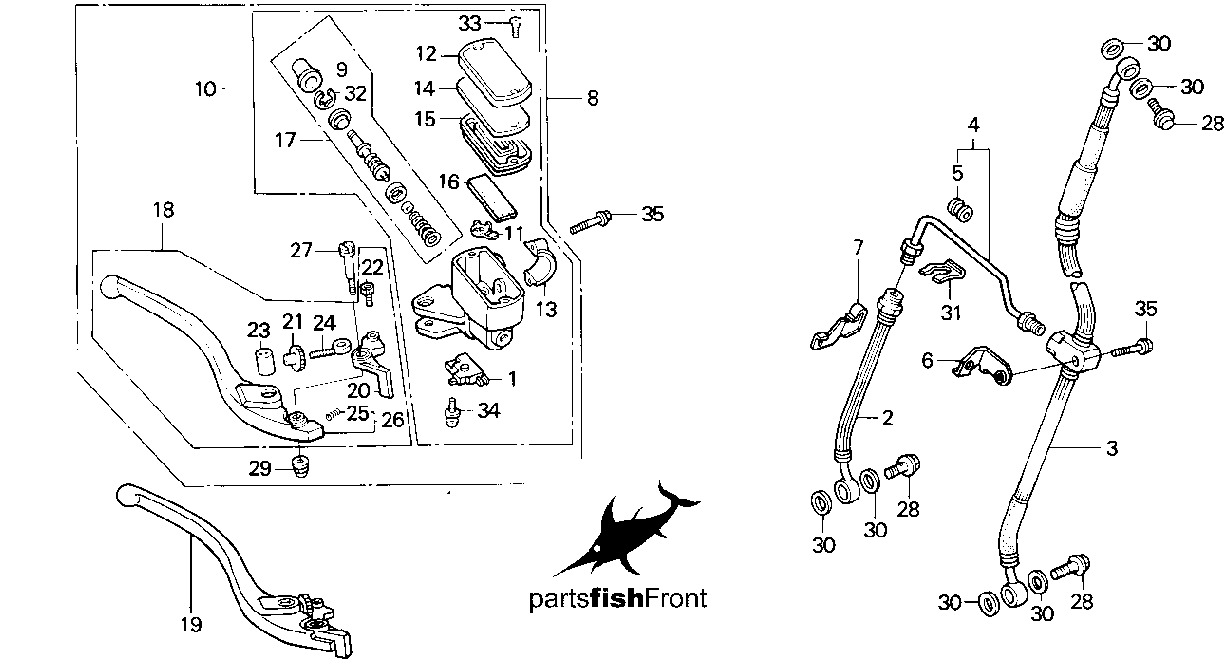

919293949596 front brake master cylinder f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| SWITCH, FR. STOP
| 35340-MM5-600
| $11.09
|
| 2
| LOCK SET
| 35010-mv9-601
| $219.78
|
| 3
| HOSE, FR. BRAKE
| 45125-MV9-003
| $39.98
|
| 4
| PIPE, FR. BRAKE
| 45127-MV9-000
| $5.51
|
| 5
| GROMMET, BRAKE PIPE
| 45137-MV9-000
| $1.18
|
| 6
| STAY, FR. BRAKE HOSE
| 45156-MV9-000
| $8.55
|
| 7
| CLAMP, R. FR.
| 45157-MV9-000
| $5.60
|
| 9
| BOOT COMP.
| 45504-410-003
| $6.65
|
| 11
| PROTECTOR
| 45512-MA6-006
| $2.42
|
| 12
| CAP, MASTER CYLINDER
| 45513-MM5-006
| $12.22
|
| 13
| HOLDER
| 45517-166-006
| $7.40
|
| 14
| PLATE, DIAPHRAGM
| 45518-MM5-006
| $5.82
|
| 15
| DIAPHRAGM
| 45520-MM5-006
| $8.25
|
| 16
| FLOAT, FR.
| 45523-MV9-006
| $5.49
|
| 17
| MASTER CYLINDER SET
| 45530-471-831
| $32.20
|
| 18
| LEVER, R. HANDLE
| 53170-KV0-006
| $20.94
|
| 19
| LEVER, R. HANDLE
| 53170-MW0-006
| $20.94
|
| 20
| KNOCKER
| 53171-MJ4-701
| $14.34
|
| 21
| ADJUSTER, R.
| 53172-KV0-006
| $5.15
|
| 22
| BOLT (5X5)
| 53177-KV0-006
| $2.40
|
| 23
| JOINT, LEVER
| 53179-KV0-006
| $2.52
|
| 24
| BOLT, ADJUSTING
| 53180-KV0-006
| $4.42
|
| 25
| SPRING, HANDLEBAR
| 53181-KV0-006
| $1.68
|
| 26
| LEVER SET, R. HANDLE
| 53185-KV0-006
| $9.74
|
| 27
| BOLT, R.
| 90114-MA5-671
| $5.15
|
| 28
| BOLT, OIL (10X22)
| 90145-MS9-611
| $3.78
|
| 29
| NUT, CAP (6MM)
| 90201-415-000
| $1.42
|
| 30
| WASHER, OIL BOLT
| 90545-300-000
| $1.89
|
| 31
| CLIP, BRAKE HOSE
| 90651-KV3-000
| $1.23
|
| 32
| CIRCLIP
| 90651-MA5-671
| $1.51
|
| 33
| SCREW, FLAT (4X12)
| 93600-04012-1G
| $0.34
|
| 34
| SCREW-WASHER (4X12)
| 93893-04012-18
| $0.52
|
| 35
| BOLT, FLANGE (6X22)
| 96001-06022-07
| $0.89
|
