1993 Honda CBR 600 F2 partsfiche

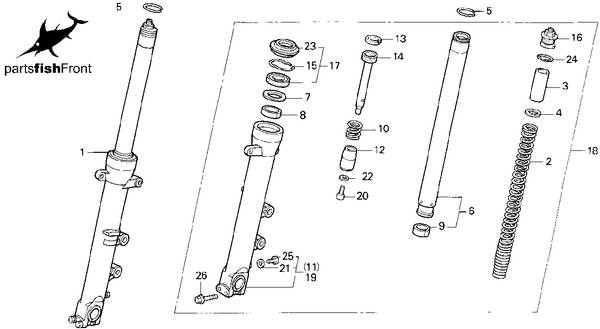

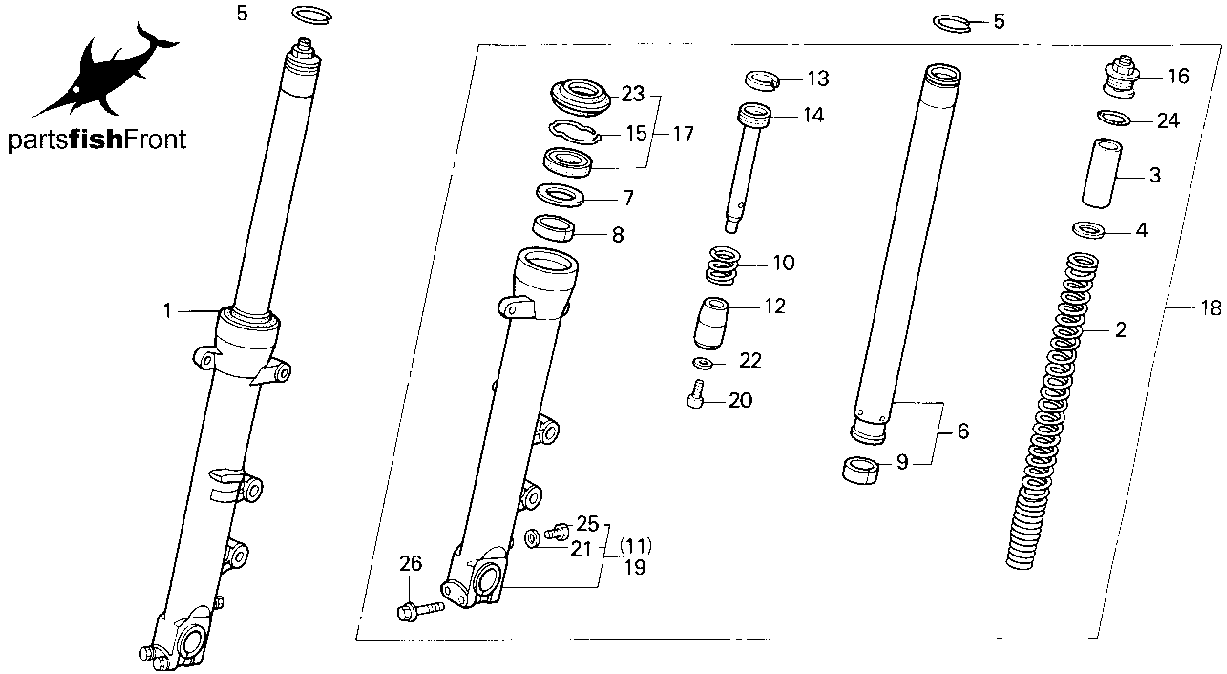

919293949596 front fork f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| FORK ASSY., R. FR.
| 51400-MV9-003
| $552.03
|
| 2
| SPRING, FR. FORK
| 51401-MV9-003
| $52.00
|
| 3
| COLLAR, SPRING
| 51402-MV8-901
| $9.11
|
| 4
| SEAT, SPRING
| 51403-KF0-003
| $2.71
|
| 5
| RING, STOPPER
| 51405-MB4-003
| $3.32
|
| 6
| PIPE COMP., FR. FORK
| 51410-MV9-003
| $206.55
|
| 7
| RING, BACK-UP
| 51412-MB4-003
| $5.26
|
| 8
| BUSH, GUIDE
| 51414-MN5-003
| $7.29
|
| 9
| BUSH, SLIDER
| 51415-MM8-003
| $8.71
|
| 10
| SPRING, FR. REBOUND
| 51416-KF0-003
| $3.75
|
| 11
| CASE, R. (LOWER)
| 51421-MV9-003
| $206.55
|
| 12
| PIECE, OIL LOCK
| 51432-MV9-003
| $13.54
|
| 13
| RING, PISTON
| 51437-KV3-701
| $4.06
|
| 14
| PIPE, SEAT
| 51440-MV9-003
| $41.28
|
| 15
| RING
| 51447-KA4-711
| $2.55
|
| 16
| BOLT ASSY., FR. FORK
| 51450-MR8-003
| $60.71
|
| 17
| SEAL SET, FR. FORK
| 51490-MN8-305
| $18.08
|
| 18
| FORK ASSY., L. FR.
| 51500-MV9-003
| $552.03
|
| 19
| CASE, L. (LOWER)
| 51521-MV9-003
| $190.28
|
| 20
| BOLT, SOCKET (8MM)
| 90116-KV3-701
| $2.20
|
| 21
| GASKET, FR.
| 90543-273-000
| $1.15
|
| 22
| WASHER (8MM)
| 90544-283-000
| $1.49
|
| 23
| DUST SEAL
| 91254-MM8-003
| $9.74
|
| 24
| O-RING (33.2X2.4)
| 91356-KF0-003
| $2.09
|
| 25
| BOLT, HEX. (6X8)
| 92101-06008-0A
| $0.49
|
| 26
| BOLT, FLANGE (8X45)
| 96500-08045-07
| $2.72
|
