1993 Honda CBR 600 F2 partsfiche

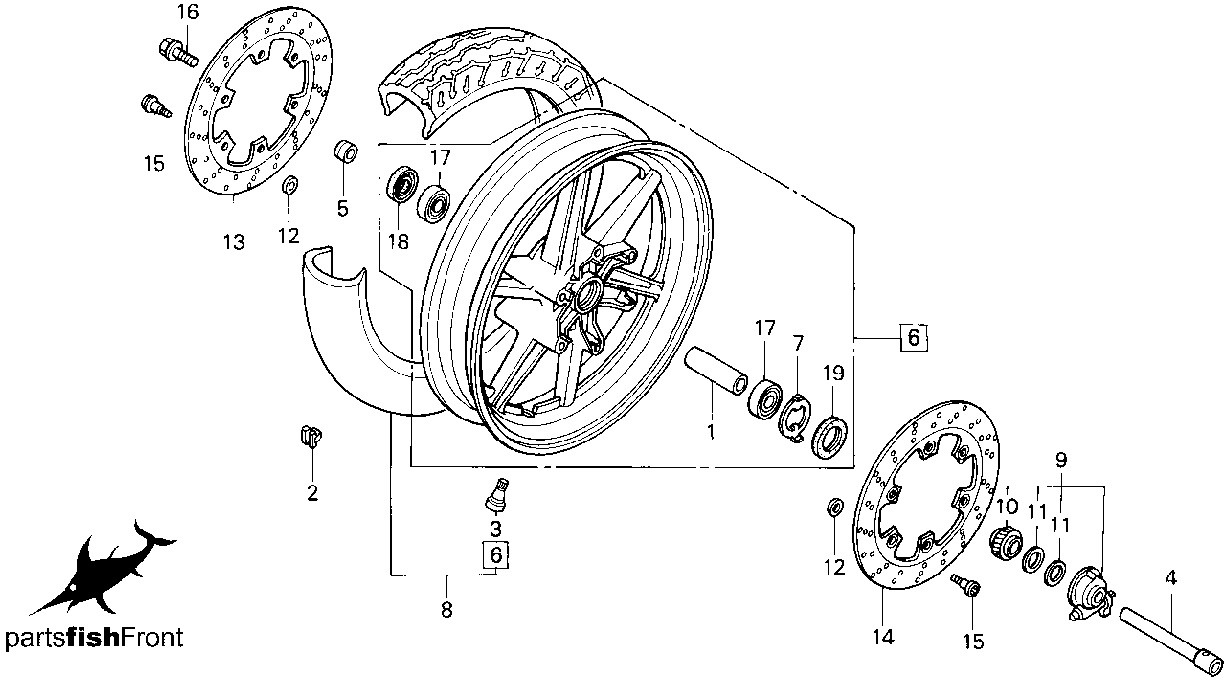

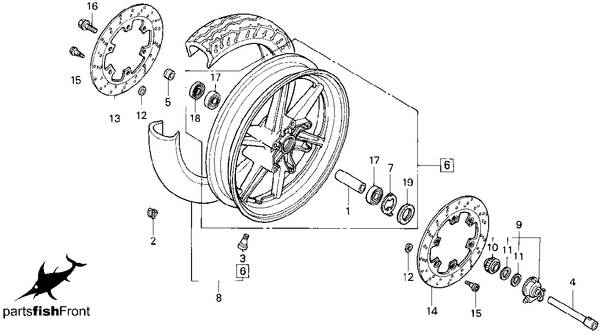

919293949596 front wheel f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| COLLAR, RR.
| 42620-MW5-000
| $12.09
|
| 2
| WEIGHT (10G)
| 42704-MB0-000
| $7.43
|
| 2
| WEIGHT (20G)
| 42705-MB0-000
| $7.43
|
| 2
| WEIGHT (30G)
| 42706-MB0-000
| $7.43
|
| 3
| VALVE, RIM
| 42753-ML7-003
| $6.95
|
| 4
| AXLE, FR. WHEEL
| 44301-MM5-000
| $29.78
|
| 5
| COLLAR, L. FR.
| 44312-KV3-700
| $5.89
|
| 6
| WHEEL SET *NH196*
| 44650-MV9-305ZA
| $463.45
|
| 6
| WHEEL SET, FR. *NH1*
| 44650-MV9-305ZC
| $463.45
|
| 7
| RETAINER, GEAR BOX
| 44680-ML7-000
| $2.71
|
| 8
| TIRE (120/60ZR17)
| 44710-MAL-671
| $122.17
|
| 8
| TIRE (120/60ZR17)
| 44710-MV9-901
| $122.17
|
| 8
| TIRE (120/60ZR17)
| 44711-MAL-671
| $122.17
|
| 9
| BOX ASSY.
| 44800-MV9-003
| $68.78
|
| 10
| GEAR, SPEEDOMETER
| 44806-MV9-003
| $19.35
|
| 11
| WASHER
| 44809-ML7-003
| $1.62
|
| 12
| SHIM, DAMPING
| 45128-ME2-003
| $2.09
|
| 13
| DISK, R. FR. BRAKE
| 45251-MV9-000
| $193.66
|
| 14
| DISK, L. FR. BRAKE
| 45351-MV9-000
| $193.66
|
| 15
| BOLT, DISK (8X24)
| 90105-MV9-003
| $3.48
|
| 16
| BOLT, FR. AXLE
| 90305-ML7-000
| $5.72
|
| 17
| BEARING (6004)
| 91054-MN8-741
| $17.57
|
| 18
| DUST SEAL (28X42X8)
| 91257-MAY-003
| $4.98
|
| 19
| DUST SEAL (45X55X5)
| 91258-ML7-003
| $4.69
|
