1993 Honda CBR 600 F2 partsfiche

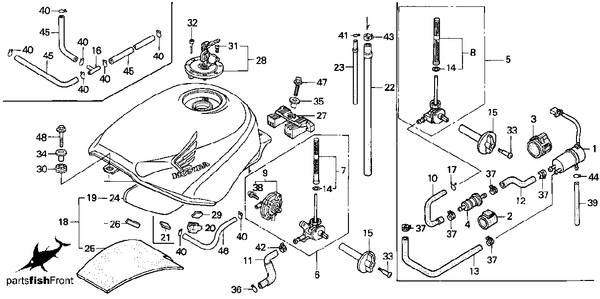

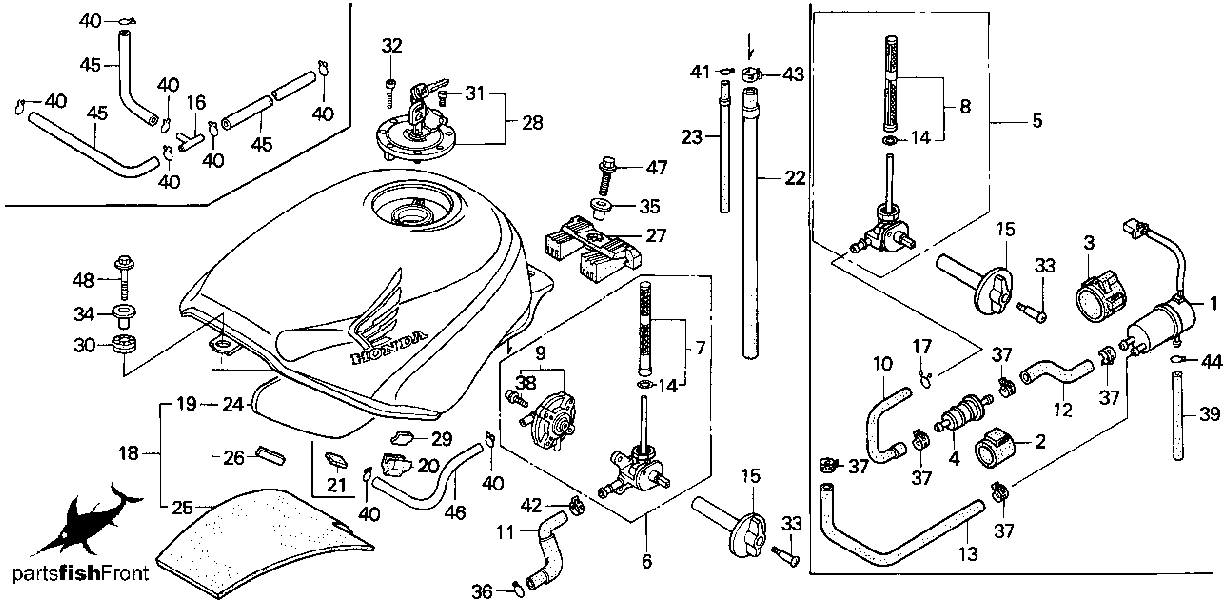

919293949596 fuel tank
| no. | description | part number | list price
|
|---|
| 6
| PETCOCK ASSY., AUTO
| 16950-MV9-030
| $143.37
|
| 7
| SCREEN SET
| 16952-KAZ-000
| $14.17
|
| 9
| COVER SET, PETCOCK
| 16953-MV9-000
| $26.03
|
| 11
| TUBE, FUEL
| 16955-MV9-000
| $6.17
|
| 14
| O-RING
| 16958-KM9-005
| $2.02
|
| 15
| LEVER, PETCOCK
| 16965-MV9-000
| $16.91
|
| 16
| JOINT, VACUUM TUBE
| 17201-MG9-000
| $11.14
|
| 19
| TANK SET *NH0/PB231*
| 17506-MV9-920ZA
| $642.23
|
| 19
| TANK *NH1/NH259M*
| 17506-MV9-920ZB
| $642.23
|
| 20
| RUBBER, FUEL TANK
| 17516-MV9-900
| $1.42
|
| 22
| TUBE, DRAIN
| 17531-MV9-010
| $9.00
|
| 23
| TUBE, BREATHER
| 17532-MV9-010
| $5.57
|
| 24
| MAT
| 17541-MV9-300
| $5.45
|
| 26
| TAPE B, TANK GUARD
| 17555-MS2-300
| $3.08
|
| 27
| RUBBER, RR.
| 17613-473-000
| $12.57
|
| 28
| CAP, FUEL FILLER
| 17620-MT4-010
| $105.83
|
| 29
| RUBBER, PROTECTOR
| 81214-MW0-300
| $2.77
|
| 30
| RUBBER
| 84703-425-000
| $2.66
|
| 31
| BOLT, SOCKET (4X6)
| 90073-MT4-000
| $1.92
|
| 32
| BOLT, SOCKET (4X21)
| 90074-MT4-000
| $1.74
|
| 33
| SCREW
| 90116-KY6-000
| $2.68
|
| 34
| COLLAR (6.2X12)
| 90501-MA3-770
| $2.52
|
| 35
| COLLAR (.8X11)
| 90551-MG7-000
| $3.08
|
| 36
| CLAMP, TUBE (12.0MM)
| 90661-GHB-600
| $0.85
|
| 38
| SCREW-WASHER (4X16)
| 93892-04016-18
| $0.26
|
| 40
| CLIP, TUBE (B7)
| 95002-02070
| $0.57
|
| 41
| CLIP, TUBE (B8)
| 95002-02080
| $0.57
|
| 42
| CLIP, TUBE (D12.5)
| 95002-41250-08
| $0.91
|
| 43
| CLIP, TUBE (D13)
| 95002-41300-08
| $1.22
|
| 45
| BULK HOSE (3.5X1000)
| 95005-35001-20M
| $4.49
|
| 46
| BULK HOSE (3.5X1000)
| 95005-35001-20M
| $4.49
|
| 47
| BOLT, FLANGE (8X25)
| 95701-08025-07
| $0.82
|
| 48
| BOLT, FLANGE (6X22)
| 96001-06022-07
| $0.89
|
