1993 Honda CBR 600 F2 partsfiche

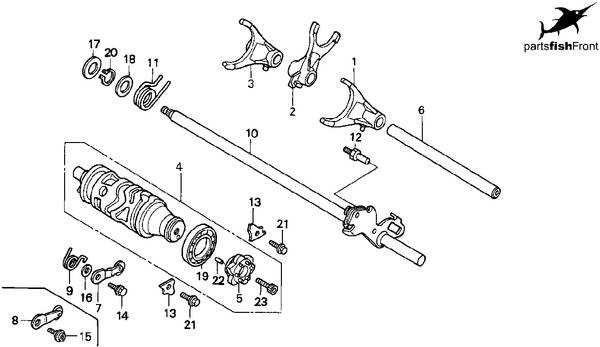

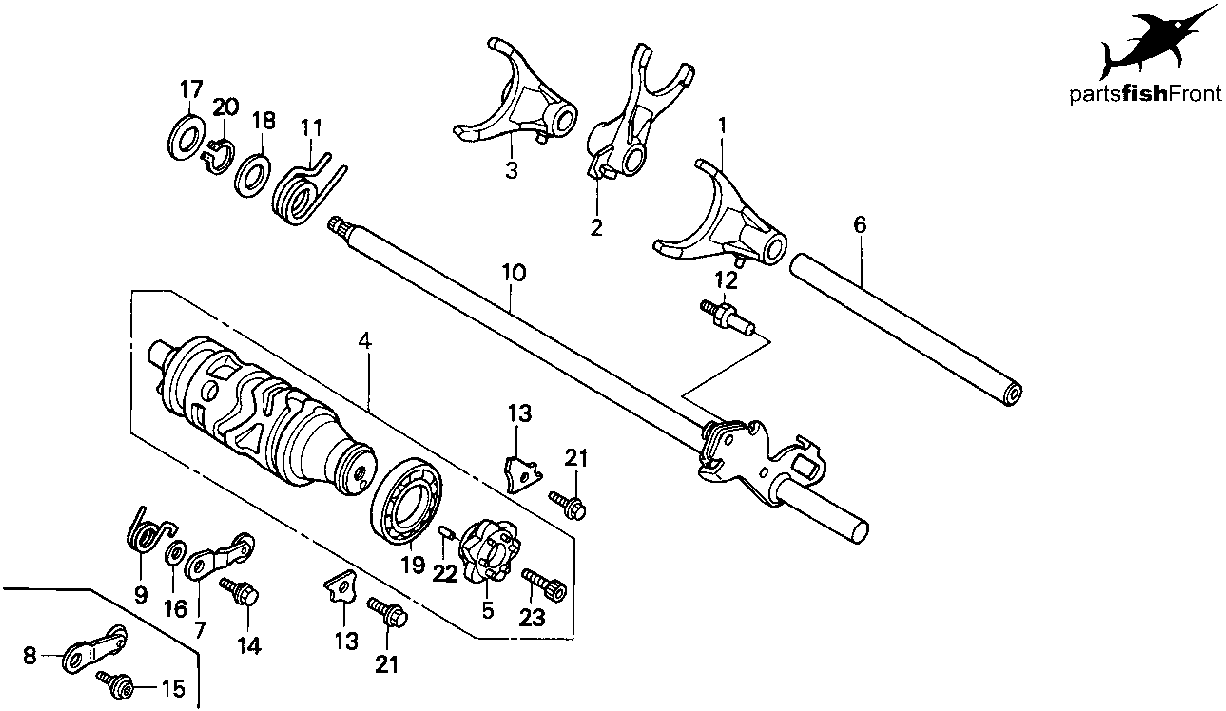

919293949596 gearshift drum
| no. | description | part number | list price
|
|---|
| 1
| FORK, R. GEARSHIFT
| 24211-MV9-670
| $53.82
|
| 2
| FORK
| 24212-MV9-670
| $53.82
|
| 3
| FORK, L. GEARSHIFT
| 24213-MV9-670
| $53.82
|
| 4
| DRUM, GEARSHIFT
| 24310-MV9-670
| $80.18
|
| 5
| CENTER, SHIFT DRUM
| 24315-MV9-932
| $22.32
|
| 6
| SHAFT
| 24321-MV9-670
| $14.17
|
| 7
| STOPPER COMP., DRUM
| 24430-MV9-670
| $9.31
|
| 9
| SPRING, DRUM STOPPER
| 24435-mv9-660
| $2.72
|
| 9
| SPRING, DRUM STOPPER
| 24435-MV9-670
| $2.78
|
| 10
| SPINDLE, GEARSHIFT
| 24610-MV9-900
| $61.60
|
| 11
| SPRING, SHIFT RETURN
| 24651-MV9-670
| $4.14
|
| 12
| PIN
| 24652-035-000
| $2.25
|
| 13
| PLATE, DRUM SETTING
| 24655-MV9-670
| $4.32
|
| 14
| PIVOT
| 90022-MG8-000
| $1.28
|
| 16
| WASHER, DRUM STOPPER
| 90417-360-000
| $1.14
|
| 17
| WASHER (14MM)
| 90451-155-000
| $2.80
|
| 19
| BEARING (16005)
| 91008-374-003
| $15.62
|
| 20
| CIRCLIP (14MM)
| 94510-14000
| $0.45
|
| 21
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.54
|
| 22
| ROLLER (4X8)
| 96220-40080
| $0.28
|
| 23
| BOLT, SOCKET (8X20)
| 96600-08020-10
| $1.11
|
