1993 Honda CBR 600 F2 partsfiche

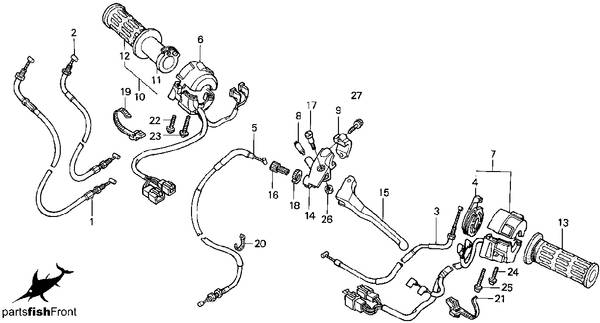

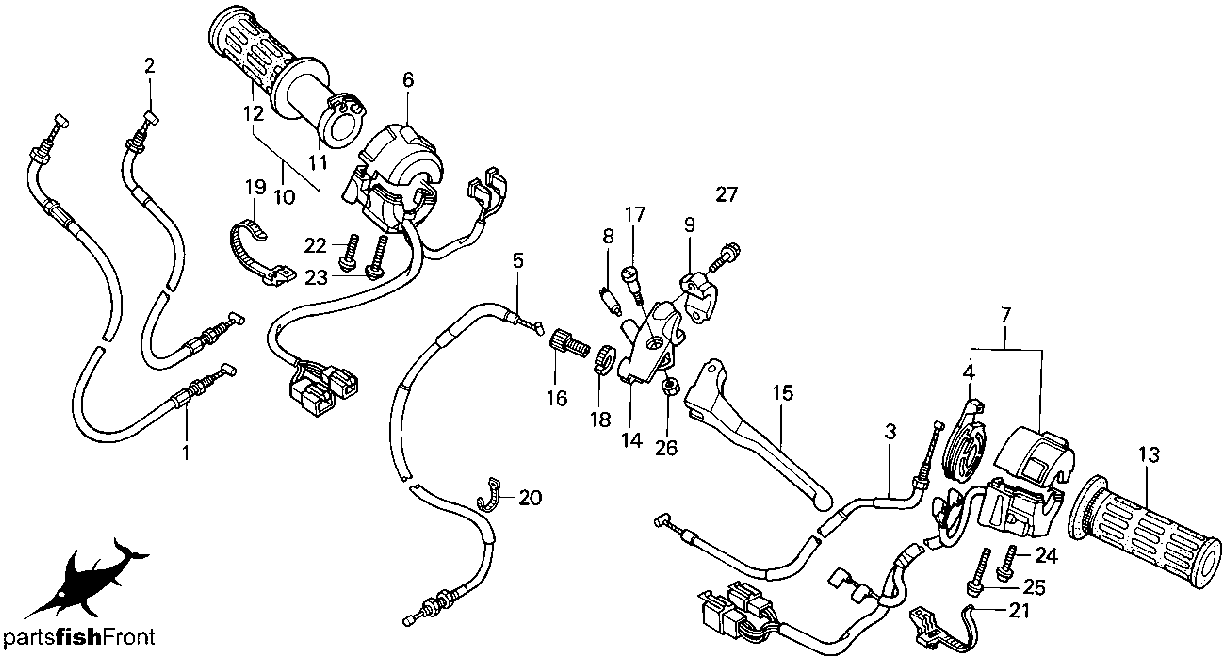

919293949596 handle switch cables
| no. | description | part number | list price
|
|---|
| 1
| CABLE A, THROTTLE
| 17910-MV9-000
| $19.58
|
| 2
| CABLE B, THROTTLE
| 17920-MV9-000
| $18.86
|
| 3
| CABLE COMP., CHOKE
| 17950-MV9-000
| $16.62
|
| 4
| LEVER, CHOKE
| 17962-MN8-000
| $10.35
|
| 5
| CABLE COMP., CLUTCH
| 22870-MV9-000
| $22.57
|
| 6
| SWITCH, STARTER KILL
| 35130-MV9-670
| $87.35
|
| 7
| SWITCH, TURN SIGNAL
| 35200-MV9-670
| $95.68
|
| 8
| SWITCH, FR. LEVER
| 35330-413-003
| $11.97
|
| 9
| HOLDER
| 45517-166-006
| $7.40
|
| 10
| GRIP COMP., R.
| 53140-ML7-000
| $14.78
|
| 11
| PIPE, THROTTLE GRIP
| 53141-ML7-000
| $9.86
|
| 12
| GRIP, R. HANDLE
| 53165-ML7-010
| $8.26
|
| 13
| GRIP, L. HANDLE
| 53166-ML7-000
| $8.26
|
| 14
| BRACKET, HANDLEBAR
| 53172-KT8-710
| $17.05
|
| 15
| LEVER, L. HANDLEBAR
| 53178-KV3-000
| $10.03
|
| 16
| BOLT
| 53192-349-690
| $4.00
|
| 17
| BOLT, L.
| 90113-438-000
| $5.15
|
| 18
| NUT, FIXING
| 90321-MR8-000
| $2.71
|
| 19
| BAND, WIRE HARNESS
| 90651-MA6-720
| $2.48
|
| 20
| BAND, WIRE HARNESS
| 90652-MA6-910
| $2.52
|
| 21
| CLIP (15)
| 90690-GHB-601
| $1.51
|
| 22
| SCREW-WASHER (5X20)
| 93892-05020-07
| $0.48
|
| 23
| SCREW-WASHER (5X25)
| 93892-05025-07
| $0.52
|
| 24
| SCREW-WASHER (5X35)
| 93892-05035-07
| $0.52
|
| 25
| SCREW-WASHER (5X45)
| 93892-05045-07
| $0.72
|
| 26
| NUT, HEX. (6MM)
| 94001-06200-0S
| $0.48
|
| 27
| BOLT, FLANGE (6X22)
| 96001-06022-07
| $0.89
|
