1993 Honda CBR 600 F2 partsfiche

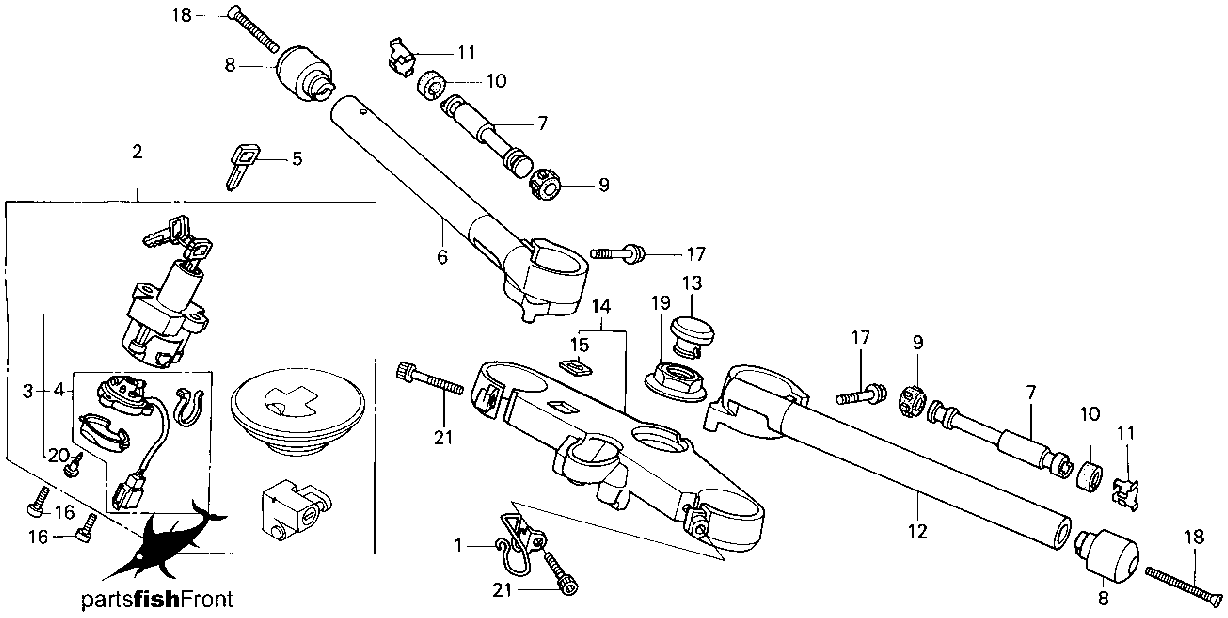

919293949596 handlebar
| no. | description | part number | list price
|
|---|
| 1
| GUIDE, CLUTCH CABLE
| 17909-MV9-000
| $8.02
|
| 2
| LOCK SET
| 35010-MV9-601
| $219.78
|
| 3
| SWITCH ASSY.
| 35100-MV9-601
| $106.78
|
| 4
| BASE COMP., CONTACT
| 35101-MV9-601
| $44.74
|
| 5
| KEY, BLANK (TYPE1)
| 35121-KW3-771
| $5.49
|
| 6
| HANDLEBAR, R.
| 53100-MV9-000
| $140.68
|
| 7
| WEIGHT B, HANDLEBAR
| 53104-MV4-000
| $13.28
|
| 8
| WEIGHT, HANDLEBAR
| 53105-MN4-000
| $11.51
|
| 9
| RUBBER
| 53106-MJ0-000
| $2.23
|
| 10
| RUBBER A
| 53106-MV9-000
| $1.74
|
| 11
| RING
| 53108-MJ0-000
| $3.49
|
| 12
| HANDLEBAR, L.
| 53150-MV9-000
| $140.68
|
| 13
| CAP, STEERING NUT
| 53232-MJ4-670
| $7.29
|
| 14
| BRIDGE, FORK TOP
| 53300-MV9-000
| $188.62
|
| 15
| EMBLEM, WING MARK
| 86150-MR8-300
| $8.85
|
| 16
| BOLT, SOCKET (8MM)
| 90100-KV3-700
| $2.55
|
| 17
| BOLT (8X35)
| 90108-KT8-710
| $2.40
|
| 18
| SCREW, OVAL (6X55)
| 90191-MK4-000
| $2.68
|
| 19
| NUT, STEERING STEM
| 90304-MJ4-670
| $8.37
|
| 20
| SCREW, TAP (3X16)
| 91059-KY2-711
| $1.68
|
| 21
| BOLT, SOCKET (8X40)
| 96700-08040-07
| $1.00
|
