1993 Honda CBR 600 F2 partsfiche

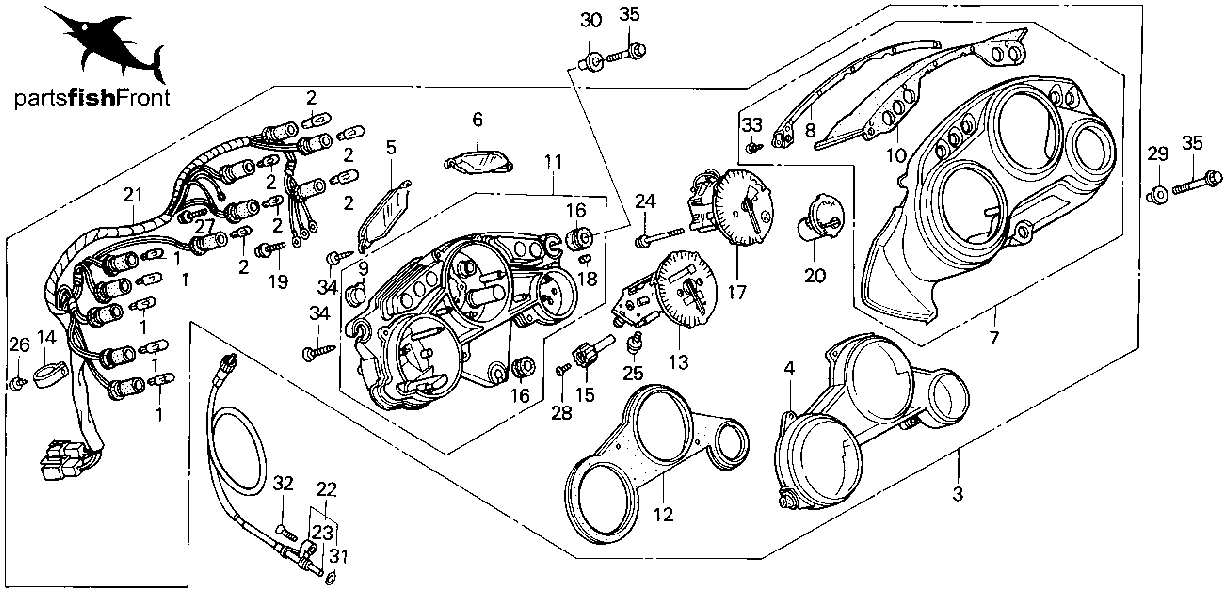

919293949596 meters f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| BULB (12V3.4W) (158)
| 37237-SA5-004
| $2.15
|
| 2
| BULB (12V 1.7W)
| 34908-MB9-871
| $1.89
|
| 3
| METER, COMBINATION
| 37100-MV9-671
| $823.92
|
| 4
| LENS ASSY., METER
| 37102-MV9-601
| $29.58
|
| 5
| LENS, L. SMOKE
| 37103-MV9-601
| $4.09
|
| 6
| LENS, R. SMOKE
| 37104-MV9-601
| $4.09
|
| 7
| VISOR ASSY.
| 37110-MV9-601
| $59.28
|
| 8
| BRACKET
| 37112-MV9-601
| $7.57
|
| 9
| CAP
| 37113-ML7-008
| $1.68
|
| 10
| COVER (UPPER)
| 37113-MV9-601
| $24.55
|
| 11
| CASE ASSY.
| 37120-MV9-671
| $45.23
|
| 12
| PLATE, REFLECTING
| 37130-MV9-601
| $29.58
|
| 13
| SPEEDOMETER COMP.
| 37200-MV9-671
| $244.55
|
| 14
| CLAMP
| 37215-KR1-760
| $1.54
|
| 15
| KNOB, TRIP METER
| 37220-445-008
| $7.68
|
| 16
| RUBBER
| 37244-MV9-601
| $3.32
|
| 17
| TACHOMETER COMP.
| 37250-MV9-671
| $386.52
|
| 18
| RUBBER, CUSHION
| 37304-198-901
| $2.23
|
| 19
| SCREW-WASHER (3X22)
| 37305-KE5-008
| $1.86
|
| 20
| TEMPMETER COMP.
| 37400-MV9-601
| $102.25
|
| 21
| SOCKET COMP.
| 37612-MV9-601
| $105.46
|
| 22
| CABLE, SPEEDOMETER
| 44830-MN4-000
| $17.74
|
| 23
| CABLE (INNER)
| 44831-MN4-000
| $5.72
|
| 24
| SCREW, TAP (4X36)
| 90032-ML7-671
| $2.14
|
| 25
| SCREW-WASHER (4X10)
| 90035-166-008
| $1.06
|
| 26
| SCREW, TAP (4X14)
| 90102-SB2-003
| $1.86
|
| 27
| SCREW-WASHER (3X10)
| 90108-GN2-008
| $1.20
|
| 28
| SCREW, PAN (2X6)
| 90158-KM7-911
| $1.05
|
| 29
| COLLAR (19X6.2X18)
| 90501-MN4-000
| $3.49
|
| 30
| COLLAR (19X6.2X14.5)
| 90502-MN4-000
| $3.49
|
| 31
| O-RING B (6.8X1.9)
| 91310-MC7-003
| $1.11
|
| 32
| SCREW, OVAL (5X20)
| 93700-05020-0G
| $0.29
|
| 33
| SCREW, TAP (3X10)
| 93901-22220
| $0.34
|
| 34
| SCREW, TAP (4X20)
| 93903-24520
| $0.34
|
| 35
| BOLT, FLANGE (6X28)
| 96001-06028-07
| $0.78
|
