1993 Honda CBR 600 F2 partsfiche

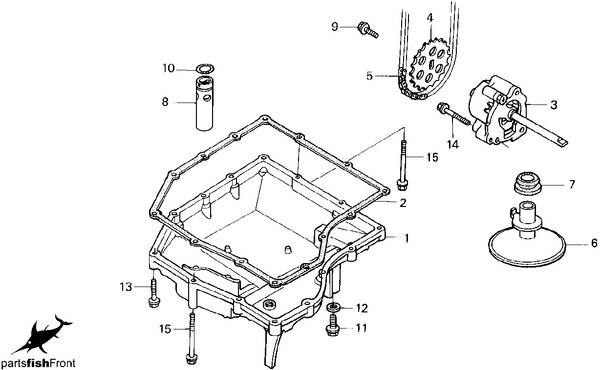

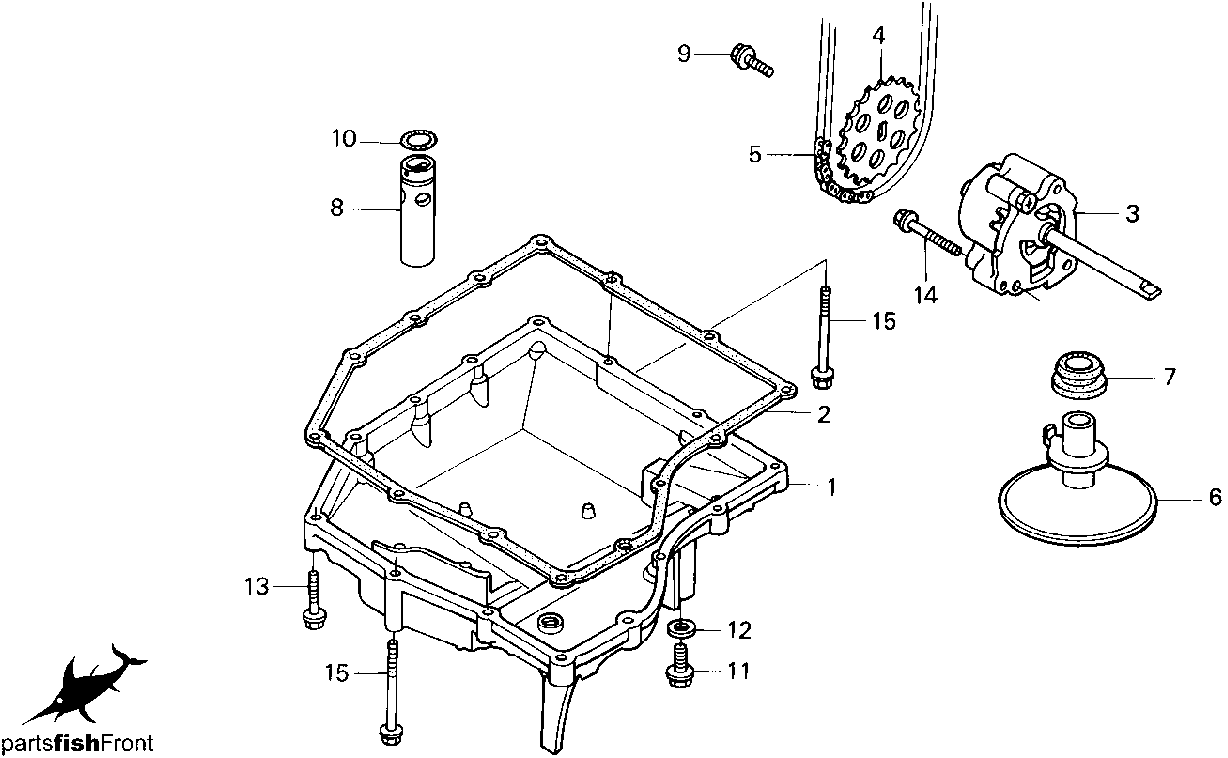

919293949596 oil pan
| no. | description | part number | list price
|
|---|
| 1
| PAN, OIL
| 11210-MV9-670
| $143.49
|
| 2
| GASKET, OIL PAN
| 11394-MV9-670
| $7.57
|
| 3
| PUMP ASSY., OIL
| 15100-MV9-670
| $164.03
|
| 4
| SPROCKET (26T)
| 15134-MV9-670
| $13.89
|
| 5
| CHAIN (25H-50)
| 15140-ML0-003
| $13.83
|
| 6
| STRAINER COMP., OIL
| 15153-MV9-670
| $22.86
|
| 7
| GASKET, OIL STRAINER
| 15154-MM5-000
| $3.74
|
| 8
| VALVE ASSY., RELIEF
| 15220-MM4-000
| $23.88
|
| 9
| BOLT-WASHER (6X12)
| 90021-MM5-000
| $2.89
|
| 10
| O-RING (14.8X2.2)
| 91313-MG7-004
| $2.09
|
| 11
| BOLT (12MM)
| 92800-12000
| $1.43
|
| 12
| WASHER (12MM)
| 94109-12000
| $0.40
|
| 13
| BOLT, FLANGE (6X28)
| 95701-06028-00
| $0.66
|
| 14
| BOLT, FLANGE (6X40)
| 95701-06040-00
| $0.66
|
| 15
| BOLT, FLANGE (6X50)
| 95701-06050-00
| $0.80
|
