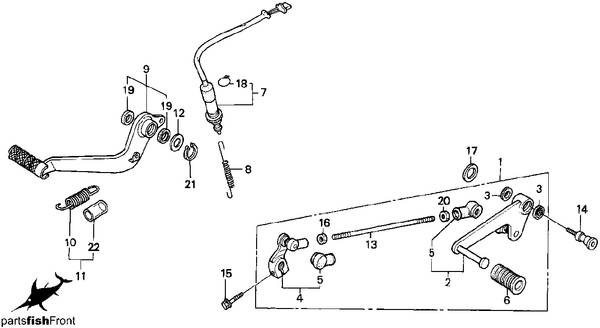

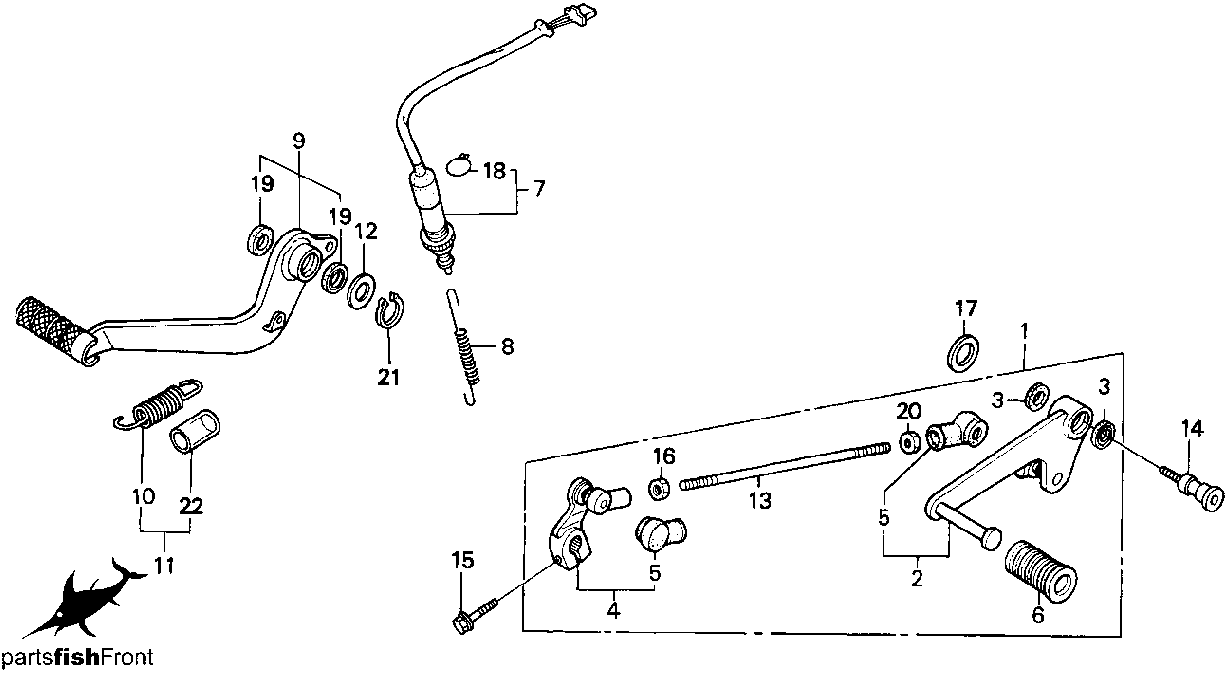

1993 Honda CBR 600 F2 partsfiche
919293949596 pedal
| no. | description | part number | list price
|
|---|
| 1
| PEDAL ASSY., CHANGE
| 24700-MV9-000
| $80.43
|
| 2
| PEDAL, GEARSHIFT
| 24705-MV9-000
| $55.11
|
| 3
| RUBBER, DUST SEAL
| 24706-MK3-770
| $2.52
|
| 4
| ARM COMP., CHANGE
| 24710-MV9-000
| $36.37
|
| 5
| COVER, DUST
| 24724-422-000
| $4.08
|
| 6
| RUBBER
| 24781-KR3-770
| $1.89
|
| 7
| SWITCH, RR. STOP
| 35350-MV9-000
| $10.78
|
| 8
| SPRING, STOP SWITCH
| 35357-KE1-000
| $3.45
|
| 9
| PEDAL, RR. BRAKE
| 46500-MV9-930
| $58.74
|
| 10
| SPRING, BRAKE PEDAL
| 46511-MV9-000
| $5.12
|
| 12
| BUSH, WASHER
| 53312-657-000
| $3.09
|
| 13
| BOLT, TIE ROD
| 90065-MV9-000
| $3.48
|
| 14
| BOLT, CHANGE PIVOT
| 90115-KAF-000
| $10.74
|
| 15
| BOLT, FLANGE (6X20)
| 90118-KY1-000
| $1.62
|
| 16
| NUT
| 90201-700-000
| $0.49
|
| 17
| WASHER (8MM)
| 90514-921-000
| $0.65
|
| 18
| CLIP, SWITCH COVER
| 90601-KAF-003
| $1.40
|
| 19
| DUST SEAL
| 91251-444-000
| $2.43
|
| 20
| NUT, HEX. (6MM)
| 94002-06020-0S
| $0.54
|
| 21
| CIRCLIP (15MM)
| 94511-15000
| $0.35
|
| 22
| TUBE (13X15X20)
| 95003-43002-20
| $0.48
|
