1993 Honda CBR 600 F2 partsfiche

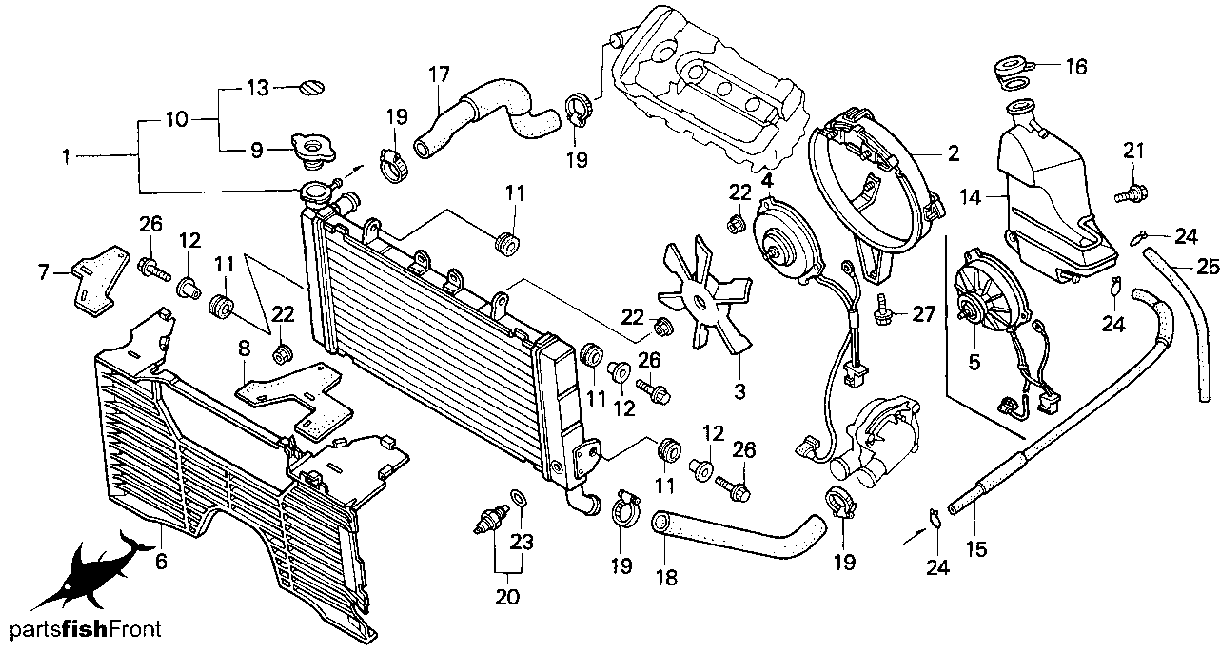

919293949596 radiator f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| RADIATOR COMP
| 19010-MV9-P00
| $500.80
|
| 2
| SHROUD COMP.
| 19015-MV9-003
| $56.51
|
| 3
| FAN COMP., COOLING
| 19025-MN4-003
| $30.20
|
| 4
| MOTOR, COOLING FAN
| 19030-MV9-000
| $226.77
|
| 5
| MOTOR ASSY., FAN
| 19030-MV9-931
| $221.09
|
| 6
| GRILLE, RADIATOR
| 19032-MV9-000
| $43.58
|
| 7
| RUBBER, R.
| 19033-MV9-000
| $3.28
|
| 8
| RUBBER, L.
| 19034-MV9-000
| $3.28
|
| 10
| CAP COMP., RADIATOR
| 19045-MV9-921
| $21.40
|
| 11
| RUBBER
| 19051-KA3-830
| $2.38
|
| 12
| RUBBER
| 19052-MN8-000
| $2.89
|
| 13
| SEAL, RADIATOR CAP
| 19055-MV9-921
| $4.80
|
| 14
| TK, RADIATOR RESERVE
| 19101-MV9-010
| $19.86
|
| 15
| TUBE
| 19102-MV9-000
| $18.45
|
| 16
| CAP, RESERVE TANK
| 19104-MB0-700
| $6.65
|
| 17
| HOSE, RADIATOR
| 19501-MV9-000
| $24.12
|
| 18
| HOSE, RADIATOR
| 19505-MV9-000
| $17.26
|
| 19
| CLAMP (30-37MM)
| 19516-GAG-003
| $7.86
|
| 20
| SWITCH, THERMOSTAT
| 37760-MT2-003
| $45.46
|
| 21
| BOLT, FLANGE (6MM)
| 90111-162-000
| $1.86
|
| 22
| NUT, SERRATE (5MM)
| 90315-MK3-003
| $1.22
|
| 23
| O-RING (13.5X1.4)
| 91307-PH7-660
| $1.37
|
| 24
| CLIP, TUBE (B10)
| 95002-02100
| $0.65
|
| 25
| BULK HOSE (5.5X3000)
| 95005-55003-20M
| $15.15
|
| 26
| BOLT, FLANGE (6X25)
| 95801-06025-07
| $0.62
|
| 27
| BOLT, FLANGE (6X10)
| 96001-06010-00
| $0.66
|
