1993 Honda CBR 600 F2 partsfiche

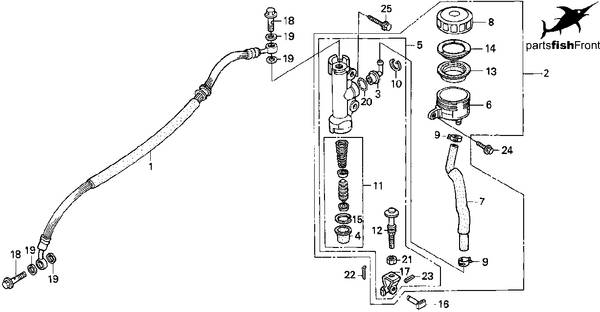

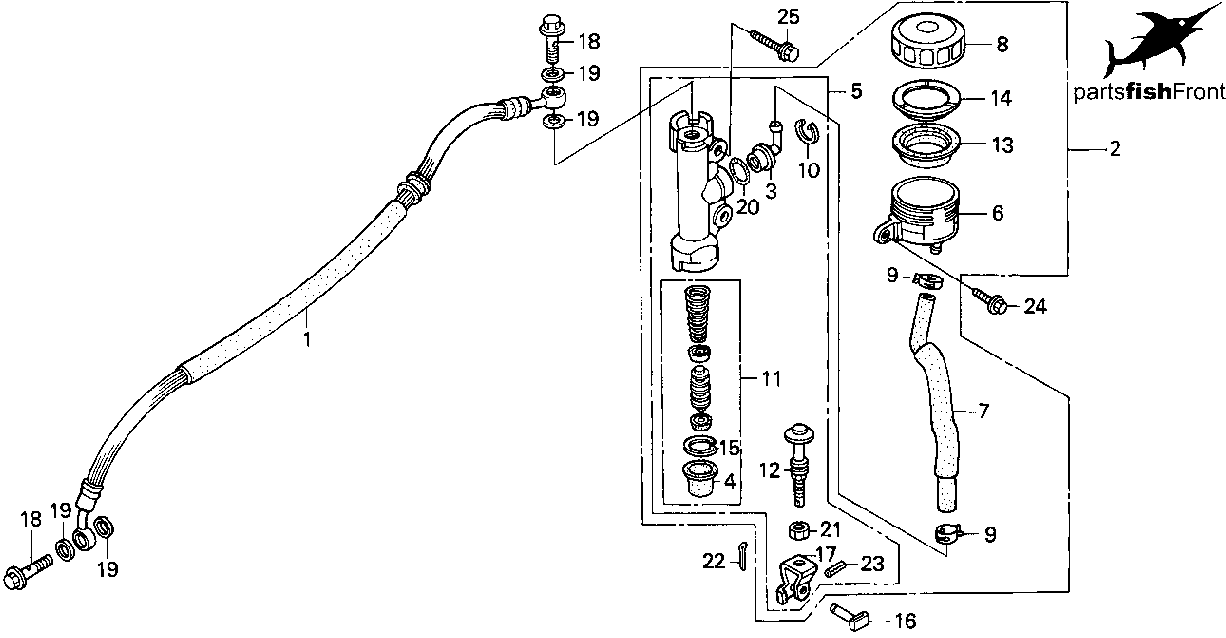

919293949596 rear brake master cylinder
| no. | description | part number | list price
|
|---|
| 1
| HOSE, RR. BRAKE
| 43310-MV9-003
| $42.80
|
| 2
| MASTER CYLINDER, RR.
| 43500-MV9-006
| $278.14
|
| 3
| CONNECTOR
| 43503-KS6-701
| $5.51
|
| 4
| BOOT COMP.
| 43504-MB2-006
| $5.48
|
| 6
| CUP COMP., OIL
| 43511-MR7-016
| $16.69
|
| 7
| HOSE
| 43512-MV9-000
| $12.51
|
| 8
| CAP COMP., OIL CUP
| 43513-MB4-672
| $17.15
|
| 9
| CLAMP
| 43514-KS6-701
| $8.37
|
| 10
| CIRCLIP, RR.
| 43517-KS6-701
| $2.15
|
| 11
| PISTON SET
| 43520-MJ6-305
| $39.14
|
| 12
| ROD COMP., PUSH
| 43530-MV9-006
| $18.17
|
| 13
| DIAPHRAGM
| 45520-300-000
| $4.91
|
| 14
| PLATE, DIAPHRAGM
| 45521-MJ6-006
| $2.28
|
| 15
| CIRCLIP
| 46182-500-013
| $2.12
|
| 16
| PIN D, JOINT
| 95015-54000
| $2.69
|
| 17
| JOINT, BRAKE ROD
| 46504-KV6-702
| $4.40
|
| 18
| BOLT, OIL (10X22)
| 90145-MS9-611
| $3.78
|
| 19
| WASHER, OIL BOLT
| 90545-300-000
| $1.89
|
| 20
| O-RING (14.8X2.4)
| 91212-422-006
| $1.31
|
| 21
| NUT, HEX. (8MM)
| 94001-08000-0S
| $0.45
|
| 22
| PIN, SPLIT (2.0X12)
| 94201-20120
| $0.34
|
| 23
| PIN, SPRING (2X10)
| 94305-20102
| $0.55
|
| 24
| BOLT, FLANGE (6X20)
| 95701-06020-08
| $0.08
|
| 25
| BOLT, FLANGE (6X20)
| 96001-06020-00
| $0.66
|
