1993 Honda CBR 600 F2 partsfiche

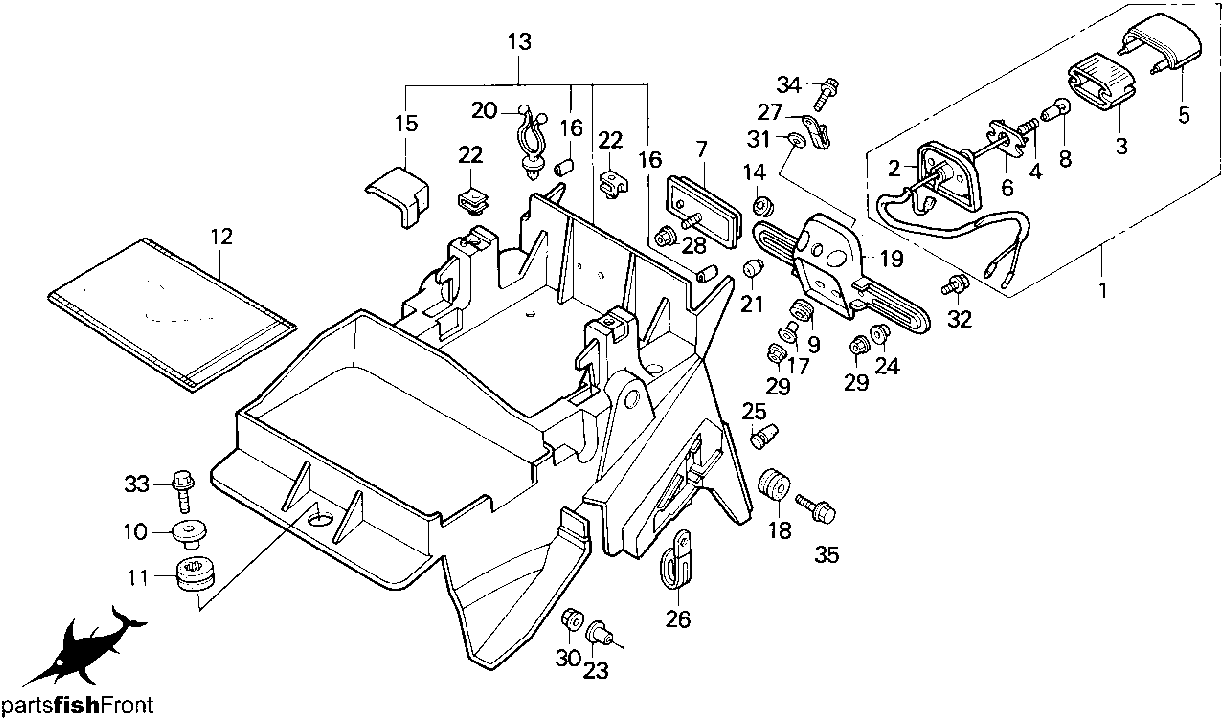

919293949596 rear fender
| no. | description | part number | list price
|
|---|
| 1
| LIGHT ASSY., LICENSE
| 33720-MV9-670
| $85.31
|
| 2
| BASE COMP.
| 33721-MB2-003
| $29.82
|
| 3
| LENS, LICENSE
| 33722-MB1-013
| $11.02
|
| 4
| WIRE, LICENSE LIGHT
| 33725-MV9-670
| $7.86
|
| 5
| COVER, LICENSE LIGHT
| 33727-ME4-671
| $14.66
|
| 6
| GASKET, LENS
| 33729-MB1-003
| $3.35
|
| 7
| REFLECTOR, REFLEX
| 33741-MS6-921
| $9.06
|
| 8
| BULB (12V4CP)
| 34909-505-610
| $0.67
|
| 9
| RUBBER, FR.
| 61103-357-000
| $1.72
|
| 10
| COLLAR, SETTING
| 61104-422-000
| $3.89
|
| 11
| RUBBER, SIDE SHELTER
| 64122-KV0-000
| $2.55
|
| 12
| BAG, SERVICE BOOK
| 77251-342-000
| $3.29
|
| 13
| FENDER A, RR.
| 80101-MAL-670
| $61.68
|
| 14
| GROMMET, CABLE
| 80102-323-000
| $0.71
|
| 16
| MOLDING, RR. FENDER
| 80104-MV4-300
| $0.97
|
| 17
| COLLAR, RR. FENDER
| 80114-KE2-940
| $2.22
|
| 18
| RUBBER, RR. FENDER
| 80152-958-680
| $3.03
|
| 19
| BRKT, NUMBER PLATE
| 84701-ML7-670
| $19.28
|
| 20
| CLAMP, HARNESS
| 90119-HA7-670
| $2.06
|
| 21
| NUT, SPECIAL (4MM)
| 90302-MB2-000
| $2.52
|
| 22
| NUT, CLIP (6MM)
| 90305-GK8-000
| $1.25
|
| 23
| COLLAR
| 90370-SC3-960
| $3.12
|
| 24
| WASHER (6X20)
| 90502-VA4-640
| $1.88
|
| 25
| PLUG, CONE TYPE
| 90899-422-610
| $1.29
|
| 26
| CLIP (2X70)
| 91410-MN1-671
| $1.48
|
| 27
| CLIP (2X60)
| 91410-679-000
| $4.52
|
| 28
| NUT, FLANGE (5MM)
| 94050-05000
| $0.45
|
| 29
| NUT, FLANGE (6MM)
| 94050-06000
| $0.54
|
| 30
| NUT, FLANGE (8MM)
| 94050-08000
| $0.54
|
| 31
| WASHER, PLAIN (6MM)
| 94103-06000
| $0.32
|
| 32
| BOLT, FLANGE (6X16)
| 95701-06016-00
| $0.55
|
| 33
| BOLT, FLANGE (6X20)
| 95701-06020-07
| $0.45
|
| 34
| BOLT, FLANGE (6X25)
| 95701-06025-08
| $0.60
|
| 35
| BOLT, FLANGE (8X30)
| 95801-08030-00
| $0.94
|
| 35
| BOLT, FLANGE (8X32)
| 95801-08032-00
| $1.06
|
