1993 Honda CBR 600 F2 partsfiche

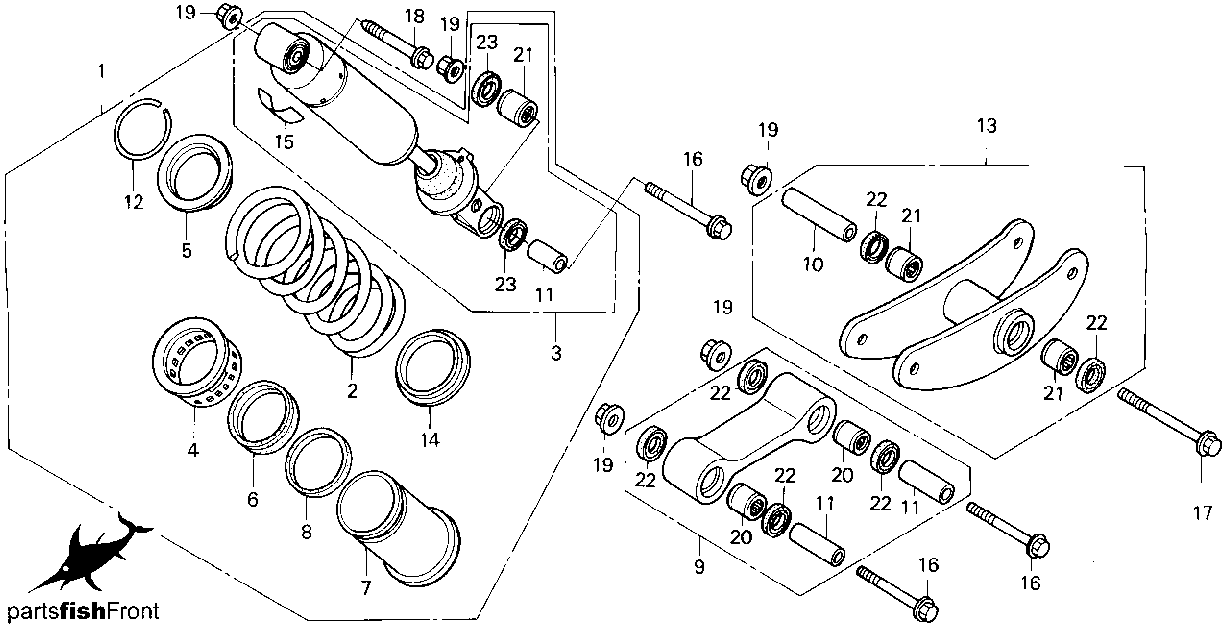

919293949596 rear shock absorber f2 919293
| no. | description | part number | list price
|
|---|
| 1
| SHOCK ABSORBER, RR.
| 52400-MV9-003
| $672.45
|
| 2
| SPRING, RR. SHOCK
| 52401-MV9-003
| $92.18
|
| 3
| DAMPER SET, RR.
| 52409-MV9-305
| $337.00
|
| 4
| ADJUSTER, SPRING
| 52422-KT8-013
| $28.51
|
| 5
| SEAT B, SPRING
| 52450-KT8-003
| $8.71
|
| 6
| DUST SEAL
| 52457-ML7-003
| $5.82
|
| 7
| GUIDE, SPRING
| 52458-KT8-013
| $7.69
|
| 8
| GROMMET
| 52459-KT8-003
| $2.28
|
| 9
| ROD ASSY.
| 52460-KV3-830
| $129.54
|
| 10
| COLLAR
| 52463-KM3-000
| $10.43
|
| 11
| COLLAR, SHOCK ARM
| 52463-KV3-000
| $6.85
|
| 12
| RING, STOPPER
| 52464-ML7-003
| $2.89
|
| 13
| ARM, SHOCK ABSORBER
| 52470-MV9-000
| $182.57
|
| 14
| SEAT, SPRING
| 52486-KT8-003
| $8.71
|
| 15
| LABEL, RR.
| 87516-KY7-911
| $3.77
|
| 16
| BOLT, FLANGE (10X64)
| 90105-GE3-760
| $6.89
|
| 17
| BOLT, FLANGE (10X90)
| 90107-969-000
| $8.63
|
| 18
| BOLT, FLANGE (10X55)
| 90120-HC4-000
| $3.65
|
| 19
| NUT, U (10MM)
| 90304-GE8-003
| $2.65
|
| 20
| BEARING (17X24X25)
| 91072-MJ0-003
| $13.15
|
| 21
| BEARING (17X24X20)
| 91072-KT7-003
| $14.14
|
| 22
| DUST SEAL (17X24X5)
| 91262-KV3-831
| $3.48
|
| 23
| OIL SEAL (17X27X5)
| 91262-MG7-005
| $2.55
|
