1993 Honda CBR 600 F2 partsfiche

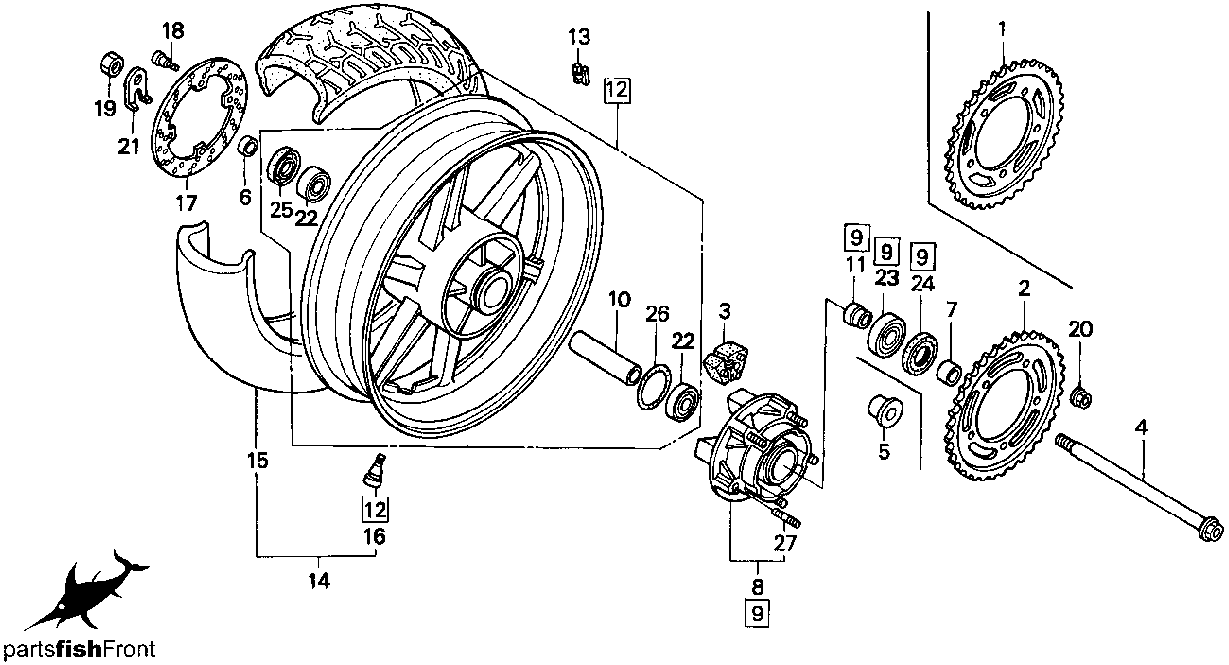

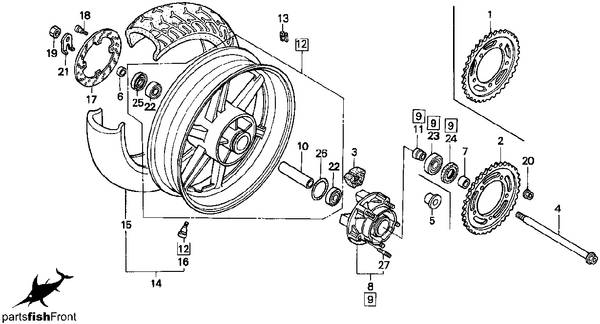

919293949596 rear wheel
| no. | description | part number | list price
|
|---|
| 2
| SPROCKET (43T)
| 41201-MV9-000
| $85.28
|
| 3
| DAMPER, RR. WHEEL
| 41241-MV9-000
| $9.06
|
| 4
| AXLE, RR. WHEEL
| 42301-MV9-000
| $37.20
|
| 6
| COLR, RR. WHEEL SIDE
| 42311-MG5-670
| $7.97
|
| 7
| COLR, RR. WHEEL SIDE
| 42311-MG5-670
| $7.97
|
| 8
| FLANGE, FINAL DRIVEN
| 42610-MV9-000
| $129.43
|
| 10
| COLLAR, RR.
| 42620-KV3-830
| $11.49
|
| 11
| COLLAR B, RR.
| 42625-MV4-000
| $12.92
|
| 12
| WHEEL SET *NH196*
| 42650-MV9-305ZA
| $655.35
|
| 12
| WHEEL SET, RR. *NH1*
| 42650-MV9-305ZC
| $632.82
|
| 13
| WEIGHT (10G)
| 42704-MB0-000
| $7.43
|
| 13
| WEIGHT (20G)
| 42705-MB0-000
| $7.43
|
| 13
| WEIGHT (30G)
| 42706-MB0-000
| $7.43
|
| 14
| TIRE (160/60ZR17)
| 42710-MV9-901
| $142.23
|
| 15
| TIRE (160/60ZR17)
| 42711-MAL-671
| $142.23
|
| 16
| VALVE, RIM
| 42753-ML7-003
| $6.95
|
| 17
| DISK, RR. BRAKE
| 43251-MV4-000
| $143.02
|
| 18
| BOLT, DISK (8X24)
| 90105-MV9-003
| $3.48
|
| 19
| NUT, AXLE (18MM)
| 90305-KA4-003
| $3.89
|
| 20
| NUT, FLANGE (12MM)
| 90306-KF0-003
| $2.80
|
| 21
| WASHER, RR. AXLE
| 90559-MV9-000
| $6.35
|
| 22
| BEARING (6204UU)
| 91052-MAE-004
| $15.02
|
| 23
| BEARING (62/22)
| 91073-MV4-782
| $7.86
|
| 24
| DUST SEAL (34X50X6)
| 91253-MV9-003
| $5.49
|
| 25
| DUST SEAL (34X50X6)
| 91253-MV9-003
| $5.49
|
| 26
| O-RING (61X2)
| 91302-MA6-003
| $2.97
|
| 27
| BOLT, STUD (12X28)
| 92918-12028-0E
| $1.74
|
