1993 Honda CBR 600 F2 partsfiche

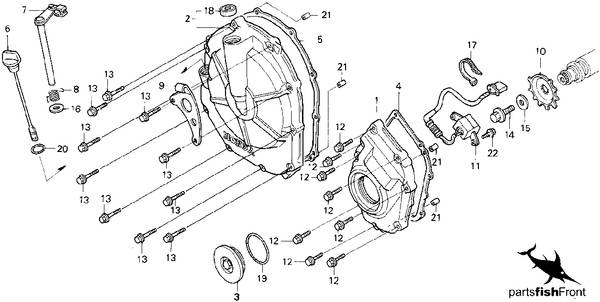

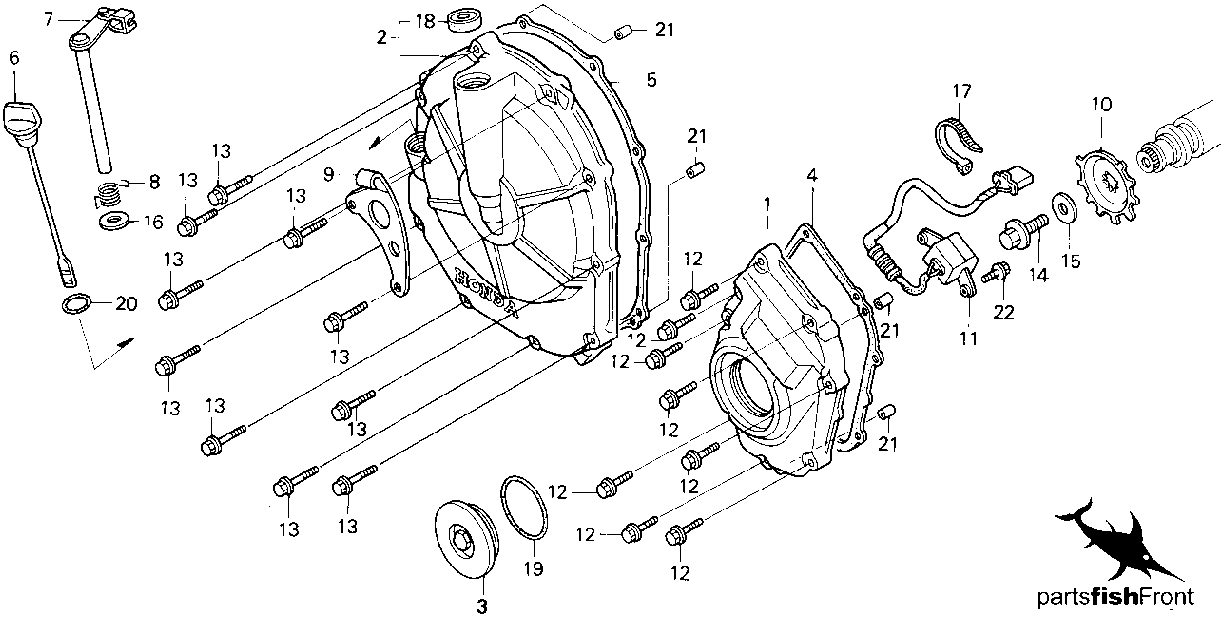

919293949596 right crankcase cover
| no. | description | part number | list price
|
|---|
| 1
| COVER, PULSER
| 11311-MAL-600
| $82.17
|
| 2
| COVER COMP., CLUTCH
| 11330-MV9-670
| $252.12
|
| 3
| CAP (45MM)
| 11332-MM5-000
| $9.83
|
| 4
| GASKET, PULSER COVER
| 11391-MV9-670
| $6.71
|
| 5
| GASKET, CLUTCH COVER
| 11393-MV9-670
| $11.18
|
| 6
| DIPSTICK, OIL
| 15650-MV9-770
| $9.85
|
| 7
| LEVER COMP., CLUTCH
| 22810-MV9-670
| $38.80
|
| 8
| SPRING, CLUTCH LEVER
| 22815-MV9-670
| $2.25
|
| 9
| RECEIVER
| 22821-MV9-670
| $4.49
|
| 10
| ROTOR, PULSE
| 30291-MV9-671
| $10.43
|
| 11
| ALTERNATOR, PULSE
| 30300-MV9-671
| $44.57
|
| 12
| BOLT, FLANGE (6X28)
| 90004-GHB-680
| $1.92
|
| 13
| BOLT, FLANGE (6X28)
| 90004-GHB-680
| $1.92
|
| 14
| BOLT (10X25)
| 90013-430-000
| $4.68
|
| 15
| WASHER (10.5X27)
| 90405-KT7-000
| $3.17
|
| 16
| WASHER, BRAKE ARM
| 90525-GC4-700
| $1.25
|
| 18
| OIL SEAL (12X18X5)
| 91204-KK0-003
| $2.86
|
| 19
| O-RING (48.1X3.6)
| 91301-ML7-003
| $2.23
|
| 20
| O-RING (18X3)
| 91302-KE8-003
| $1.34
|
| 21
| PIN, DOWEL (8X14)
| 94301-08140
| $0.85
|
| 22
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.54
|
