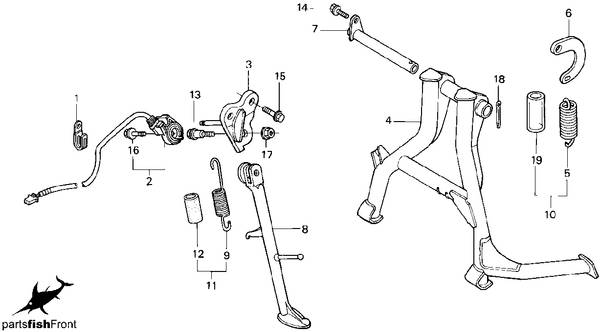

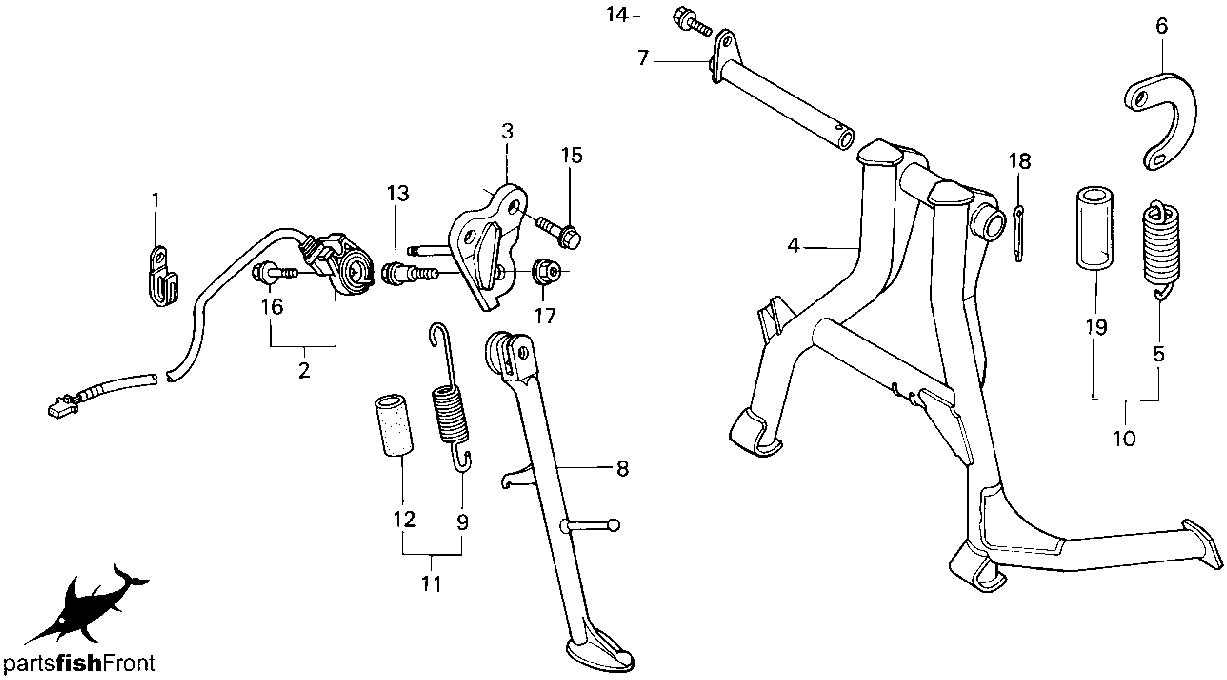

1993 Honda CBR 600 F2 partsfiche
919293949596 stand
| no. | description | part number | list price
|
|---|
| 1
| CLIP, BYSTARTER WIRE
| 32906-GR1-000
| $2.20
|
| 2
| SWITCH, SIDE STAND
| 35700-MV9-305
| $50.52
|
| 3
| BRACKET, SIDE STAND
| 50150-MV9-000
| $30.91
|
| 4
| STAND COMP., MAIN
| 50500-MV9-600
| $84.28
|
| 6
| PLATE
| 50523-425-000
| $3.75
|
| 7
| PIPE
| 50526-MV9-601
| $8.08
|
| 8
| BAR, SIDE STAND
| 50530-MV9-000
| $46.54
|
| 9
| SPRING, SIDE STAND
| 50541-MM4-000
| $4.37
|
| 10
| SPRING, MAIN STAND
| 50541-MT6-600
| $4.35
|
| 12
| TUBE
| 50543-MM4-000
| $4.71
|
| 13
| BOLT
| 90108-MK6-670
| $4.42
|
| 14
| BOLT, FLANGE (6X12)
| 90118-958-003
| $2.35
|
| 15
| BOLT, SPECIAL (10MM)
| 90037-MV9-600
| $4.17
|
| 16
| BOLT, SPECIAL (6X16)
| 90147-MK6-671
| $2.80
|
| 17
| NUT, SIDE STAND
| 90203-MF9-710
| $2.02
|
| 18
| PIN, COTTER (2.5MM)
| 94201-25300
| $0.38
|
| 19
| TUBE (22X27X60)
| 95003-60006-20
| $0.69
|
