1993 Honda CBR 600 F2 partsfiche

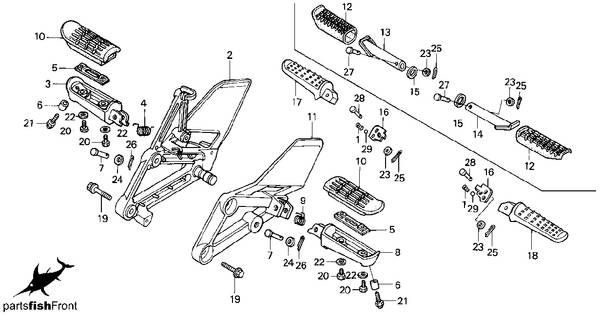

919293949596 step
| no. | description | part number | list price
|
|---|
| 1
| SPRING
| 28333-300-000
| $1.60
|
| 2
| HOLDER, R. STEP
| 50600-MV9-000
| $84.68
|
| 3
| ARM, R. STEP
| 50612-MM5-000
| $36.51
|
| 4
| SPRING, R.
| 50617-445-840
| $3.06
|
| 5
| PLATE, STEP SETTING
| 50619-MM5-000
| $4.45
|
| 6
| COLLAR (13MM)
| 50636-MV9-000
| $2.80
|
| 7
| PIN, STEP BAR
| 50639-ML0-010
| $2.94
|
| 8
| ARM, L. STEP
| 50642-MM5-000
| $36.51
|
| 9
| SPRING, L.
| 50644-445-840
| $3.06
|
| 10
| RUBBER, STEP
| 50661-MV9-000
| $7.35
|
| 12
| RUBBER, PILLION STEP
| 50710-KE8-000
| $7.75
|
| 13
| BAR, R. PILLION STEP
| 50711-KE8-000
| $17.20
|
| 14
| BAR, L. PILLION STEP
| 50712-KE8-000
| $17.20
|
| 15
| PLATE
| 50715-KE8-000
| $2.71
|
| 19
| BOLT, FLANGE (8X25)
| 90107-KT8-000
| $2.20
|
| 20
| BOLT
| 90115-MV9-000
| $2.03
|
| 21
| BOLT, CAP (8X25)
| 92501-08025-0A
| $1.75
|
| 22
| WASHER, PLAIN (5MM)
| 94101-05000
| $0.32
|
| 23
| WASHER, PLAIN (6MM)
| 94101-06800
| $0.18
|
| 24
| WASHER, PLAIN (8MM)
| 94102-08000
| $0.32
|
| 25
| PIN, SPLIT (1.6X12)
| 94201-16120
| $0.31
|
| 26
| PIN, SPLIT (2.0X15)
| 94201-20150
| $0.20
|
| 27
| PIN A, PILLION STEP
| 95015-81000
| $1.28
|
