1993 Honda CBR 600 F2 partsfiche

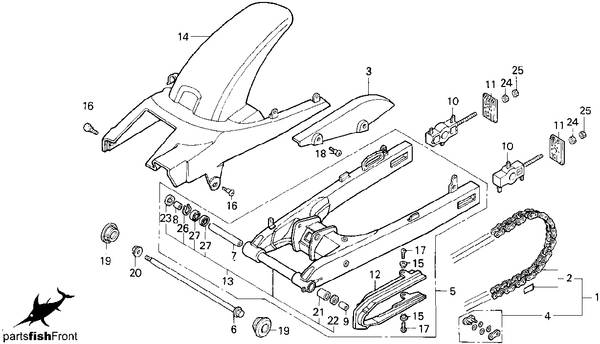

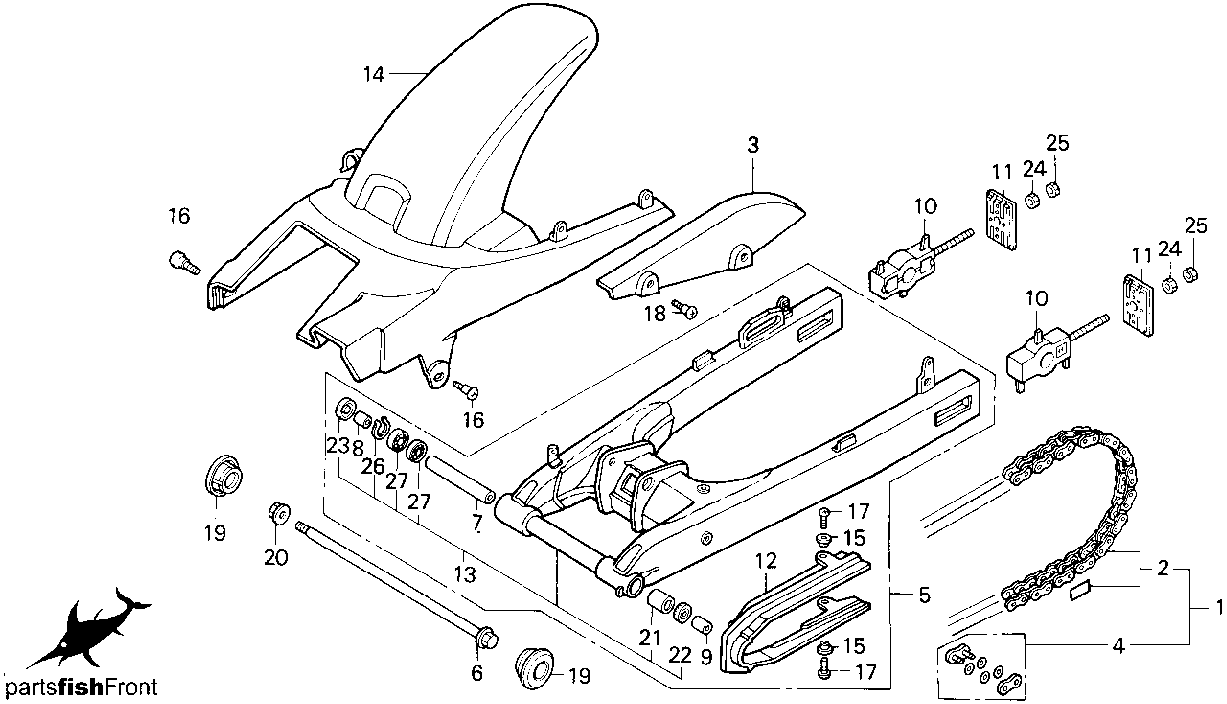

919293949596 swingarm
| no. | description | part number | list price
|
|---|
| 2
| CHAIN SET, DRIVE
| 405A3-MV9-005
| $116.28
|
| 3
| CASE, DRIVE CHAIN
| 40510-KY2-700
| $37.72
|
| 5
| SWINGARM *NH146M*
| 52100-MV9-000ZA
| $447.03
|
| 6
| BOLT, SWINGARM PIVOT
| 52101-MV9-000
| $33.66
|
| 7
| COLR, PIVOT DISTANCE
| 52102-MV9-000
| $8.38
|
| 8
| COLLAR B, RR.
| 52105-MJ0-000
| $2.89
|
| 9
| COLLAR B, PIVOT
| 52106-ML4-000
| $11.80
|
| 10
| TENSIONER, CHAIN
| 52120-MV9-010
| $21.63
|
| 11
| PLATE
| 52121-MV9-000
| $10.40
|
| 12
| SLIDER, CHAIN
| 52170-MV9-000
| $31.48
|
| 14
| FENDER, RR.
| 80201-MV9-000
| $94.95
|
| 15
| COLLAR
| 81312-GJ5-000
| $1.80
|
| 16
| BOLT, FR. DISK
| 90103-MN9-000
| $2.77
|
| 17
| SCREW, PAN (6X16)
| 90156-MV9-000
| $1.20
|
| 18
| SCREW (6X10)
| 90165-MV9-000
| $2.68
|
| 19
| CAP, R. RR.
| 90302-MN4-780
| $6.08
|
| 20
| NUT, U (14MM)
| 90305-GE8-003
| $3.35
|
| 21
| BEARING, NEEDLE
| 91071-mj0-004
| $20.09
|
| 22
| OIL SEAL (22X31X5)
| 91205-965-003
| $4.20
|
| 23
| DUST SEAL (22X35X7)
| 91213-MB2-003
| $4.23
|
| 24
| NUT, HEX. (8MM)
| 94001-08000-0S
| $0.45
|
| 25
| NUT, HEX. (8MM)
| 94030-08000
| $0.42
|
| 26
| CIRCLIP (35MM)
| 94520-35000
| $0.82
|
| 27
| BEARING (6202)
| 96100-62020-10
| $7.14
|
