1993 Honda CBR 600 F2 partsfiche

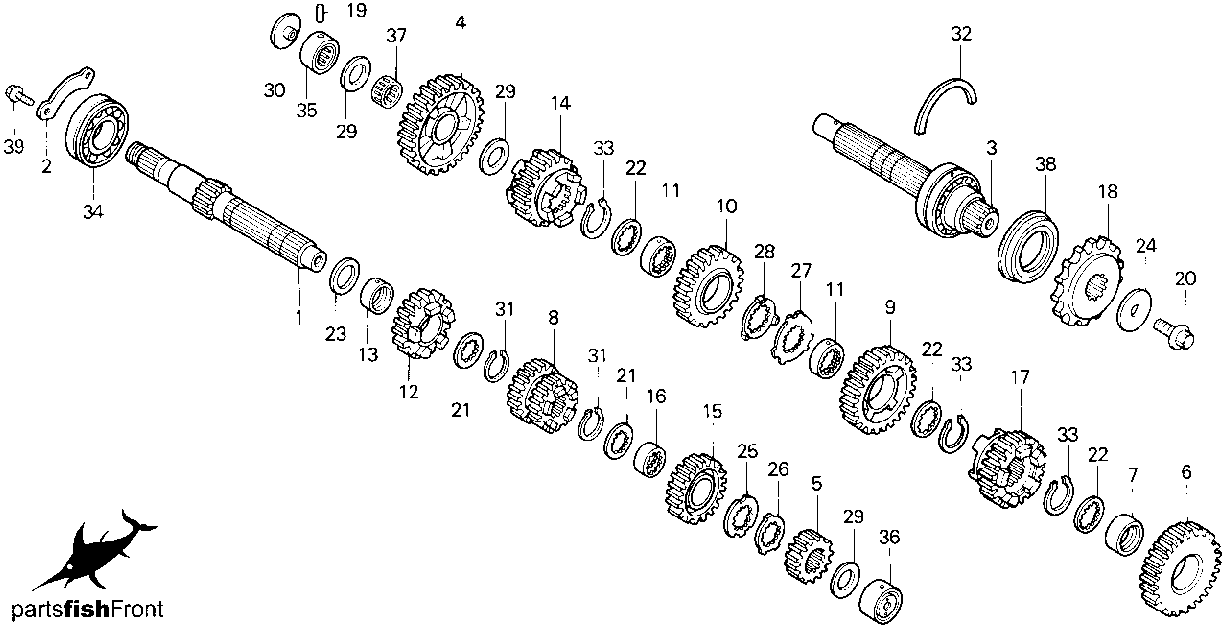

919293949596 transmission
| no. | description | part number | list price
|
|---|
| 1
| MAINSHAFT (14T)
| 23211-MV9-670
| $118.57
|
| 2
| PLATE
| 23212-MV9-670
| $5.49
|
| 3
| COUNTERSHAFT COMP.
| 23220-MV9-670
| $125.68
|
| 4
| GEAR (41T)
| 23421-MV9-670
| $95.45
|
| 5
| GEAR (16T)
| 23431-MV9-670
| $32.45
|
| 6
| GEAR (33T)
| 23441-MV9-670
| $87.46
|
| 7
| COLLAR (28MM)
| 23442-MM4-000
| $12.12
|
| 8
| GEAR (17T/19T)
| 23451-MV9-900
| $104.49
|
| 9
| GEAR (27T)
| 23461-MV9-670
| $83.91
|
| 10
| GEAR (26T)
| 23481-MV9-670
| $78.26
|
| 11
| COLLAR (28X31X9)
| 23482-MV9-670
| $10.29
|
| 12
| GEAR (20T)
| 23491-MV9-670
| $78.26
|
| 13
| COLLAR (25X14)
| 23496-MM4-000
| $12.12
|
| 14
| GEAR (24T)
| 23501-MAL-600
| $72.78
|
| 15
| GEAR (23T)
| 23511-MV9-670
| $87.11
|
| 16
| COLLAR (25X28X13)
| 23512-MV9-670
| $14.57
|
| 17
| GEAR (25T)
| 23521-MAL-600
| $85.88
|
| 18
| SPROCKET (15T)
| 23801-MAL-600
| $31.86
|
| 19
| PIN
| 24261-283-000
| $2.37
|
| 20
| BOLT, SPECIAL (10MM)
| 90037-422-003
| $4.17
|
| 21
| WASHER (25X31X1.5)
| 90451-KY2-000
| $2.20
|
| 22
| WASHER (28X34X1.5)
| 90452-MR7-000
| $3.29
|
| 23
| WASHER (25MM)
| 90456-MA6-000
| $1.80
|
| 24
| WASHER (10.2MM)
| 90459-438-000
| $3.35
|
| 25
| WASHER (25MM)
| 90461-KY2-000
| $2.80
|
| 26
| WASHER, LOCK (25MM)
| 90462-KAZ-000
| $4.88
|
| 27
| WASHER (28MM)
| 90463-MR7-000
| $5.54
|
| 28
| WASHER, LOCK (28MM)
| 90464-MR7-000
| $5.54
|
| 29
| WASHER (20X0.9)
| 90469-ME5-000
| $2.52
|
| 30
| PLATE, ORIFICE
| 90559-MM4-000
| $2.38
|
| 31
| CIRCLIP (25MM)
| 90601-107-000
| $2.08
|
| 32
| SET-RING (62MM)
| 90602-ML7-000
| $4.63
|
| 33
| CIRCLIP (28MM)
| 90603-MN4-000
| $2.08
|
| 34
| BEARING, BALL (6305)
| 91004-689-000
| $22.91
|
| 35
| BEARING (20X34X16.8)
| 91023-MM4-003
| $8.32
|
| 36
| BEARING (20MM)
| 91025-MV9-671
| $25.75
|
| 37
| BEARING (20X24X10)
| 91102-MM4-003
| $4.48
|
| 38
| OIL SEAL (40X62X8.4)
| 91207-MAL-601
| $7.37
|
| 39
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.54
|
