1993 Honda CBR 600 F2 partsfiche

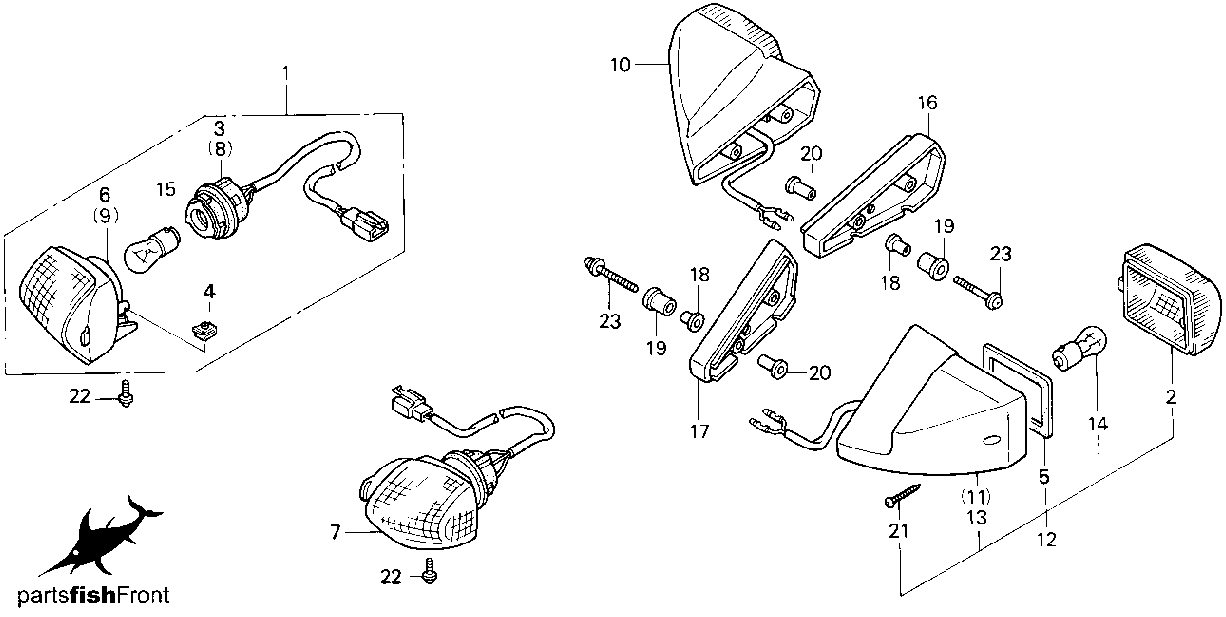

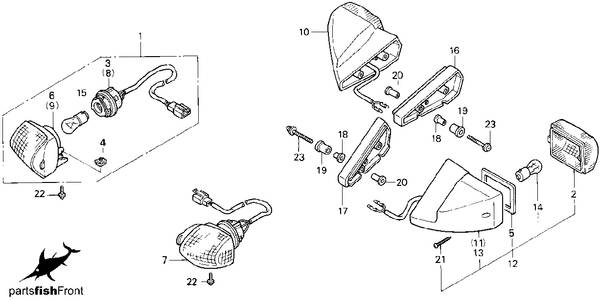

919293949596 turn signal f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| TURN SIGNAL ASSY.
| 33400-MV9-671
| $44.42
|
| 2
| LENS, TURN SIGNAL
| 33402-MG2-003
| $6.58
|
| 3
| SOCKET COMP., R. FR.
| 33405-MV9-671
| $13.09
|
| 4
| NUT, SPECIAL
| 33407-MB2-003
| $2.28
|
| 5
| GASKET, LENS
| 33407-MM5-003
| $2.80
|
| 6
| TURN SIGNAL SUB, R.
| 33410-MV9-601
| $32.08
|
| 7
| TURN SIGNAL ASSY.
| 33450-MV9-671
| $44.42
|
| 8
| SOCKET COMP., L. FR.
| 33455-MV9-671
| $13.09
|
| 9
| TURN SIGNAL SUB, L.
| 33460-MV9-601
| $32.08
|
| 10
| TURN SIGNAL ASSY.
| 33600-ML7-980
| $39.77
|
| 11
| BASE COMP., R. RR.
| 33604-ML7-980
| $36.11
|
| 12
| TURN SIGNAL ASSY.
| 33650-MV9-670
| $39.77
|
| 13
| BASE COMP., L. RR.
| 33654-MV9-670
| $30.69
|
| 14
| BULB (12V 23W)
| 34905-268-671
| $2.14
|
| 15
| BULB (12V 23/8W)
| 34905-425-671
| $3.55
|
| 16
| SPACER, R. RR.
| 80102-MM5-710
| $13.29
|
| 17
| SPACER, L. RR.
| 80103-MM5-710
| $13.29
|
| 18
| COLLAR
| 80125-MM5-000
| $2.52
|
| 19
| RUBBER
| 80126-MM5-000
| $2.52
|
| 20
| COLLAR A
| 80135-MM5-000
| $2.52
|
| 21
| SCREW, TAP (3X30)
| 90157-MV9-600
| $1.45
|
| 22
| SCREW-WASHER (4X12)
| 93891-04012-07
| $0.45
|
| 23
| SCREW-WASHER (5X45)
| 93894-05045-00
| $0.72
|
