1993 Honda CBR 600 F2 partsfiche

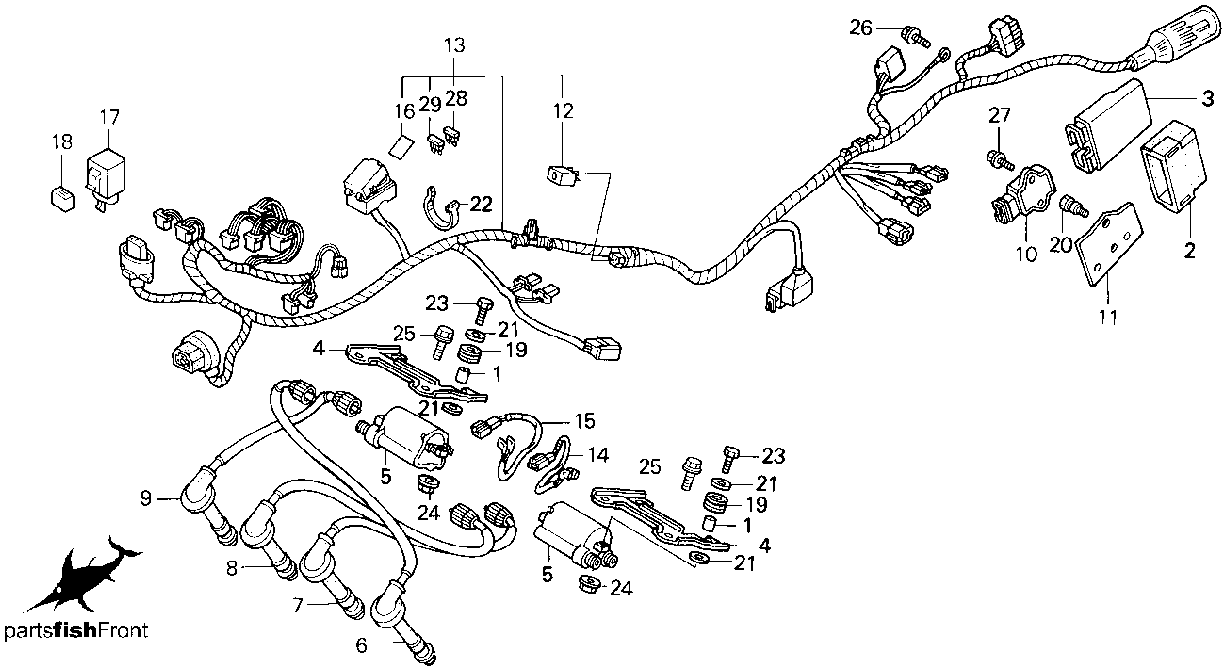

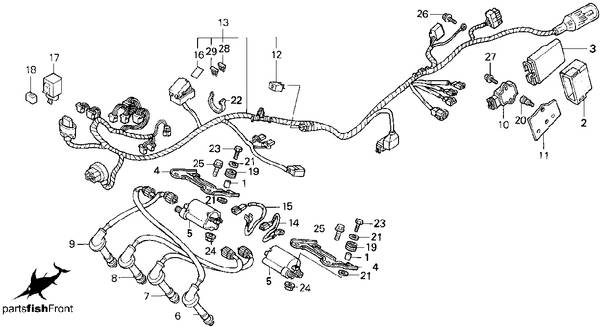

919293949596 wire harness f2 91929394
| no. | description | part number | list price
|
|---|
| 1
| COLLAR
| 17221-KA4-300
| $1.55
|
| 2
| RUBBER, SPARK UNIT
| 30405-MT6-000
| $13.94
|
| 3
| MODULE, IGN CONT
| 30410-MV9-770
| $473.25
|
| 4
| STAY, IGNITION COIL
| 30507-MV9-000
| $15.05
|
| 5
| COIL COMP., IGNITION
| 30510-KT7-023
| $77.72
|
| 6
| CAP 1, IGNITION
| 30751-MV9-000
| $32.71
|
| 7
| CAP 2, IGNITION
| 30752-MV9-000
| $39.91
|
| 8
| CAP 3, IGNITION
| 30753-MV9-000
| $32.71
|
| 9
| CAP 4, IGNITION
| 30754-MV9-000
| $39.91
|
| 10
| RECTIFIER, REGULATE
| 31600-MV4-000
| $172.95
|
| 11
| SPACER
| 31605-MV9-000
| $11.69
|
| 12
| RECTIFIER COMP.
| 31700-196-000
| $18.49
|
| 13
| WIRE HARNESS
| 32100-MV9-670
| $184.74
|
| 14
| SUB-HARNESS (1)
| 32105-MV9-000
| $9.37
|
| 15
| SUB-HARNESS (2)
| 32106-MV9-000
| $9.92
|
| 16
| LABEL, FUSE
| 38215-MV9-600
| $3.25
|
| 17
| RELAY, TURN SIGNAL
| 38301-KK9-952
| $33.58
|
| 18
| SUSPENSION
| 38306-KK4-000
| $2.20
|
| 19
| RUBBER, SIDE SHELTER
| 64121-KV0-000
| $2.11
|
| 20
| BOLT
| 90107-449-000
| $1.86
|
| 21
| WASHER (6MM)
| 90485-286-000
| $1.09
|
| 22
| BAND, WIRE HARNESS
| 90651-MA6-720
| $2.48
|
| 23
| BOLT, HEX. (6X28)
| 92101-06028-0A
| $0.57
|
| 24
| NUT, FLANGE (6MM)
| 94050-06000
| $0.54
|
| 25
| BOLT, FLANGE (6X12)
| 95701-06012-08
| $0.17
|
| 26
| BOLT, FLANGE (6X12)
| 96001-06012-00
| $0.60
|
| 28
| FUSE, BLADE (10A)
| 98200-31000
| $0.45
|
| 29
| FUSE, BLADE (15A)
| 98200-31500
| $0.45
|
