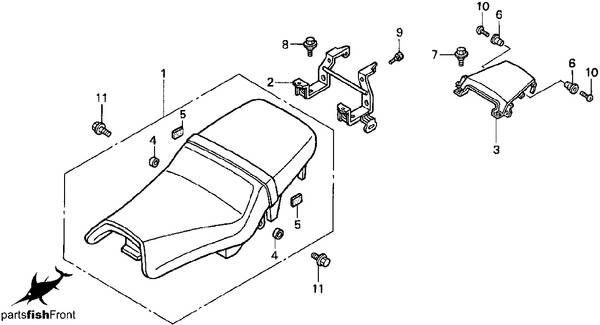

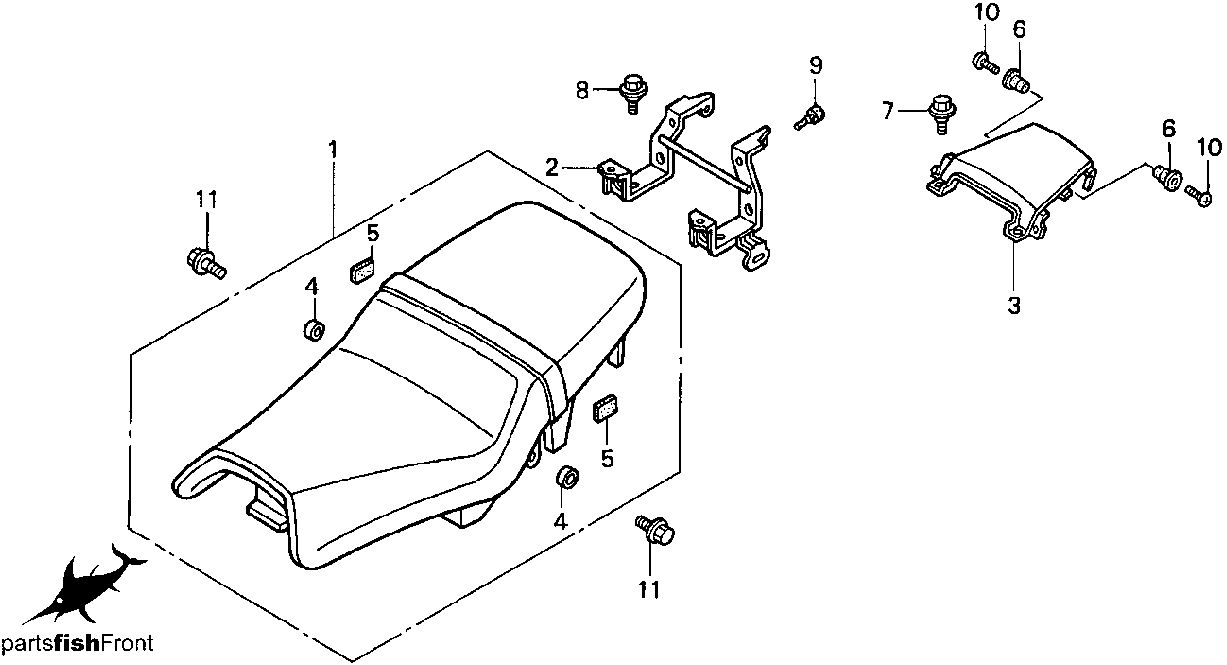

seat
| no. | description | part number | list price |
|---|---|---|---|
| 1 | SEAT ASSY., DOUBLE | 77200-MAL-A00 | $194.66 |
| 2 | STAY, SEAT COWL | 77211-MAL-E00 | $28.72 |
| 3 | behind the seat thingie | ???? | $??? |
| 4 | COLLAR, RR. FENDER | 80108-ME4-000 | $1.42 |
| 6 | NUT (5MM) | 90111-KW3-003 | $2.55 |
| 7 | BOLT, FLANGE (6MM) | 90111-147-000 | $1.86 |
| 8 | BOLT, FLANGE (6MM) | 90111-187-000 | $3.22 |
| 9 | RUBBER | 91637-MAL-E00 | $1.85 |
| 10 | SCREW, PAN (5X14) | 93500-05014-0H | $0.34 |
| 11 | BOLT, FLANGE (8X16) | 95801-08016-00 | $0.66 |
