1998 Honda VFR 800 Interceptor partsfiche

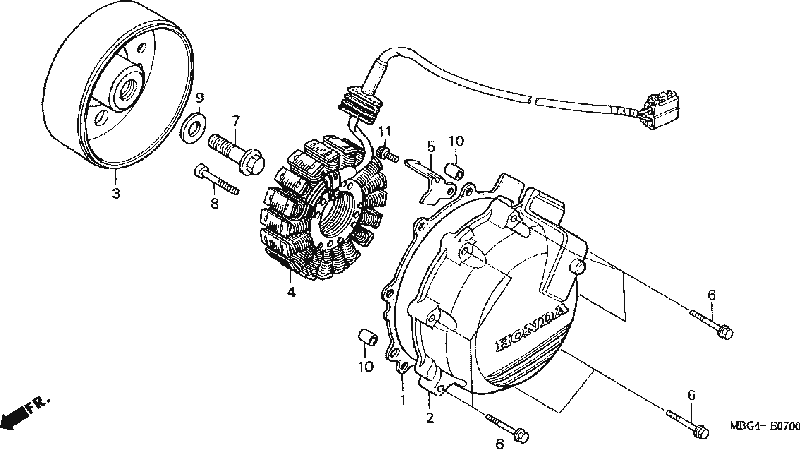

alternator
| Part Number | Description | Part Number | Average Price
|
| 1
| GASKET
| 11636-MBG-000
| $10.33
|
| 2
| COVER, ALTERNATOR
| 11641-MW4-000
| $174.07
|
| 3
| FLYWHEEL
| 31110-MBG-003
| $231.67
|
| 4
| STATOR
| 31120-MBG-003
| $195.76
|
| 5
| CLAMP
| 31131-MR7-000
| $2.84
|
| 6
| BOLT, FLANGE (6X32)
| 90004-GHB-690
| $2.44
|
| 7
| BOLT, FLANGE (10MM)
| 90023-MV9-670
| $6.82
|
| 8
| BOLT, TORX (6X38)
| 90085-MW4-000
| $5.42
|
| 9
| WASHER (10.5X27)
| 90405-KT7-000
| $3.56
|
| 10
| DOWEL PIN (8X14)
| 94301-08140
| $0.88
|
| 11
| BOLT, SOCKET (6X10)
| 96600-06010-00
| $0.62
|
