1998 Honda VFR 800 Interceptor partsfiche

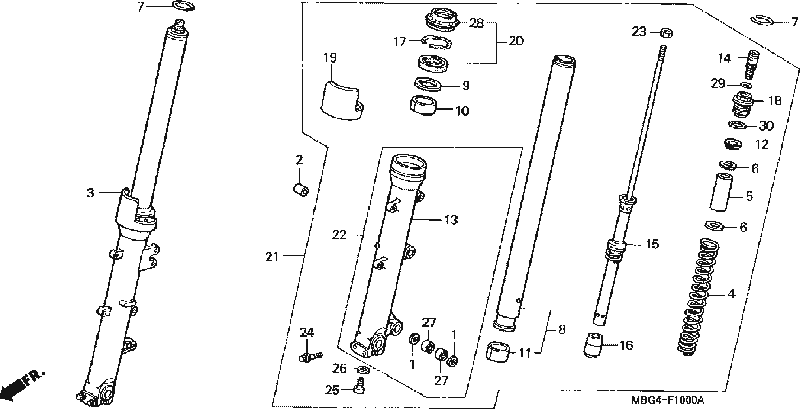

front fork
| Part Number | Description | Part Number | Average Price
|
| 1
| DUST SEAL, BRAKE CAM
| 45134-KB7-005
| $1.89
|
| 2
| COLLAR, PIVOT
| 45452-MZ2-000
| $6.15
|
| 3
| FORK ASSY., R. FR.
| 51400-MBG-003
| $477.13
|
| 4
| SPRING, FR. FORK
| 51401-MBG-003
| $39.89
|
| 5
| COLLAR, SPRING
| 51402-MS2-003
| $10.27
|
| 6
| SEAT, SPRING
| 51403-KF0-003
| $3.04
|
| 7
| RING, STOPPER
| 51405-MB4-003
| $3.73
|
| 8
| PIPE, FR. FORK
| 51410-MBG-003
| $178.42
|
| 9
| RING, BACK-UP
| 51412-MB4-003
| $5.91
|
| 10
| BUSH, GUIDE
| 51414-KCR-003
| $8.62
|
| 11
| BUSH, SLIDER
| 51415-KCR-003
| $7.09
|
| 12
| SEAT, SPRING
| 51415-MS2-003
| $6.82
|
| 13
| CASE, R. (LOWER)
| 51420-MBG-003
| $222.98
|
| 14
| ADJUSTER, SPRING
| 51422-KV3-831
| $42.96
|
| 15
| DAMPER, FR.
| 51430-MBG-003
| $164.89
|
| 16
| PIECE, OIL LOCK
| 51432-MS2-003
| $18.40
|
| 17
| RING
| 51447-KA4-711
| $2.87
|
| 18
| BOLT, FR. FORK
| 51454-KV3-831
| $50.93
|
| 19
| PROTECTOR, FORK PIPE
| 51460-MT3-611
| $6.58
|
| 20
| SEAL SET, FR. FORK
| 51490-MN8-305
| $20.29
|
| 21
| FORK ASSY., L. FR.
| 51500-MBG-003
| $477.13
|
| 22
| CASE, L. (LOWER)
| 51520-MBG-003
| $222.98
|
| 23
| NUT, HEX. (10MM)
| 51451-MAJ-G41
| $1.65
|
| 24
| BOLT, FLANGE (8X45)
| 90109-MR7-000
| $3.15
|
| 25
| BOLT, SOCKET (8MM)
| 90116-383-721
| $3.27
|
| 26
| WASHER (8MM)
| 90544-283-000
| $1.67
|
| 27
| BEARING (14X20X12)
| 91101-KG8-003
| $22.22
|
| 28
| DUST SEAL
| 91254-MM8-003
| $10.93
|
| 29
| O-RING (13.8X2.4)
| 91311-MR7-003
| $1.05
|
| 30
| O-RING (21.7X3.5)
| 91356-KF0-003
| $2.35
|
