1998 Honda VFR 800 Interceptor partsfiche

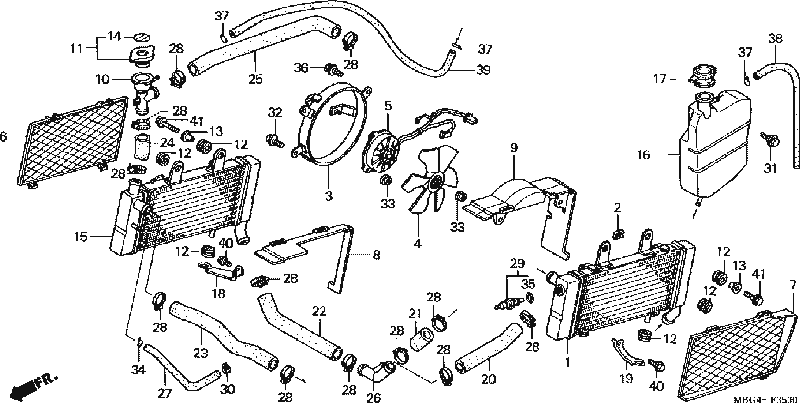

radiator
| Part Number | Description | Part Number | Average Price
|
| 1
| RADIATOR, L.
| 19010-MBG-000
| $257.35
|
| 2
| NUT, SET
| 19014-KEA-003
| $2.02
|
| 3
| SHROUD
| 19015-MBG-000
| $53.25
|
| 4
| FAN, COOLING
| 19020-MG8-003
| $33.91
|
| 5
| MOTOR ASSY., FAN
| 19030-MBG-000
| $166.20
|
| 6
| GRILLE, R. RADIATOR
| 19032-MBG-000
| $20.80
|
| 7
| GRILLE, L. RADIATOR
| 19033-MBG-000
| $20.80
|
| 8
| GUIDE, R. RADIATOR
| 19034-MBG-000
| $19.53
|
| 9
| GUIDE, L. RADIATOR
| 19035-MBG-000
| $25.11
|
| 10
| NECK, FILLER
| 19038-MAL-601
| $34.96
|
| 11
| CAP, RADIATOR
| 19045-GBF-700
| $28.45
|
| 12
| RUBBER
| 19051-KA3-830
| $2.67
|
| 13
| COLLAR
| 19052-MN8-000
| $3.25
|
| 14
| SEAL, RADIATOR CAP
| 19055-MV9-881
| $5.65
|
| 15
| RADIATOR, R.
| 19060-MBG-000
| $257.35
|
| 16
| TK, RADIATOR RESERVE
| 19101-MBG-000
| $24.53
|
| 17
| CAP, RESERVE TANK
| 19104-MB0-700
| $7.45
|
| 18
| STAY, R. RADIATOR
| 19132-MBG-000
| $7.45
|
| 19
| STAY, L. RADIATOR
| 19135-MBG-000
| $8.36
|
| 20
| HOSE, RADIATOR
| 19501-MBG-000
| $12.15
|
| 21
| HOSE, L. RADIATOR
| 19502-MBG-000
| $5.82
|
| 22
| HOSE, R. RADIATOR
| 19503-MBG-000
| $13.78
|
| 23
| HOSE (UPPER)
| 19504-MBG-000
| $15.64
|
| 24
| HOSE, RADIATOR
| 19505-MBG-000
| $6.42
|
| 25
| HOSE, R. RADIATOR
| 19506-MBG-000
| $22.13
|
| 26
| JOINT, THREE-WAY
| 19507-MBG-000
| $18.45
|
| 27
| HOSE
| 19508-MBG-000
| $11.95
|
| 28
| CLAMP (30-37MM)
| 19516-GAG-003
| $8.82
|
| 29
| SWITCH, THERMOSTAT
| 37760-MT2-003
| $51.04
|
| 30
| CLAMP
| 45514-KV3-006
| $8.58
|
| 31
| BOLT, FLANGE (6MM)
| 90116-ME9-000
| $2.09
|
| 32
| BOLT-WASHER (6X16)
| 90120-KCR-003
| $2.80
|
| 33
| NUT, SERRATE (5MM)
| 90315-MK3-003
| $1.36
|
| 34
| CLIP, TUBE
| 90651-KV0-700
| $2.64
|
| 35
| O-RING (13.5X1.4)
| 91307-611-000
| $1.45
|
| 36
| BOLT-WASHER (6X20)
| 93401-06020-08
| $1.12
|
| 37
| CLIP, TUBE (B10)
| 95002-02100
| $0.68
|
| 38
| BULK HOSE (5.5X3000)
| 95005-55003-20M
| $15.95
|
| 40
| BOLT, FLANGE (6X12)
| 96001-06012-00
| $0.63
|
| 41
| BOLT, FLANGE (6X25)
| 96001-06025-07
| $0.68
|
