1998 Honda VFR 800 Interceptor partsfiche

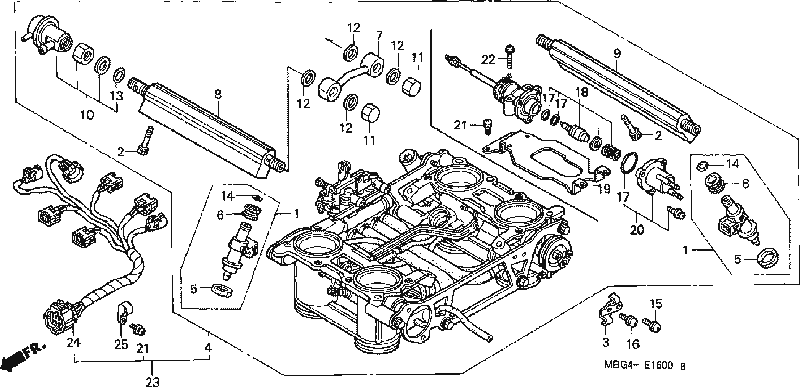

throttle body assembly
| Part Number | Description | Part Number | Average Price
|
| 1
| INJECTOR SET, FUEL
| 06164-PCA-000
| $111.29
|
| 2
| BOLT
| 16080-MBG-000
| $1.04
|
| 3
| STAY, WIRE
| 16119-ML5-004
| $11.53
|
| 4
| BODY ASSY. (GQ30A A)
| 16400-MBG-000
| $1,290.82
|
| 4
| BODY ASSY. (GQ30B A)
| 16400-MBG-770
| $1,290.82
|
| 4
| BODY ASSY. (GQ31B A)
| 16400-MBG-L01
| $1,504.87
|
| 5
| SEAL RING, INJECTOR
| 16472-PH7-003
| $4.63
|
| 6
| RUBBER RING
| 16473-PD6-000
| $4.58
|
| 7
| PIPE, FUEL FEED
| 16527-MBG-000
| $34.67
|
| 8
| PIPE, FR. FUEL
| 16610-MBG-000
| $12.27
|
| 9
| PIPE, RR. FUEL
| 16620-MBG-000
| $14.73
|
| 10
| REGULATOR, PRESSURE
| 16740-MBG-003
| $60.07
|
| 11
| NUT A (12MM)
| 90201-PD1-000
| $2.68
|
| 12
| WASHER (12MM)
| 90428-PD6-003
| $2.37
|
| 13
| O-RING (9.8X1.9)
| 91301-PM5-A01
| $1.40
|
| 14
| O-RING (7.3X2.2)
| 91301-PM7-003
| $1.23
|
| 15
| SCREW-WASHER (4X8)
| 93892-04008-00
| $0.29
|
| 16
| SCREW-WASHER (5X8)
| 93892-05008-10
| $0.47
|
| 17
| GASKET SET B
| 16011-MAT-E01
| $3.75
|
| 18
| ELEMENT SET, WAX
| 16044-MAT-E01
| $17.29
|
| 19
| STAY
| 16169-MBG-D01
| $9.58
|
| 20
| CASE SET, WAX
| 16502-MAT-E01
| $30.87
|
| 21
| SCREW-WASHER (5X10)
| 93892-05010-00
| $0.29
|
| 22
| SCREW-WASHER (5X30)
| 93892-05030-10
| $0.57
|
| 23
| BODY ASSY. (GQ31A A)
| 16400-MBG-D01
| $1,504.87
|
| 24
| SUB-HARNESS
| 32103-MBG-000
| $47.42
|
| 25
| CLIP (14MM)
| 90628-750-000
| $1.74
|
