Honda VTR 1000 SuperHawk partsfiche

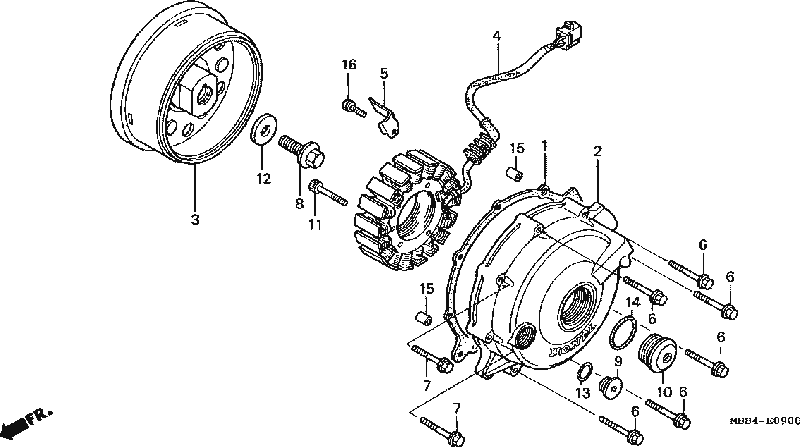

alternator
| Part Number | Description | Part Number | Average Price
|
| 1
| GASKET
| 11636-MBB-000
| $8.16
|
| 2
| COVER, ALTERNATOR
| 11641-MBB-000
| $133.49
|
| 3
| FLYWHEEL
| 31110-MBB-641
| $261.38
|
| 4
| STATOR
| 31120-MBB-641
| $266.16
|
| 5
| CLAMP
| 31131-MR7-000
| $2.84
|
| 6
| BOLT, FLANGE (6X45)
| 90005-GHB-720
| $2.22
|
| 7
| BOLT, FLANGE (6X50)
| 90005-GHB-730
| $1.95
|
| 8
| BOLT (12X45)
| 90024-MBB-000
| $4.05
|
| 8
| BOLT, FLANGE (12X45)
| 90023-MBT-010
| $4.05
|
| 9
| CAP (14MM)
| 90084-MN8-010
| $7.84
|
| 10
| CAP (30MM)
| 90087-KT7-000
| $12.05
|
| 11
| BOLT, SOCKET (6X40)
| 90116-375-000
| $2.56
|
| 12
| WASHER (12.5X36X6)
| 90402-MBB-000
| $2.49
|
| 13
| O-RING (13.8X2.5)
| 91303-377-000
| $2.78
|
| 14
| O-RING (29.7X2.4)
| 91356-425-005
| $2.25
|
| 14
| O-RING (30MM)
| 91356-425-003
| $2.25
|
| 15
| DOWEL PIN (8X14)
| 94301-08140
| $0.88
|
| 16
| BOLT, SOCKET (6X10)
| 96600-06010-00
| $0.62
|
