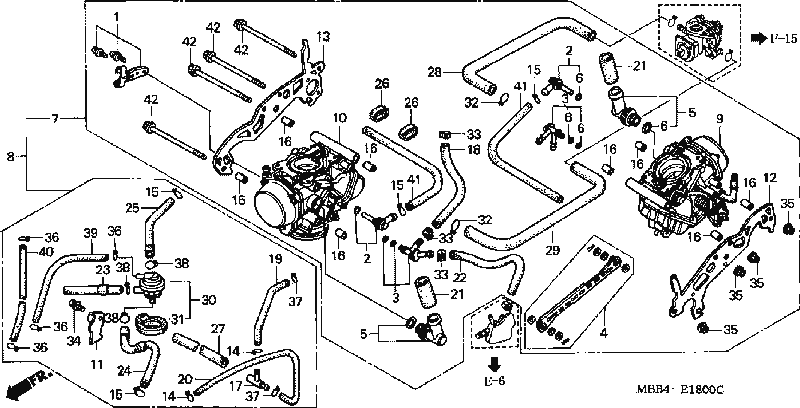

carburetor assembly
| Part Number | Description | Part Number | Average Price |
|---|---|---|---|
| 1 | STAY SET, WIRE | 16018-KAZ-780 | $10.24 |
| 2 | JOINT SET | 16024-MBB-640 | $17.95 |
| 3 | JOINT SET | 16026-MBB-640 | $14.38 |
| 4 | LEVER SET, LINK | 16035-MBB-640 | $16.33 |
| 5 | JOINT SET | 16038-MBB-640 | $17.95 |
| 6 | GASKET SET | 16040-MBB-640 | $4.76 |
| 7 | CARBURETOR ASSY. | 16100-MBB-670 | $932.82 |
| 10 | CARBURETOR ASSY. | 16102-MBB-670 | $460.20 |
| 11 | STAY, CONTROL VALVE | 16117-MBB-680 | $5.11 |
| 12 | PLATE, L. STAY | 16119-MBB-640 | $49.04 |
| 13 | PLATE, R. STAY | 16120-MBB-640 | $49.04 |
| 14 | CLIP, TUBE | 16163-GHB-600 | $1.45 |
| 15 | CLIP, TUBE (B6.5) | 16163-GHB-610 | $1.31 |
| 16 | PIN, DOWEL | 16178-MZ0-000 | $3.13 |
| 17 | T-JOINT | 16179-MB2-881 | $18.25 |
| 18 | HOSE, WATER | 16191-MBB-640 | $9.05 |
| 19 | TUBE | 16191-MBB-680 | $4.44 |
| 20 | TUBE | 16192-MBB-680 | $6.72 |
| 22 | HOSE, WATER | 16194-MBB-640 | $12.93 |
| 23 | TUBE, AIR VENT | 16196-MBB-680 | $4.44 |
| 24 | TUBE | 16197-MBB-680 | $4.89 |
| 26 | BAND, RUBBER | 16199-MBB-640 | $1.60 |
| 27 | TUBE | 16199-MBB-680 | $6.49 |
| 28 | TUBE A, FUEL | 16951-MBB-640 | $11.29 |
| 29 | TUBE B, FUEL | 16952-MBB-640 | $11.29 |
| 30 | VALVE ASSY. | 17300-MBB-681 | $155.64 |
| 31 | RUBBER, SETTING | 17305-MJ4-771 | $6.55 |
| 32 | CLIP, TUBE (B14) | 90651-KM9-000 | $0.98 |
| 33 | CLAMP, TUBE (D12) | 91405-PD1-004 | $3.93 |
| 34 | SCREW-WASHER (5X8) | 93892-05008-10 | $0.47 |
| 35 | NUT, FLANGE (6MM) | 94050-06000 | $0.57 |
| 36 | CLIP, TUBE (B17) | 95002-02079 | $0.76 |
| 37 | CLIP, TUBE (B18) | 95002-02089 | $0.76 |
| 38 | CLIP, TUBE (B12.5) | 95002-02139 | $0.93 |
| 39 | BULK HOSE (3.5X1000) | 95005-35001-20M | $4.72 |
| 40 | BULK HOSE (3.5X8000) | 95005-35008-10M | $40.16 |
| 41 | TUBE (7X200) (USE P/N 95005-70 | 95005-70200-50 | $1.37 |
| 42 | BOLT, FLANGE (6X105) | 95801-06105-00 | $1.28 |
