Honda VTR 1000 SuperHawk partsfiche

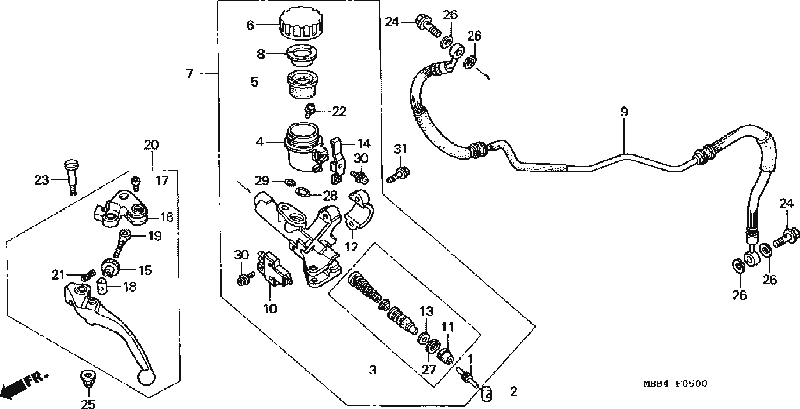

clutch master cylinder
| Part Number | Description | Part Number | Average Price
|
| 1
| ROD, PUSH
| 22884-MB0-006
| $12.65
|
| 2
| BUSH
| 22885-MB0-006
| $7.93
|
| 3
| PISTON SET
| 22886-MB0-305
| $41.27
|
| 4
| CUP, OIL
| 22887-MBB-006
| $22.27
|
| 5
| DIAPHRAGM
| 22888-MR7-006
| $9.27
|
| 6
| CAP, CLUTCH OIL CUP
| 22889-MR7-006
| $23.24
|
| 7
| M/CYL SUB-ASSY
| 22890-MBB-006
| $236.96
|
| 8
| PLATE, DIAPHRAGM
| 22890-MR7-006
| $7.15
|
| 9
| PIPE, CLUTCH
| 22900-MBB-000
| $127.07
|
| 10
| SWITCH ASSY., CLUTCH
| 35330-MB0-003
| $14.33
|
| 11
| BOOT
| 45504-410-003
| $7.45
|
| 12
| HOLDER
| 45517-166-006
| $8.31
|
| 13
| PLATE, STOPPER
| 45518-MB0-006
| $1.42
|
| 14
| PLATE, STOP
| 45535-MR8-901
| $3.44
|
| 15
| ADJUSTER, R.
| 53172-KV0-006
| $5.78
|
| 16
| KNOCKER, CLUTCH
| 53172-MJ4-701
| $16.09
|
| 17
| BOLT (5X5)
| 53177-KV0-006
| $2.69
|
| 18
| JOINT, LEVER
| 53179-KV0-006
| $2.84
|
| 19
| BOLT, ADJUSTING
| 53180-KV0-006
| $4.96
|
| 20
| LEVER, L. HANDLE
| 53180-MZ1-791
| $33.31
|
| 21
| SPRING, HANDLEBAR
| 53181-KV0-006
| $1.89
|
| 22
| SCREW, TRIPLE (4X11)
| 90101-MR7-006
| $1.80
|
| 23
| BOLT, R.
| 90114-MA5-671
| $5.78
|
| 24
| BOLT, OIL (10X22)
| 90145-MS9-612
| $4.25
|
| 25
| NUT, CAP (6MM)
| 90201-415-000
| $1.58
|
| 26
| WASHER, OIL BOLT
| 90545-300-000
| $1.95
|
| 27
| CIRCLIP (18MM)
| 90651-377-003
| $1.07
|
| 28
| O-RING (14.8X2.4)
| 91212-422-006
| $1.47
|
| 29
| O-RING (5.8X1.9)
| 91355-MG9-006
| $2.04
|
| 30
| SCREW-WASHER (4X12)
| 93893-04012-07
| $0.55
|
| 31
| BOLT, FLANGE (6X22)
| 96001-06022-07
| $0.93
|
