Honda VTR 1000 SuperHawk partsfiche

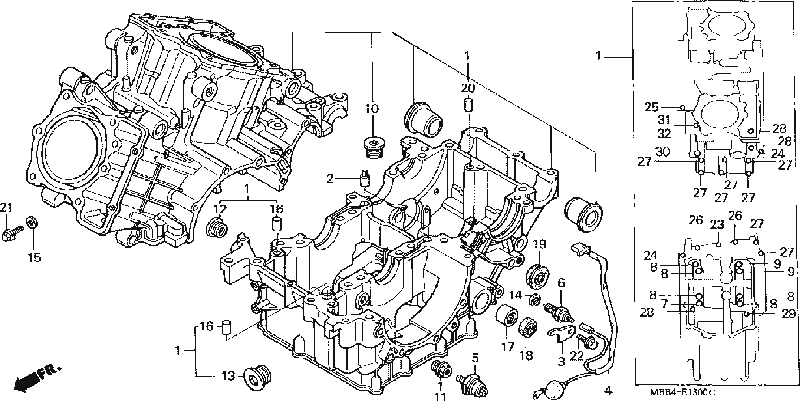

crankcase
| Part Number | Description | Part Number | Average Price
|
| 1
| CRANKCASE SET
| 11000-MBB-000
| $1,414.82
|
| 2
| ORIFICE (1.2MM)
| 11104-MW0-000
| $10.96
|
| 3
| PLATE, SPINDLE
| 24612-MAL-600
| $5.64
|
| 4
| SUB-WIRE, ENGINE
| 32111-MBB-000
| $15.00
|
| 5
| SWITCH, OIL PRESSURE
| 35500-MJ4-024
| $25.98
|
| 6
| SWITCH, NEUTRAL
| 35600-KE8-003
| $11.55
|
| 7
| BOLT-WASHER (10X80)
| 90001-MBB-003
| $4.27
|
| 8
| BOLT-WASHER (10X105)
| 90007-MBB-003
| $4.76
|
| 9
| BOLT-WASHER (10X115)
| 90009-MBB-003
| $4.60
|
| 10
| BOLT, SEALING (18MM)
| 90031-MBB-000
| $6.47
|
| 12
| BOLT, SEALING (22MM)
| 90081-ZV5-000
| $5.22
|
| 13
| BOLT, SEALING (24MM)
| 90083-PL9-000
| $6.33
|
| 14
| WASHER, NEUTRAL
| 90443-MJ6-000
| $1.09
|
| 15
| WASHER (6.5MM)
| 90463-ML7-000
| $1.82
|
| 16
| PIN, DOWEL (10X16)
| 90701-MV9-670
| $2.71
|
| 17
| BEARING (14X22X16)
| 91106-KM1-013
| $11.07
|
| 18
| OIL SEAL (14X22X5)
| 91203-KA4-771
| $2.42
|
| 19
| OIL SEAL (8X25X7)
| 91204-MG8-003
| $2.56
|
| 20
| PIN, DOWEL (8X14)
| 94302-08140
| $0.88
|
| 21
| BOLT, FLANGE (6X12)
| 95701-06012-07
| $0.52
|
| 22
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.57
|
| 23
| BOLT, FLANGE (6X35)
| 95701-06035-00
| $0.63
|
| 24
| BOLT, FLANGE (6X45)
| 95701-06045-00
| $0.82
|
| 25
| BOLT, FLANGE (6X65)
| 95701-06065-00
| $0.93
|
| 26
| BOLT, FLANGE (8X40)
| 95701-08040-00
| $0.77
|
| 27
| BOLT, FLANGE (8X50)
| 95701-08050-00
| $0.93
|
| 28
| BOLT, FLANGE (8X70)
| 95701-08070-00
| $1.02
|
| 29
| BOLT, FLANGE (8X80)
| 95701-08080-00
| $1.02
|
| 30
| BOLT, FLANGE (10X85)
| 95701-10085-00
| $1.95
|
| 31
| WASHER (8MM)
| 90442-028-000
| $1.00
|
| 32
| BOLT, FLANGE (8X75)
| 95701-08075-00
| $1.24
|
