Honda VTR 1000 SuperHawk partsfiche

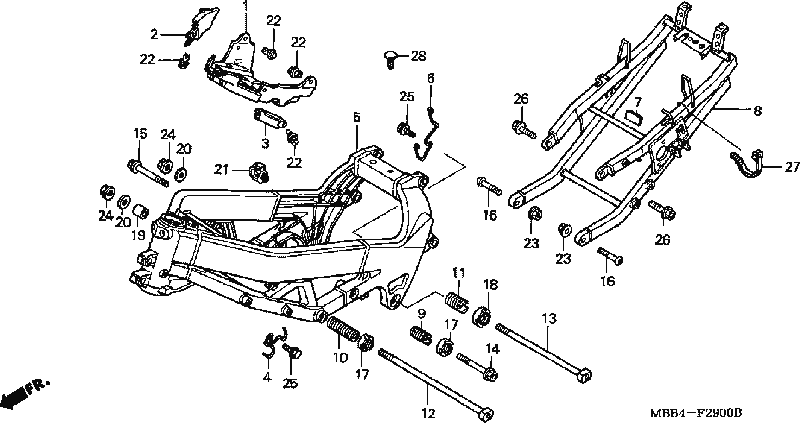

frame
| Part Number | Description | Part Number | Average Price
|
| 1
| GUARD, HEAT
| 19125-MBB-000
| $51.13
|
| 2
| COVER, R. HEAT GUARD
| 19126-MBB-000
| $10.89
|
| 3
| COVER, L. HEAT GUARD
| 19127-MBB-000
| $9.11
|
| 4
| CLAMP, CLUTCH HOSE
| 22910-MBB-000
| $3.89
|
| 5
| FRAME
| 50100-MBB-000
| $1,499.11
|
| 6
| CLAMP, WIRE HARNESS
| 50140-MBB-000
| $4.45
|
| 7
| FILM, FRAME PIPE
| 50159-KR3-300
| $2.33
|
| 8
| RAIL, SEAT
| 50240-MBB-000
| $192.75
|
| 9
| BOLT (20X61)
| 90116-MBB-000
| $9.93
|
| 10
| BOLT (20X7)
| 90117-MBB-000
| $13.11
|
| 11
| BOLT (22X39)
| 90119-MBB-000
| $9.60
|
| 12
| BOLT (12X354)
| 90126-MBB-000
| $21.44
|
| 13
| BOLT (12X249)
| 90127-MBB-000
| $19.27
|
| 14
| BOLT, FLANGE (10X90)
| 90128-MBB-000
| $7.07
|
| 15
| BOLT, FLANGE (10X75)
| 90129-MBB-000
| $6.47
|
| 16
| BOLT, SOCKET (10X42)
| 90152-MW0-000
| $3.91
|
| 17
| NUT, LOCK (20MM)
| 90201-MW0-000
| $11.00
|
| 18
| NUT, LOCK (22X2.0)
| 90310-MR7-000
| $14.04
|
| 19
| COLLAR, ENG HGR
| 90501-MBB-000
| $2.04
|
| 20
| WASHER (13X24)
| 90533-VM6-000
| $2.69
|
| 21
| CLAMP, HARNESS
| 90652-HC4-003
| $2.68
|
| 22
| CLIP, BODY
| 90683-MBW-003
| $1.38
|
| 22
| CLIP, BODY COVER
| 90683-GR1-003
| $1.73
|
| 23
| NUT, FLANGE (10MM)
| 94050-10000
| $0.78
|
| 24
| NUT, FLANGE (12MM)
| 94050-12000
| $0.76
|
| 25
| BOLT, FLANGE (6X12)
| 96001-06012-00
| $0.63
|
| 26
| BOLT, FLANGE (10X22)
| 96300-10022-00
| $0.98
|
| 27
| BAND, WIRE
| 90652-KT1-771
| $2.84
|
| 28
| CLIP
| 90651-MT3-000
| $1.49
|
