Honda VTR 1000 SuperHawk partsfiche

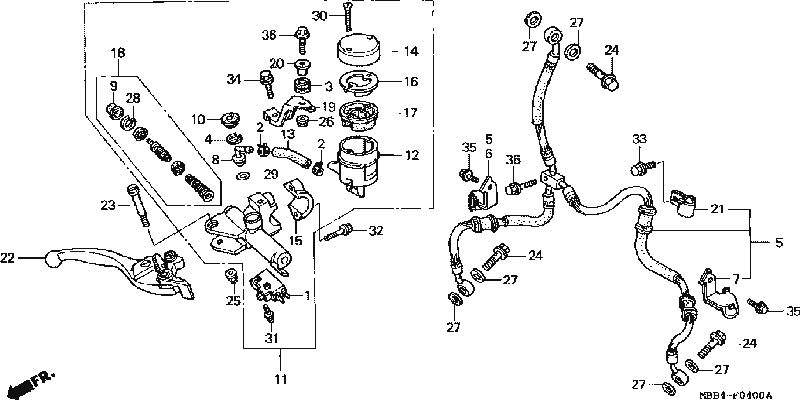

front brake master cylinder
| Part Number | Description | Part Number | Average Price
|
| 1
| SWITCH, FR. STOP
| 35340-MM5-600
| $12.45
|
| 2
| CLAMP
| 43514-KS6-701
| $9.40
|
| 3
| RUBBER
| 43516-HA2-000
| $2.84
|
| 4
| CIRCLIP, RR.
| 43517-KS6-701
| $2.42
|
| 5
| HOSE, FR. BRAKE
| 45125-MBB-003
| $64.65
|
| 6
| CLAMP, R. FR.
| 45157-MBB-000
| $8.09
|
| 7
| CLAMP, L. FR.
| 45158-MBB-000
| $8.09
|
| 8
| CONNECTOR
| 45503-KV3-006
| $5.76
|
| 9
| BOOT
| 45504-410-003
| $7.45
|
| 10
| COVER, DUST
| 45505-KV3-006
| $2.84
|
| 11
| M/CYL SUB-ASSY, FR.
| 45510-MW0-315
| $254.76
|
| 12
| CUP, OIL
| 45511-KV3-016
| $20.47
|
| 13
| HOSE
| 45512-MW0-006
| $4.22
|
| 14
| CAP, OIL CUP
| 45513-KV3-006
| $19.47
|
| 15
| HOLDER
| 45517-166-006
| $8.31
|
| 16
| PLATE, DIAPHRAGM
| 45518-KV3-006
| $6.47
|
| 17
| DIAPHRAGM
| 45520-KV3-006
| $7.76
|
| 18
| MASTER CYLINDER SET
| 45530-KV3-305
| $38.60
|
| 19
| STAY, FR.
| 45550-KY2-006
| $10.53
|
| 20
| COLLAR (6.3X13)
| 50324-425-010
| $3.22
|
| 21
| CLAMP, BRAKE HOSE
| 52115-ML8-670
| $3.15
|
| 22
| LEVER, R. HANDLE
| 53170-MBW-006
| $25.16
|
| 23
| BOLT, R.
| 90114-MA5-671
| $5.78
|
| 24
| BOLT, OIL (10X22)
| 90145-MS9-612
| $4.25
|
| 25
| NUT, CAP (6MM)
| 90201-415-000
| $1.58
|
| 26
| NUT, U (6MM)
| 90301-MG3-000
| $4.36
|
| 27
| WASHER, OIL BOLT
| 90545-300-000
| $1.95
|
| 28
| CIRCLIP
| 90651-MA5-671
| $1.69
|
| 29
| O-RING (14.8X2.4)
| 91212-422-006
| $1.47
|
| 30
| SCREW, FLAT (4X50)
| 93600-04050-1G
| $0.58
|
| 31
| SCREW-WASHER (4X12)
| 93893-04012-07
| $0.55
|
| 32
| BOLT, FLANGE (6X22)
| 96001-06022-07
| $0.93
|
| 33
| BOLT, FLANGE (6X10)
| 96300-06010-07
| $0.65
|
| 34
| BOLT, FLANGE (6X12)
| 96300-06012-07
| $0.65
|
| 35
| BOLT, FLANGE (6X14)
| 96001-06014-07
| $0.70
|
| 36
| BOLT, FLANGE (6X25)
| 96300-06025-07
| $0.92
|
