Honda VTR 1000 SuperHawk partsfiche

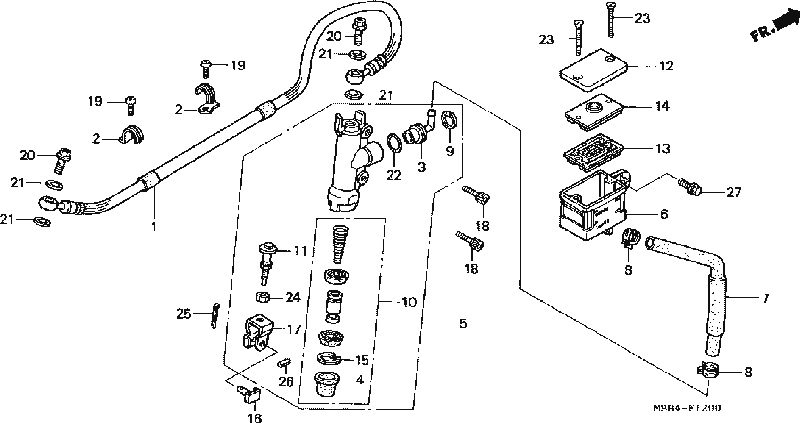

rear brake master cylinder
| Part Number | Description | Part Number | Average Price
|
| 1
| HOSE, RR. BRAKE
| 43310-MBB-003
| $32.96
|
| 2
| GUIDE, RR.
| 43468-KAE-000
| $3.45
|
| 3
| CONNECTOR
| 43503-KS6-701
| $6.18
|
| 4
| BOOT
| 43504-MB2-006
| $6.15
|
| 5
| M/CYL SUB-ASSY, RR.
| 43510-MAL-601
| $213.31
|
| 6
| CUP, OIL
| 43511-KV3-831
| $14.49
|
| 7
| HOSE
| 43512-MBB-006
| $6.31
|
| 8
| CLAMP
| 43514-KS6-701
| $9.40
|
| 9
| CIRCLIP, RR.
| 43517-KS6-701
| $2.42
|
| 10
| PISTON SET
| 43520-MB2-305
| $52.85
|
| 11
| ROD, PUSH
| 43530-MV9-006
| $20.40
|
| 12
| CAP, MASTER CYLINDER
| 45513-KK1-771
| $15.38
|
| 13
| DIAPHRAGM
| 45520-MG7-006
| $6.49
|
| 14
| PLATE, DIAPHRAGM
| 45521-HA2-006
| $6.64
|
| 15
| CIRCLIP
| 46182-500-013
| $2.23
|
| 16
| PIN, BRAKE ROD
| 46503-MAL-000
| $3.45
|
| 17
| JOINT, BRAKE ROD
| 46504-MAL-601
| $7.75
|
| 18
| SOCKET, BOLT (6X18)
| 90040-MN5-000
| $2.04
|
| 19
| SCREW, PAN (5X10)
| 90104-ML7-920
| $1.80
|
| 20
| BOLT, OIL (10X22)
| 90145-MS9-612
| $4.25
|
| 21
| WASHER, OIL BOLT
| 90545-300-000
| $1.95
|
| 22
| O-RING (14.8X2.4)
| 91212-422-006
| $1.47
|
| 23
| SCREW, FLAT (4X40)
| 93600-04040-1G
| $0.29
|
| 24
| NUT, HEX. (8MM)
| 94002-08000-0S
| $0.50
|
| 25
| PIN, COTTER (2.0X12)
| 94201-20120
| $0.37
|
| 26
| PIN, SPRING (2X10)
| 94305-20102
| $0.62
|
| 27
| BOLT, FLANGE (6X18)
| 96001-06018-00
| $0.70
|
