Honda VTR 1000 SuperHawk partsfiche

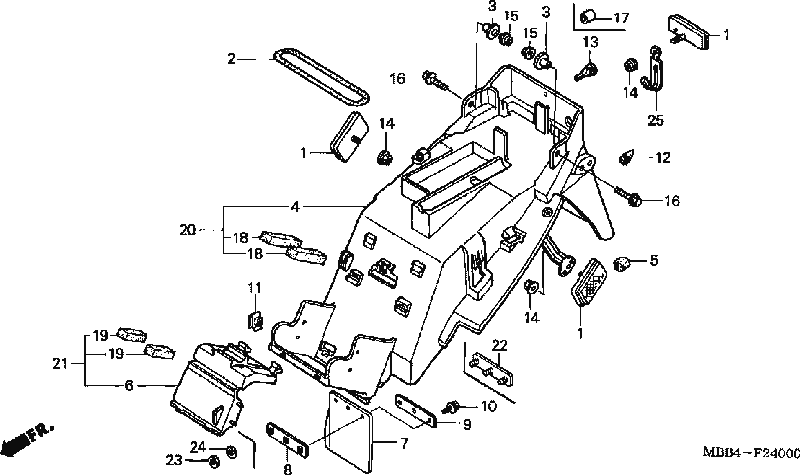

rear fender
| Part Number | Description | Part Number | Average Price
|
| 1
| REFLECTOR, REFLEX
| 33741-MS6-921
| $10.18
|
| 2
| BAND, U-LOCK
| 50290-MZ7-000
| $12.18
|
| 3
| WASHER, FR.
| 64348-086-000
| $2.18
|
| 4
| FENDER, RR.
| 80100-MBB-670
| $92.54
|
| 5
| MOLDING, RR. FENDER
| 80104-MV4-300
| $1.09
|
| 6
| COVER, BATTERY TRAY
| 80110-MBB-000
| $13.60
|
| 7
| MUDGUARD B, RR.
| 80115-MBB-010
| $6.82
|
| 8
| MUDGUARD, PLATE A
| 80116-MBB-000
| $1.64
|
| 9
| MUDGUARD, PLATE B
| 80117-MBB-000
| $2.76
|
| 10
| BOLT, FLANGE (4X10)
| 90123-MBB-000
| $1.55
|
| 11
| NUT, CLIP (6MM)
| 90301-KBH-000
| $3.67
|
| 12
| PLUG, CONE TYPE
| 90899-422-610
| $1.45
|
| 13
| STOPPER, FR.
| 91602-SL4-000
| $3.53
|
| 14
| NUT, FLANGE (5MM)
| 94050-05070
| $0.42
|
| 15
| NUT, CAP (6MM)
| 90201-415-000
| $1.58
|
| 15
| NUT, FLANGE (6MM)
| 94050-06000
| $0.57
|
| 16
| BOLT, FLANGE (6X16)
| 96001-06016-00
| $0.62
|
| 17
| TUBE (8X17)
| 90504-MBB-000
| $1.08
|
| 18
| RUBBER, TANK
| 17514-HC0-310
| $8.18
|
| 19
| RUBBER
| 61313-GJ1-000
| $2.98
|
| 20
| FENDER, RR.
| 80100-MBB-A20
| $119.61
|
| 21
| COVER, BATTERY TRAY
| 80110-MBB-D40
| $12.89
|
| 22
| PLATE B, MUDGUARD
| 80117-MBB-D40
| $2.04
|
| 23
| NUT, HEX. (4MM)
| 94001-04000-0S
| $0.38
|
| 24
| WASHER, PLAIN (4MM)
| 94103-04000
| $0.29
|
| 25
| CLIP
| 91411-679-000
| $6.60
|
