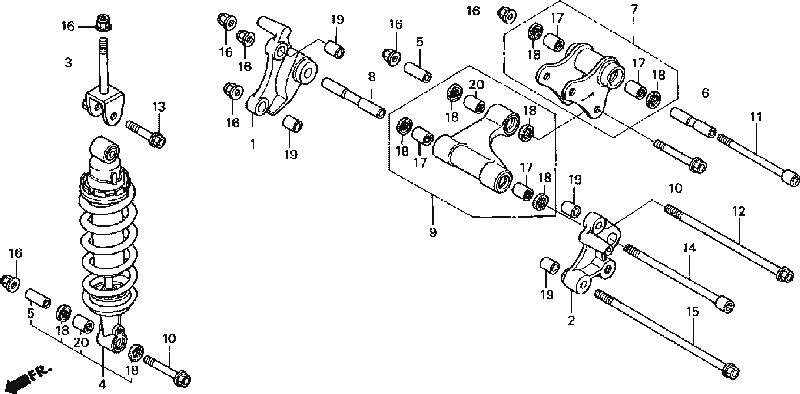

Honda VTR 1000 SuperHawk partsfiche
rear shock absorber
| Part Number | Description | Part Number | Average Price
|
| 1
| BRACKET, R. CUSHION
| 50110-MBB-000
| $41.45
|
| 2
| BRACKET, L. CUSHION
| 50111-MBB-000
| $41.45
|
| 3
| BRACKET, RR. CUSHION
| 50233-MBB-000
| $9.02
|
| 4
| CUSHION ASSY., RR.
| 52400-MBB-D41
| $388.20
|
| 4
| SHOCK ABSORBER, RR.
| 52400-MBB-003
| $408.56
|
| 5
| COLLAR
| 52463-MAL-G00
| $7.16
|
| 6
| COLLAR, CUSHION ARM
| 52463-MBB-000
| $6.73
|
| 7
| ARM SUB-ASSY.
| 52465-MBB-000
| $68.13
|
| 8
| COLLAR
| 52473-MBB-000
| $9.65
|
| 9
| ROD SUB-ASSY.
| 52475-MBB-000
| $77.16
|
| 10
| BOLT, FLANGE (10X62)
| 90101-MBB-000
| $2.55
|
| 11
| BOLT (10X110)
| 90102-MBB-000
| $8.56
|
| 12
| BOLT, FLG (10X190)
| 90103-MBB-000
| $9.00
|
| 13
| BOLT, FLANGE (10X49)
| 90107-MBB-000
| $2.55
|
| 14
| BOLT (10X148)
| 90108-MBB-000
| $9.60
|
| 15
| BOLT, FLG (10X213)
| 90111-MBB-000
| $7.71
|
| 16
| NUT, U (10MM)
| 90304-GE8-003
| $2.96
|
| 17
| BEARING (17X24X20)
| 91072-KT7-003
| $15.87
|
| 18
| DUST SEAL (17X24X5)
| 91262-KV3-831
| $3.91
|
| 19
| PIN A, DOWEL (12X16)
| 94301-12160
| $1.05
|
| 20
| BEARING, NEEDLE
| 91071-KV3-005
| $16.84
|
