Honda VTR 1000 SuperHawk partsfiche

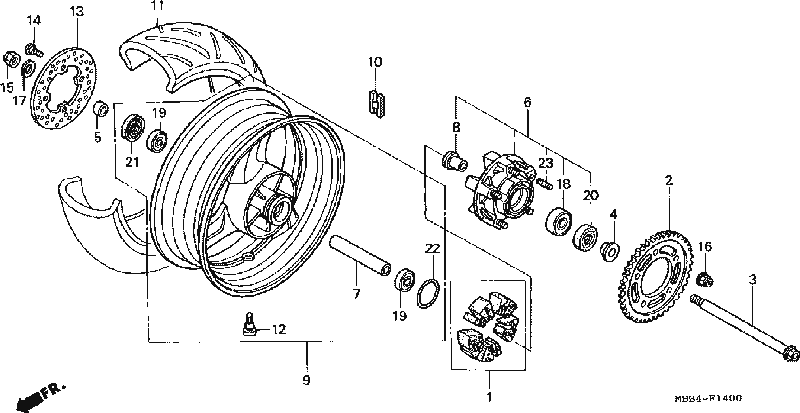

rear wheel
| Part Number | Description | Part Number | Average Price
|
| 1
| DAMPER SET, WHEEL
| 06410-MBB-000
| $26.56
|
| 2
| SPROCKET (41T)
| 41201-MBB-000
| $57.40
|
| 3
| AXLE, RR. WHEEL
| 42301-MAS-000
| $37.49
|
| 4
| COLLAR, L. RR.
| 42311-MAL-601
| $15.00
|
| 5
| COLR, RR. BRAKE SIDE
| 42312-MAE-010
| $12.47
|
| 6
| FLANGE SUB-ASSY.
| 42615-MBB-000
| $134.35
|
| 7
| COLLAR, RR.
| 42620-MW0-010
| $18.47
|
| 8
| COLLAR B, RR.
| 42625-MAS-000
| $12.15
|
| 9
| WHEEL SUB-ASSY., RR.
| 42650-MBB-000
| $626.42
|
| 9
| WHEEL SUB (TYPE2)
| 42650-MBW-D00ZA
| $595.20
|
| 10
| WEIGHT (10G)
| 42704-MB0-000
| $8.35
|
| 10
| WEIGHT (20G)
| 42705-MB0-000
| $8.35
|
| 10
| WEIGHT (30G)
| 42706-MB0-000
| $8.35
|
| 11
| TIRE (180/55ZR17)
| 42711-MBB-004
| $198.60
|
| 12
| VALVE, RIM
| 42753-ML7-004
| $7.80
|
| 13
| DISK, RR. BRAKE
| 43251-KEA-000
| $160.56
|
| 14
| BOLT (8X24)
| 90105-MBB-000
| $3.91
|
| 15
| NUT, U (18MM)
| 90305-KZ4-891
| $9.20
|
| 16
| NUT, FLANGE (12MM)
| 90306-KF0-003
| $3.15
|
| 17
| WASHER (20X31.5X2)
| 90401-MAS-000
| $2.07
|
| 18
| BEARING (63/22)
| 91051-MAS-003
| $24.49
|
| 19
| BEARING (6204UU)
| 91052-MAE-004
| $16.85
|
| 20
| DUST SEAL
| 91252-MAS-003
| $7.42
|
| 22
| O-RING (61X2)
| 91302-MA6-003
| $3.33
|
| 23
| BOLT, STUD (12X28)
| 92918-12028-0E
| $1.95
|
