Honda VTR 1000 SuperHawk partsfiche

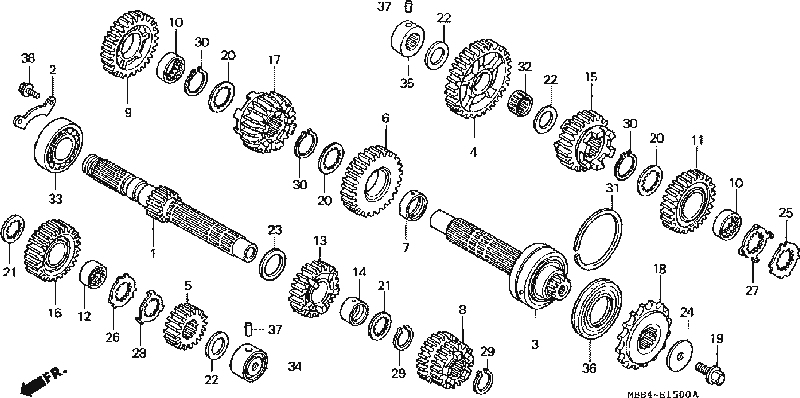

transmission
| Part Number | Description | Part Number | Average Price
|
| 1
| MAINSHAFT
| 23211-MBB-000
| $124.20
|
| 2
| PLATE
| 23212-MV9-670
| $6.16
|
| 3
| COUNTERSHAFT
| 23220-MBB-000
| $156.33
|
| 4
| GEAR (41T)
| 23421-MBB-000
| $89.91
|
| 5
| GEAR (16T)
| 23431-MBB-000
| $35.96
|
| 6
| GEAR (29T)
| 23441-MBB-000
| $81.73
|
| 7
| COLLAR (30X11.2)
| 23442-MS2-610
| $13.67
|
| 8
| GEAR (21T/29T)
| 23451-MBB-000
| $98.04
|
| 9
| GEAR (30T)
| 23461-MBB-000
| $81.73
|
| 10
| COLR, SPLINE (30X11)
| 23462-MAT-000
| $13.25
|
| 11
| GEAR (35T)
| 23481-MBB-000
| $73.55
|
| 12
| COLLAR (28X13.5)
| 23482-MR7-000
| $17.82
|
| 13
| GEAR (25T)
| 23491-MBB-000
| $73.55
|
| 14
| COLLAR (28X13)
| 23495-MM5-000
| $13.25
|
| 15
| GEAR (27T)
| 23501-MBB-000
| $88.27
|
| 16
| GEAR (26T)
| 23511-MBB-000
| $73.55
|
| 17
| GEAR (25T)
| 23521-MBB-000
| $89.91
|
| 18
| SPROCKET (16T)
| 23801-ML7-920
| $34.11
|
| 19
| BOLT, SPECIAL (10MM)
| 90037-422-003
| $4.67
|
| 20
| WASHER (30X36X1.5)
| 90452-MAT-000
| $1.95
|
| 21
| WASHER (28X34X1.5)
| 90452-MR7-000
| $3.69
|
| 22
| WASHER B (22MM)
| 90455-ML7-000
| $3.15
|
| 23
| WASHER (28MM)
| 90458-729-920
| $3.15
|
| 24
| WASHER (10.2MM)
| 90459-438-000
| $3.76
|
| 25
| WASHER (30MM)
| 90463-MAT-000
| $2.67
|
| 26
| WASHER (28MM)
| 90463-MR7-000
| $6.22
|
| 27
| WASHER, LOCK (30MM)
| 90464-MAT-000
| $3.91
|
| 28
| WASHER, LOCK (28MM)
| 90464-MR7-000
| $6.22
|
| 29
| CIRCLIP (28MM)
| 90602-MM5-000
| $2.33
|
| 30
| CIRCLIP (30MM)
| 90604-MM5-000
| $2.84
|
| 31
| RING, SNAP (72MM)
| 90605-MM5-000
| $5.20
|
| 32
| BEARING (22X26X13)
| 91001-MB6-680
| $18.82
|
| 33
| BEARING (28X62X16)
| 91004-MAT-000
| $10.95
|
| 34
| BEARING (22X38X16)
| 91022-MBB-003
| $17.53
|
| 35
| BEARING (22X38X19.3)
| 91025-MBB-003
| $24.24
|
| 36
| OIL SEAL (39X72X8)
| 91207-MBB-003
| $7.84
|
| 37
| PIN, DOWEL (8X10)
| 94302-08100
| $0.88
|
| 38
| BOLT, FLANGE (6X14)
| 95701-06014-00
| $0.57
|
