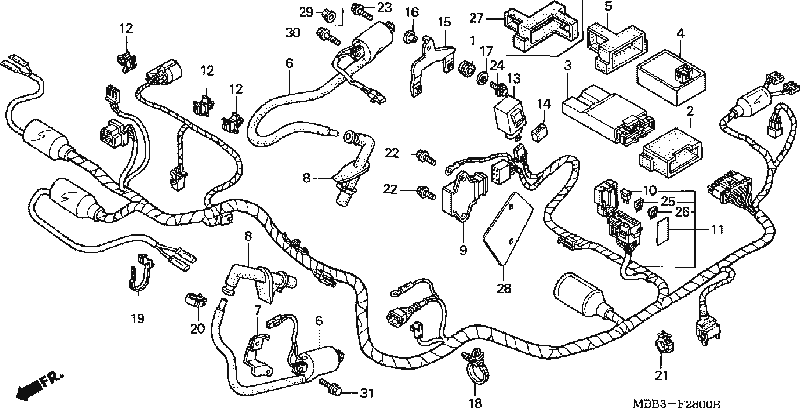

wire harness
| Part Number | Description | Part Number | Average Price |
|---|---|---|---|
| 1 | GROMMET A, RR. COVER | 11344-MB0-000 | $2.09 |
| 2 | CUSHION, SPARK UNIT | 30405-MBT-610 | $8.29 |
| 2 | RUBBER, SPARK UNIT | 30405-MT6-000 | $15.65 |
| 3 | MODULE, IGN CONT | 30410-MBB-671 | $440.62 |
| 4 | CONVERTER UNIT | 30450-MBB-E31 | $447.68 |
| 4 | MODULE ASSY. | 30450-MBB-640 | $458.74 |
| 5 | SUSPENSION | 30455-MR7-000 | $16.80 |
| 6 | COIL, IGNITION | 30501-MBB-641 | $48.49 |
| 7 | STAY, IGNITION COIL | 30513-MBB-000 | $5.67 |
| 8 | CAP ASSY. | 30700-MBB-640 | $16.15 |
| 9 | RECTIFIER, REGULATE | 31600-MV4-000 | $194.18 |
| 9 | RECTIFIER, REGULATOR | 31600-KPJ-670 | $129.95 |
| 10 | DIODE, THREE-WAY | 31730-MAS-601 | $6.91 |
| 11 | WIRE HARNESS | 32100-MBB-670 | $301.91 |
| 12 | CLIP, WIRE HARNESS | 32171-GJ1-003 | $1.50 |
| 13 | RELAY, TURN SIGNAL | 38301-KK9-952 | $37.71 |
| 14 | SUSPENSION | 38306-KK4-000 | $2.47 |
| 15 | STAY, RR. | 50260-MBB-000 | $8.16 |
| 16 | COLLAR, LOCK SETTING | 83119-MG9-000 | $3.73 |
| 17 | WASHER (6MM) | 90485-286-000 | $1.22 |
| 18 | STRAP (105MM) *NH1* | 90672-SB2-003 | $2.33 |
| 19 | CLIP (25MM) | 90690-GHB-611 | $1.60 |
| 19 | CLIP, CABLE (20MM) | 90690-GHB-661 | $1.60 |
| 20 | CLIP, CABLE (10MM) | 90690-GHB-641 | $1.60 |
| 21 | CLIP, CABLE (25MM) | 90690-GHB-671 | $1.60 |
| 21 | CLIP, CABLE (30MM) | 90690-GHB-681 | $1.84 |
| 22 | BOLT, FLANGE (6X14) | 96001-06014-00 | $0.70 |
| 22 | BOLT, FLANGE (6X20) | 96001-06020-00 | $0.70 |
| 24 | BOLT, FLANGE (6X22) | 96001-06022-00 | $0.91 |
| 24 | BOLT, FLANGE (6X25) | 96001-06025-00 | $0.83 |
| 25 | FUSE F (10A) | 98200-41000 | $0.50 |
| 26 | FUSE F (20A) | 98200-42000 | $0.50 |
| 27 | SUSPENSION | 30455-MCF-000 | $13.62 |
| 28 | SPACER | 31605-MBB-E30 | $5.40 |
| 29 | NUT, FLANGE (6MM) | 94050-06000 | $0.57 |
| 30 | BOLT, FLANGE (6X18) | 95700-06018-00 | $0.57 |
| 30 | BOLT, FLANGE (6X20) | 96001-06020-00 | $0.70 |
| 31 | BOLT, FLANGE (6X25) | 96001-06025-00 | $0.83 |
