1988-91 Honda Hawk GT partsfiche

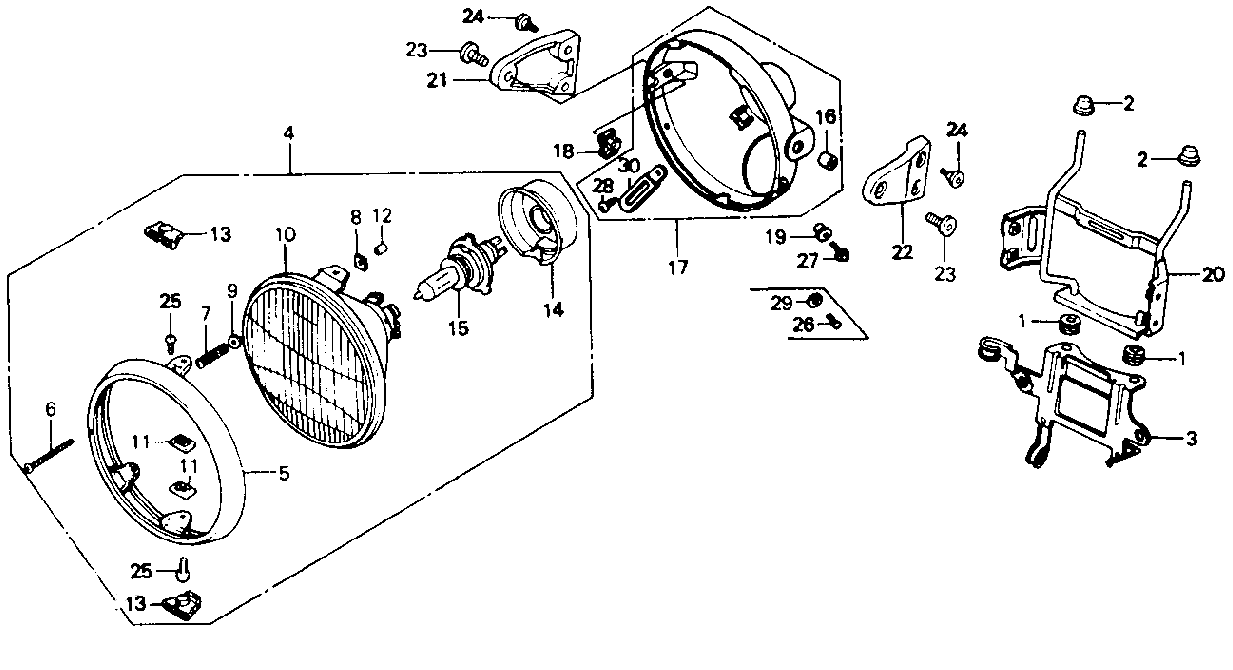

headlight
| no. | description | part number | typical price
|
|---|
| 1
| RUBBER
| 19038-ME9-000
| $1.94
|
| 2
| RUBBER
| 19113-MB1-870
| $1.94
|
| 3
| STAY, FUSE BOX
| 32453-MN8-000
| $12.78
|
| 4
| HDLT (12V 60/55W)
| 33100-MN8-673
| $186.55
|
| 5
| RIM, HEADLIGHT
| 33101-MN8-671
| $30.37
|
| 6
| SCREW, BEAM ADJ.
| 33103-MN8-671
| $2.71
|
| 7
| SPRING
| 33107-MN8-671
| $0.86
|
| 8
| NUT
| 33117-001-023
| $1.43
|
| 9
| WASHER
| 33119-371-003
| $1.37
|
| 10
| HEADLIGHT UNIT
| 33120-KV0-701
| $63.48
|
| 11
| NUT, UNIT HOLDER
| 33128-292-670
| $1.49
|
| 12
| COVER, SCREW
| 33136-426-830
| $1.02
|
| 13
| COVER
| 33137-MF5-841
| $2.57
|
| 14
| COVER, RUBBER
| 33112-MM9-013
| $5.62
|
| 15
| BULB (12V60/55W)
| 34901-MC7-601AH
| $5.49
|
| 16
| COLR, HEADLIGHT CASE
| 61302-KE5-000
| $1.68
|
| 17
| CASE, HEADLIGHT
| 61302-MK4-630
| $62.11
|
| 18
| NUT, HEADLIGHT CASE
| 61303-MK4-630
| $2.40
|
| 19
| COLLAR
| 61304-379-690
| $5.62
|
| 20
| STAY, HEADLIGHT
| 61311-MN8-000
| $83.71
|
| 21
| PLATE, R. HEADLIGHT
| 61312-MN8-000
| $33.51
|
| 22
| PLATE, L. HEADLIGHT
| 61313-MN8-000
| $33.51
|
| 23
| BOLT, RR. (8X22)
| 90105-ML0-730
| $3.42
|
| 24
| SCREW, PAN (6X14)
| 90113-MM5-000
| $1.80
|
| 25
| SCREW, PAN (5X8)
| 93500-05008-0H
| $0.34
|
| 26
| SCREW, PAN (5X16)
| 93500-05016-0G
| $0.34
|
| 27
| SCREW-WASHER (5X16)
| 93892-05016-07
| $0.45
|
| 28
| SCREW, TAP (4X10)
| 93903-34220
| $0.34
|
| 29
| WASHER, SPRING (5MM)
| 94111-05700
| $0.35
|
| 30
| CLIP (4X100)
| 94591-41000
| $2.20
|
